15

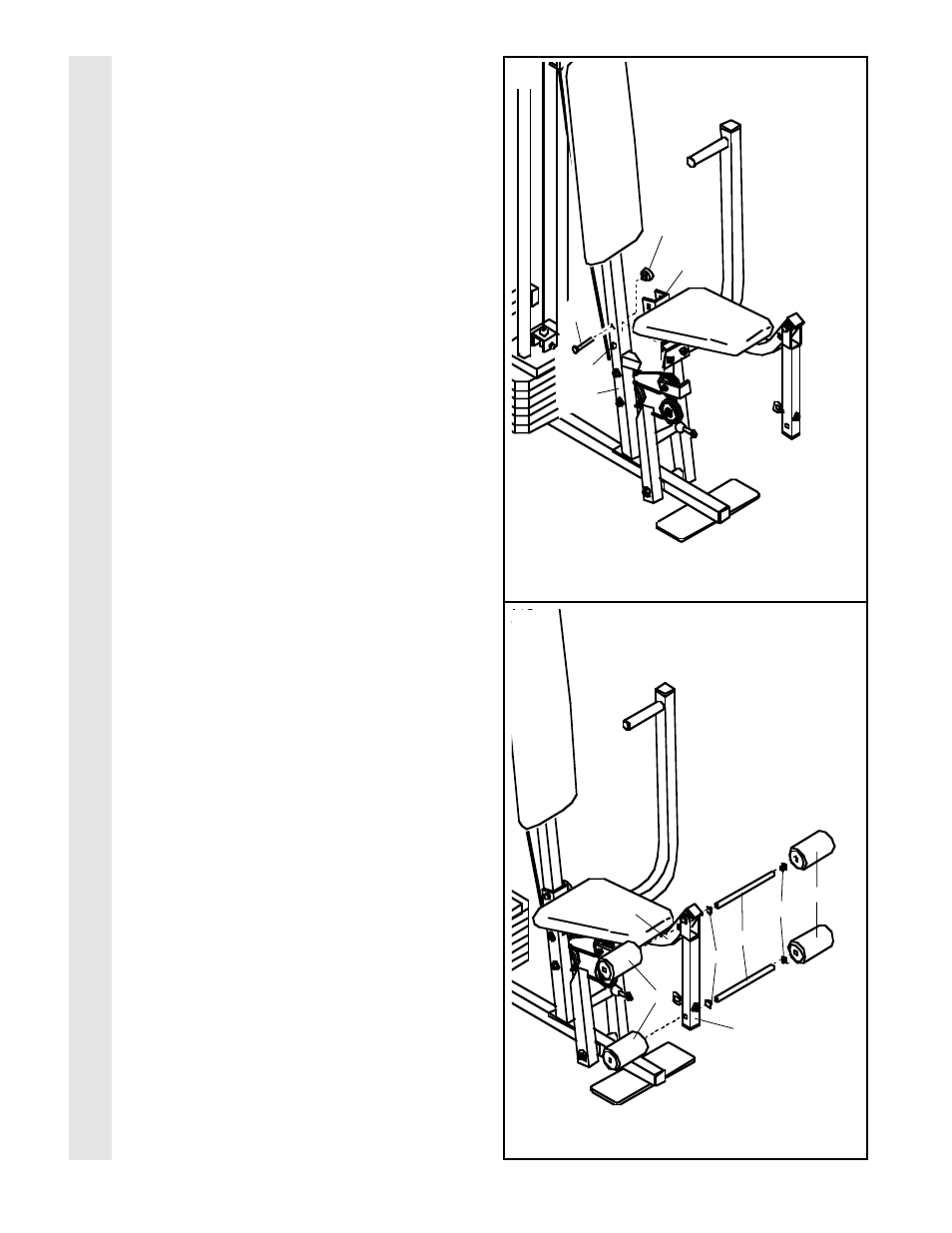

29. Rest the Seat Frame (36) on the indicated pin
in the Front Upright (42). Attach the Seat
Frame to the Front Upright with a 5/16” x
2 3/4” Carriage Bolt (14) and the Seat Knob
(40).
30. Press 3/4” Round Inner Caps (34) into the
ends of both 12 1/2” Pad Tubes (28).
Insert one 12 1/2” Pad Tube (28) into the
Seat Frame (36). Slide a 5 1/2” Pad (30) onto
each end of the Pad Tube.
Insert the other 12 1/2” Pad Tube (28) into the
Leg Lever (29). Slide a 5 1/2” Pad (30) onto
each end of the Pad Tube.
29
30
36
40
30
34
28
34
29
30
36
SEA
T ASSEMBL
Y
Pin
42
14
