Water Boss Series 255 - Manual (Page 24)

24
Splicing the Low Voltage
Transformer Cord
1. Strip insulation from wire 5/16 inch (8 mm) from wire
end.
2. Insert stripped wire into barrel of connector and
crimp. For best results, crimp twice per wire as
shown in Figure 19.
Splice connectors or extension wire is not supplied.
They are available at hardware or electrical stores.

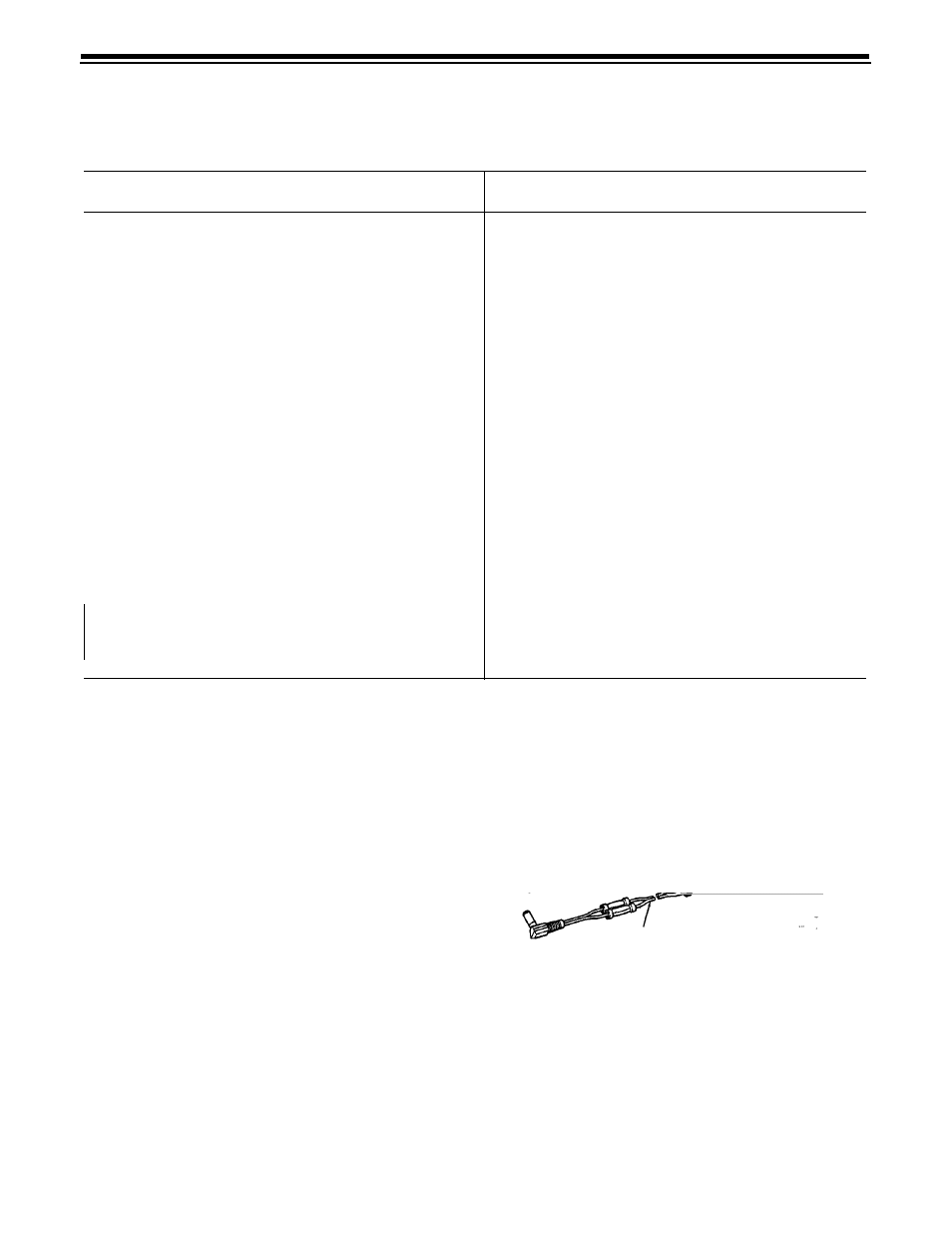

Figure 19
Code
Part
No. Description Qty. Code
Part
No. Description Qty.
1 1040769 Bypass Assembly 1 1 Kit Piping Boss (includes hardware): 1
2 1040524 Bypass Install Kit 1 1040277 3/4-inch NPT, Brass
* Tube and Pipe Adapters 1040278 1-inch NPT, Brass
1001606 3/4-inch Copper Tube Adapter Kit 1 1040281 3/4-inch BSPT, Brass
1001670 1-inch Copper Tube Adapter Kit 1 1040282 1-inch BSPT, Brass
1001608 22-mm Copper Tube Adapter Kit 1 1040279 3/4-inch NPT, Noryl
1001609 28-mm Copper Tu be Adapter Kit 1 1040280 1-inch NPT, Noryl
1001613 3/4-inch CPVC Tube Adapter Kit 1 1040283 3/4-inch BSPT, Noryl
1001614 1-inch CPVC Tube Adapter Kit 1 1040284 1-inch BSPT, Noryl
1001615 25-mm CPVC Tube Adapter Kit 1 2 1040339 Piping Boss Install Kit 1
1001769 3/4-inch NPT Plastic Pipe Adapter Kit 1
1001603 1-inch NPT Plastic Pipe Adapter Kit 1
1001604 3/4-inch BSPT Plastic Pipe Adapter Kit 1
1001605 1-inch BSPT Plastic Pipe Adapter Kit 1 3 960 Electronic Timer 1
1001611 3/4-inch BSPT Brass Pipe Adapter Kit 1
1001610 1-inch NPT Brass Pipe Adapter Kit 1
1001612 1-inch BSPT Brass Pipe Adapter Kit 1
4 Wall-Mount Transformer 1
1000810 100V Japanese Plug
1000811 120V North American Plug
1 1032350 Kit, Meter Adapter 1 1000812 220V Australian Plug
2 1032351 Meter Adapter Installation Kit 1 1000813 220V British Plug
1000814 220V European Plug
Splice Connector (22-18 AWG)
50 feet maximum (15.2 m) 18 AWG solid or
stranded insulated copper wire
Piping Boss
Meter Adapter
960 Control
Wall-Mount Transformer
*Not shown
Bypass Valve
