Install the Cooktop
Remove the cooktop, gas pressure regulator, burner
grates and burner caps from the shipping package.
Lower the cooktop into the countertop cut-out opening.
Center the cooktop in the opening and check that the
front edge of cooktop is parallel to the front edge of the
countertop. Check that all required clearances are met.
Using a pencil, outline the rear edge of the cooktop frame
on the countertop. Remove the cooktop from the counter-
top opening.
IMPORTANT NOTE: When repositioning the cooktop in the
countertop opening, lift the entire cooktop up from the
opening to prevent scratching the countertop.
Apply the foam strip, included in the hardware package,
to the underside of the cooktop frame. Refer to the illus-
tration below.
Reinsert the cooktop into the countertop opening. Align
the rear edge of the cooktop frame with the pencil line and
check that it is parallel to the front edge of the countertop.
Lift the entire cooktop to make adjustments.
Attach the brackets to the bottom of the unit. Insert the
3 1 / 2 " (89) clamping screws into the brackets. Use a screw-
driver to tighten the clamping screws against the under-
side of the countertop. Refer to the illustration below. Do
not overtighten screws.
IMPORTANT NOTE: Do not seal the cooktop to the coun-
tertop. It must be removed if service is necessary.
GAS PRESSURE REGULATOR
Install the gas pressure regulator with the arrow on the
regulator pointing up toward the unit and in a position
where you can reach the access cap. Refer to the illustra-
tion below.
IMPORTANT NOTE: All connections must be wrench-tight-
ened. Do not make connections to the regulator too tight,
as this may crack the regulator and cause a gas leak. Do
not allow the regulator to turn on the pipe when tightening
fittings.

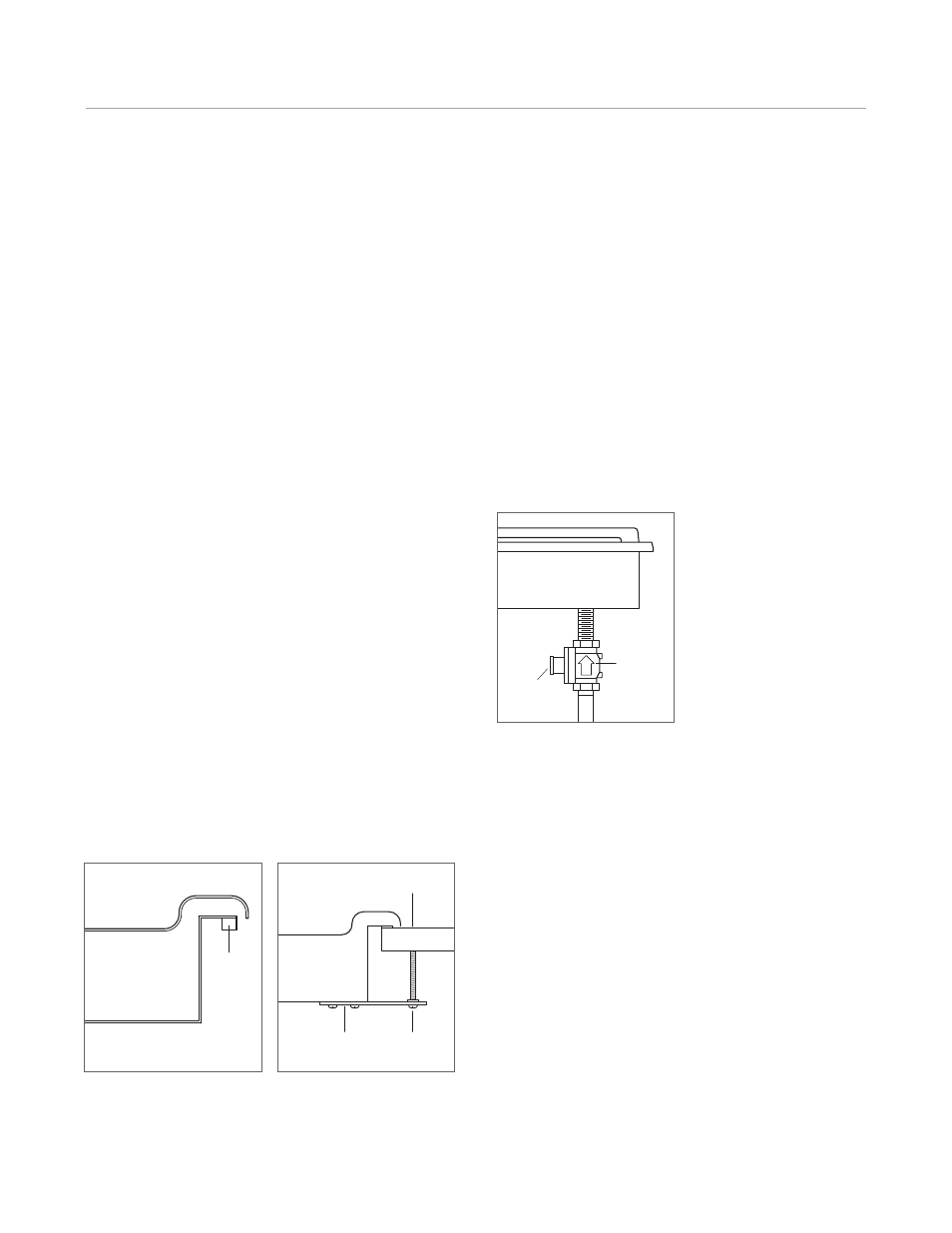

FOAM
STRIP COOKTOP
BURNER BOX
Foam strip. Bracket.
COUNTERTOP
COOKTOP
CLAMPING
SCREW
BRACKET
COOKTOP
ACCESS
CAP
ARROW
POINTS UP
Gas pressure regulator.
