Wolf Pro Wall User Manual
Page 5
5
Dimensions in parentheses are in
millimeters unless otherwise specified.
I N S TA L L AT I O N
I N S T R U C T I O N S
E L E C T R I C A L
R E Q U I R E M E N T S
Wolf Pro wall chimney ventilation hoods
require a separate, grounded 110/120 V AC,
60 Hz power supply. The service should have
its own 15 amp circuit breaker. Locate the
electrical supply through the top of the hood
as shown in the Installation Specifications
illustration below. Refer to Install Wiring on
pages 12–13.
You must follow all National Electrical Code
regulations. In addition, be aware of local
codes and ordinances when installing your
service.

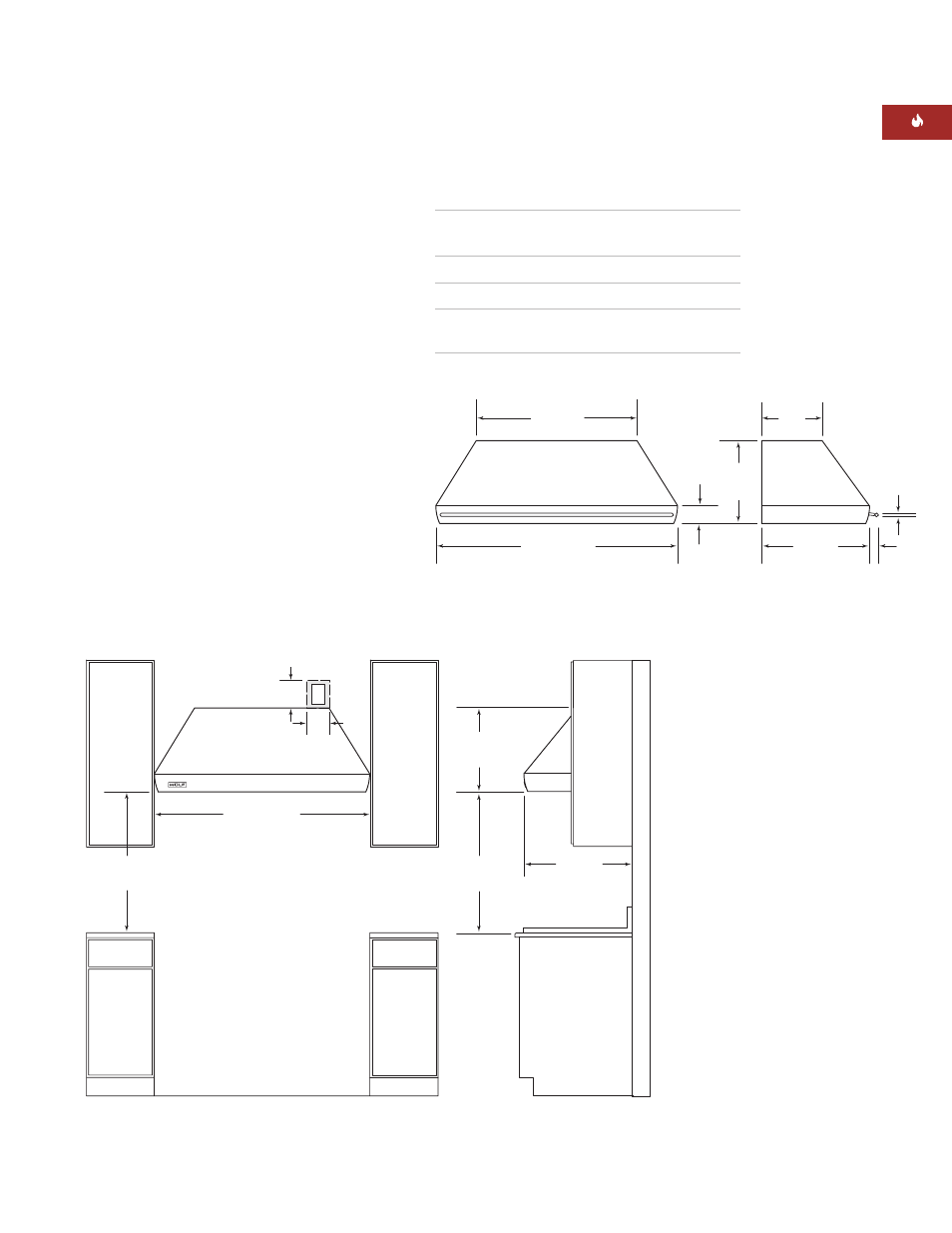

I N S TA L L AT I O N
S P E C I F I C A T I O N S
TOP WIDTH
SUBTRACT 18" (457) FROM OVERALL WIDTH
OVERALL WIDTH
4"
(102)
13
1
/
2
"
(343)
24"
(610)
OVERALL DEPTH
18"
(457)
OVERALL
HEIGHT
2"
(51)
3
/
4
"
(19)
DIAMETER
OF RAIL
OV E R A L L
D I M E N S I O N S
P R O W A L L C H I M N E Y H O O D S
Overall Widths
36" (914), 42" (1067),
48" (1219), and 54" (1372)
Overall Height
18" (457)
Overall Depth (excluding rail)
24" (610)
Shipping Weight (shell only)
67–126 lbs
(30–57 kg)
Unit dimensions may vary to ±
1
/
8
" (3).
Pro wall chimney hood shown with (R) rail option.
E
6"
(152)
5"
(127)
LOCATION OF
ELECTRICAL
30"
TO
36"
(762–914)
TO COUNTERTOP
30"
TO
36"
(762–914)
TO COUNTERTOP
18"
(457)
HEIGHT
OF HOOD
24"
(610)
DEPTH OF HOOD
WIDTH OF HOOD
NOTE: Pro wall chimney hoods have a vertical discharge.
