4
2. Connect wires beneath terminal screws on subbase
using wiring schematic for your particular application
(see figs. 3 through 6).
3. Place subbase over hole in wall and mark mounting
hole locations on wall using subbase as a template.
4. Move subbase out of the way. Drill mounting holes.
5. Fasten subbase loosely to wall, as shown in fig. 3,
using two mounting screws. Place a level against
bottom of subbase, adjust until level, and then tighten
screws. (Leveling is for appearance only and will not
affect thermostat operation.) If you are using existing
mounting holes, or if holes drilled are too large and do
not allow you to tighten subbase snugly, use plastic
expansion plugs to secure subbase.
6. Push excess wire into wall and plug hole with a fire-
resistant material (such as fiberglass insulation) to
prevent drafts from affecting thermostat operation.
Mounting
Hole
Pull wires through
this opening
Connect wires under
terminal screws
Mounting
Hole
4-pin Connector
9-pin Connector
Y1
C
G
W1
R
Expansion
Plugs

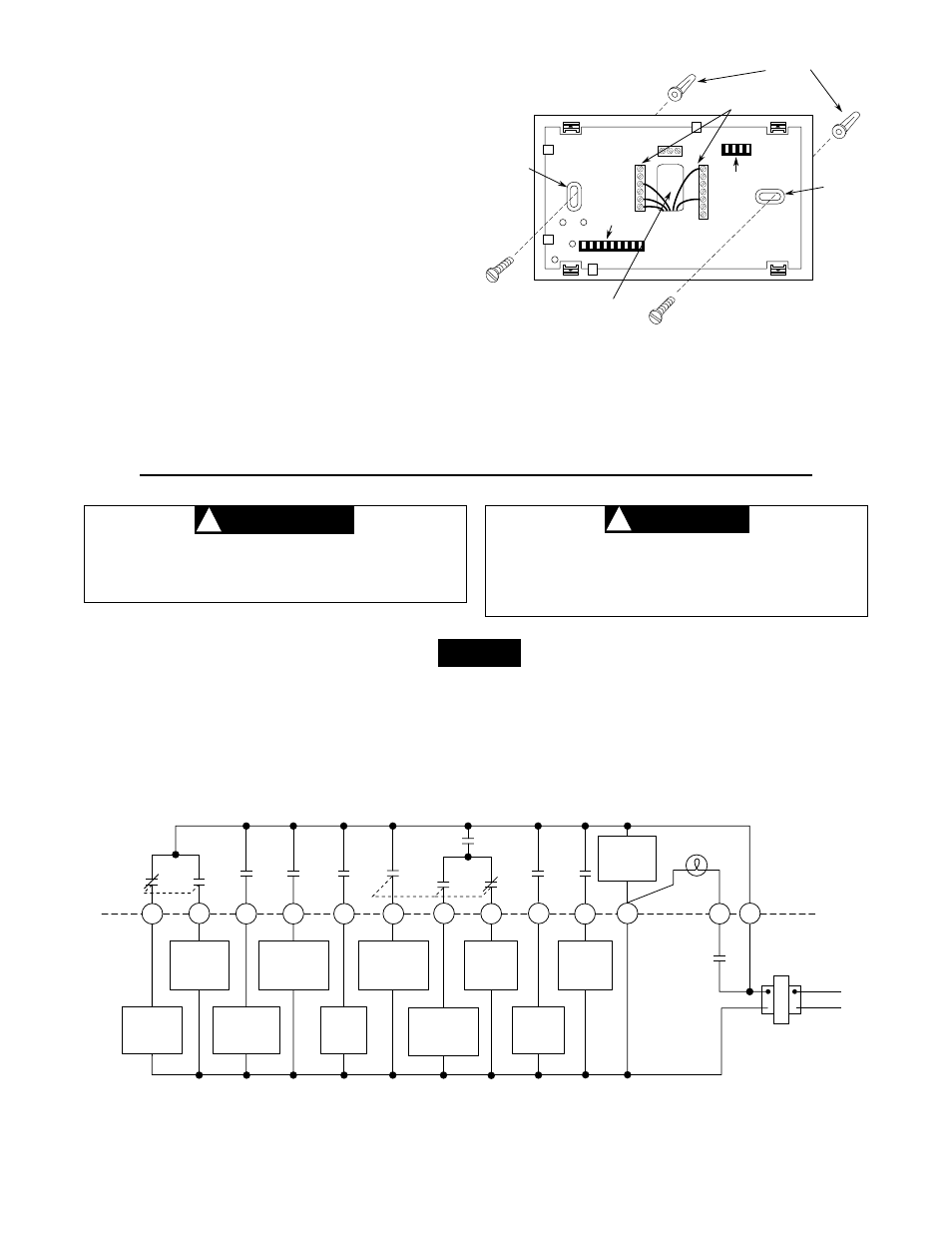

Figure 3. Subbase
S1 S2 S3
O
B
Y2
W2
W3
E1
E2
L
DO NOT EXCEED MAXIMUM VOLTAGE OR CUR-
RENT RATINGS. FIRE, PERSONAL INJURY, AND/
OR EQUIPMENT DAMAGE COULD RESULT. To prevent electrical shock and/or equipment
damage, disconnect electrical power at the main
fuse box until installation is complete. Verify
power is off with a voltmeter.
WARNING !
The following wiring diagrams show typical terminal
identification and wiring. For proper installation, refer to
the original manufacturers' instructions.
NOTE
L C R G B O
Changeover
Energized
In Heat
Changeover
Energized
In Cool
Compressor
Contactor
Stage 1
Fan
Relay
Heat
Relay
Stage 1
Heat
Relay
Stage 2
Heat
Relay
Stage 3
Thermostat
Control
Circuit
Compressor
Contactor
Stage 2
24vAC 120vAC
Hot
Neutral
THERMOSTAT
SYSTEM
Y1 Y2 W1 W2 W3
Figure 4. Typical Wiring Diagram for Single Transformer Systems
E1
Emergency
Relay
Constant
Output
E2
Emergency
Relay
Switched
Output
TRANSFORMER
Malfunction
Light
System
Monitor
Switch
CAUTION !
