18
8. MONITOR DISPLAY

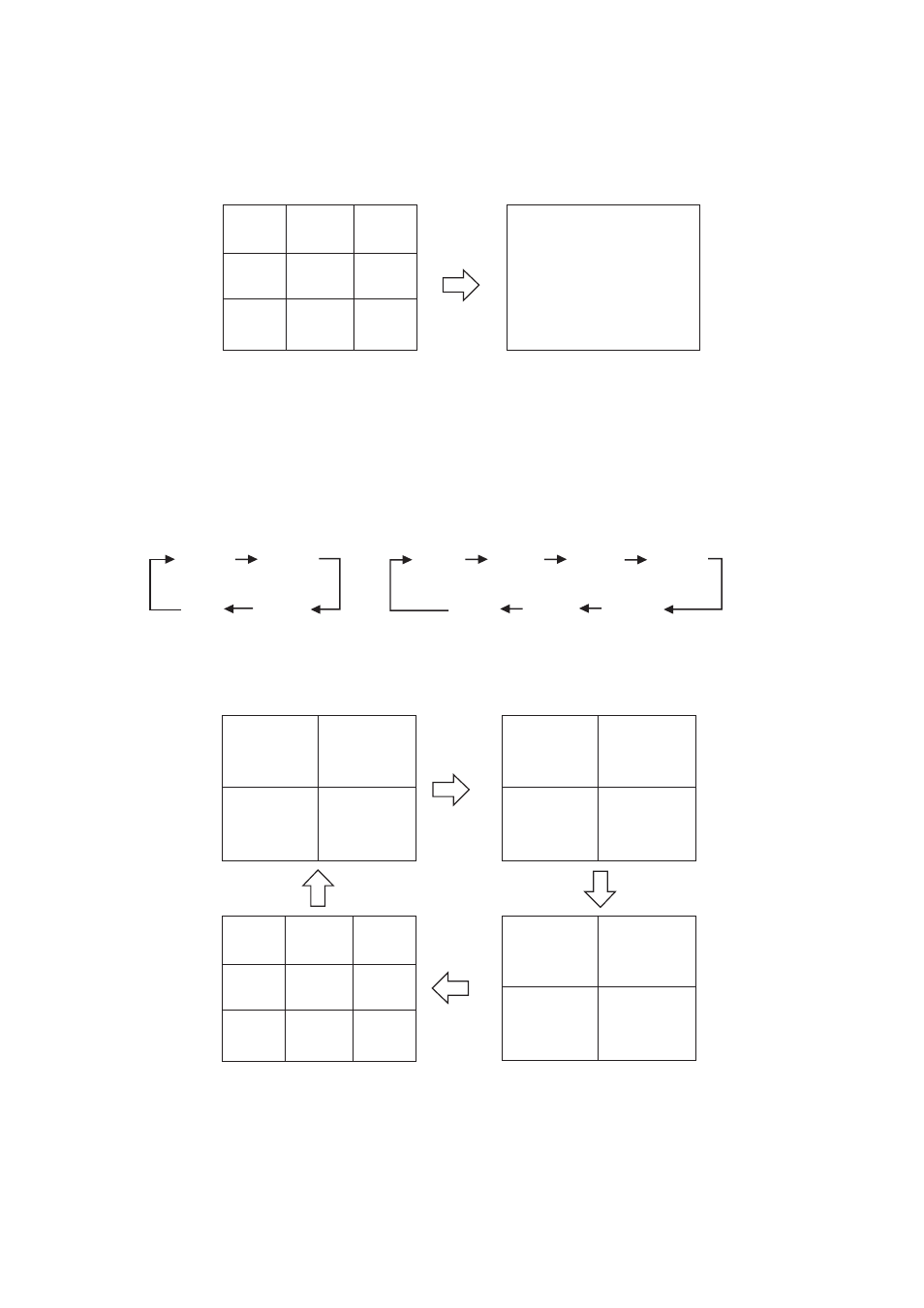

8.1. Full-Screen Display
Pressing the Camera Selector key while in live or playback mode displays the selected camera output on the
full screen.
L 1 L 2 L 3
S A T J A N / 0 1 / 0 5
0 : 0 0 : 0 0
L 4 L 5 L 6
L 7 L 8 L 9
A B
Press the Camera
Selector key No. 3.
L 3
S A T J A N / 0 1 / 0 5
0 : 0 0 : 0 0
A B
8.2. Multi-Segment Split-Screen Display
When the live or playback screen is displayed, the multi-segment split-screen display changes as shown
below each time the Multi-Screen key is pressed. Multi-Screen key lights continuously during multi-Segment
Split-Screen display.
Press the
Multi-Screen key.
(Example) Screen display in live mode (9-channel DVR)
4-segment split A 4-segment split B
4-segment split C 9-segment split
L 1 L 2
S A T J A N / 0 1 / 0 5
0 : 0 0 : 0 0
L 3 L 4
A B
L 5 L 6
S A T J A N / 0 1 / 0 5
0 : 0 0 : 0 0
L 7 L 8
A B
L 9 L 1
S A T J A N / 0 1 / 0 5
0 : 0 0 : 0 0
L 2 L 3
A B
L 1 L 2 L 3
S A T J A N / 0 1 / 0 5
0 : 0 0 : 0 0
L 4 L 5 L 6
L 7 L 8 L 9
A B
Press the
Multi-Screen key.
Press the
Multi-Screen key. Press the
Multi-Screen key.
9-channel DVR :
4 Seg A 4 Seg B
9 Seg 4 Seg C
16-channel DVR:
4 Seg A 4 Seg B 4 Seg C 4 Seg D
16 Seg 9 Seg B 9 Seg A
