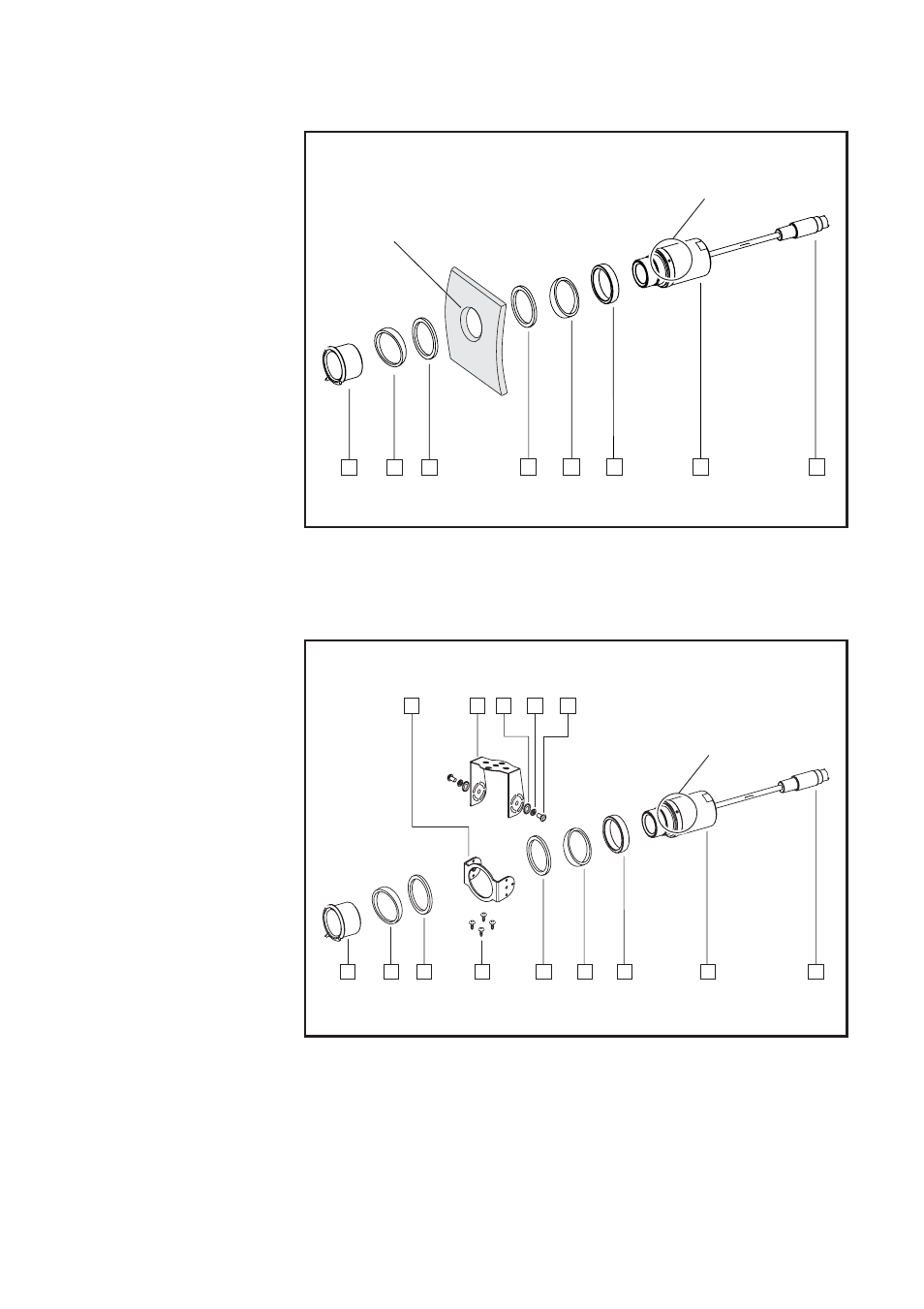

Mounting examples
1. Bumperfit mounting
2. Mounting with bracket
2
7
2
1
8
5
3
6
4
Bumper
Align dot to the top
26 mm Ø
7
2
1
9
8
11
12
5
3
6
4
13
Align dot to the top
10
14
1
Front ring
2
Tilt adjustment ring
(optional)
3
O-ring (small)
4
O-ring (large)
5
Tilt adjustment ring
(optional)
6
Clamping ring
7
CCD camera
8
Connector
9
Screw 3 mm
0
Spring washer
q
Toothed washer
w
Bracket base
e
Bracket
r
4 self-tapping
screws for bracket
base fixation
