2. USING THE START-IT AS A JUMPSTART SYSTEM
CAUTIONS:
• Before using this system to jump start any boat or vehicle engine, read and
understand all instructions, safety tips, Warnings and Cautions and first aid
information provided in this manual and on the product labeling. additional
important information may also be provided by the vessel’s or vehicle ‘s battery
system manufacturer.
• Excessive engine cranking can damage the vessel’s or vehicle ‘s starter motor. If
the engine fails to start after the recommended number of attempts, discontinue
jumpstart procedure and look for other problems that may need to be corrected.
2.1 EASY, STEP-BY-STEP JUMPSTARTING INSTRUCTIONS
1. Turn off vessel’s or vehicle’s ignition and all accessories (radio, a/c, lights, cell
phone, etc.). place vehicle in “park” and set the emergency brake.
2. Make sure jumpstart system safety switch is turned off.
3. Follow procedure for negative or positive grounded system, as follows:
NEGATIVE GROUNDED SYSTEM
(negative battery terminal is connected to main
engine block MOST COMMON METHOD:

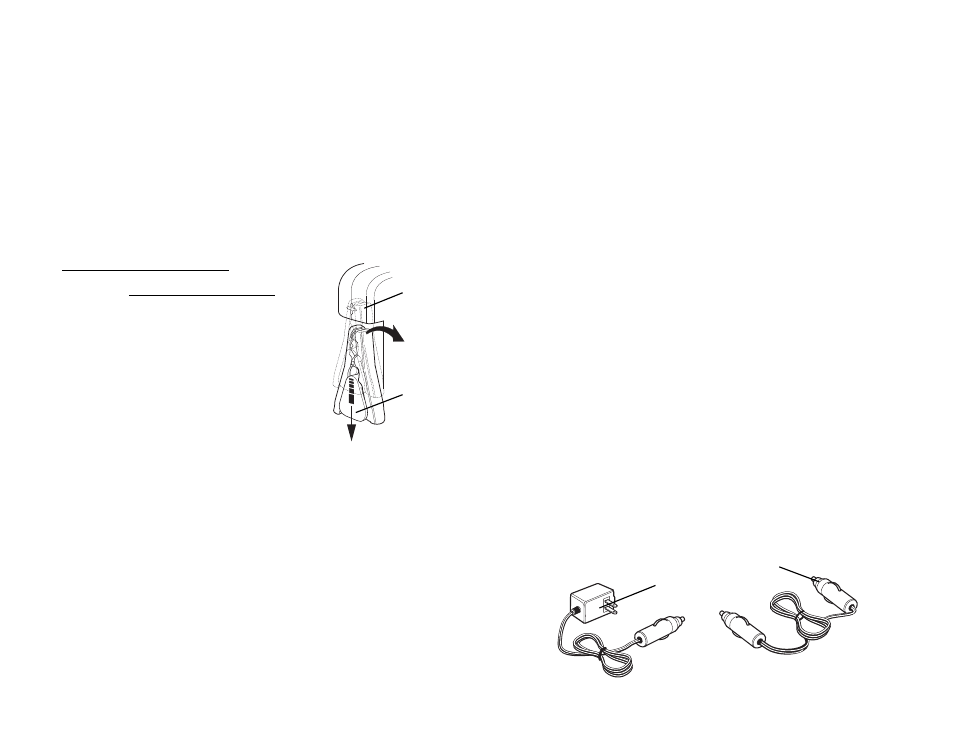

• To remove booster clamps from protective holster
(fig. 2): simply pull down on clamp, (shoulder rest
is spring loaded)-rotate top of clamp outward
while you pull down-when clear of clamp
cover remove clamp. To replace booster clamp
into protective holster - return clamp to shoulder
rest, rotate out and push down then slide clamp
up into protective cover.
• Connect positive (+) red clamp to vehicle battery ‘s
positive terminal.
• Connect negative (-) black clamp to chassis or a
solid, non-moving, metal main engine part. never
clamp directly to negative battery terminal or moving
part. of engine.
4. Turn jumpstart system’s safety switch to on position.
5. Start vehicle (do not turn key for longer than 5-6 seconds).
6. After vehicle starts, turn jumpstart system ‘s power switch to off position. remove
clamps (disconnect the negative (black) jumper cable first; followed by the
positive (red) jumper cable) and replace them in the built-in storage holsters.or
moving part.
CAUTIONS:
• If vessel or vehicle fails to start, leave vessel or vehicle ignition key turned off, dis-
connect the negative (-) clamp first, then the positive (+) clamp and discontinue
jumpstarting procedure.
• recharge jumpstart system after each use.
• Never allow red and black clamps to touch each other or another common metal conductor - this could
cause damage to the unit and/or create sparking/explosion hazard.
• There is a risk of explosive gases being released when batteries are improperly charged or discharged. fail-
ure to follow instructions may cause property damage, explosive hazard and/or personal injury.
• Always use protective eyewear when using this product: contact with batteryacid may cause blindness
and/or severe burns.
• Keep out of reach of children.
• Always store battery clamps in built-in holsters when not in use. never touch battery clamps together-this can
cause dangerous sparks, power arcing and/or explosion.
FIRST AID:
• SSSSKKKKIIIINNN
N:::: if battery acid comes in contact with skin, rinse immediately with water, then
wash thoroughly with soap and water. if redness, pain, or irritation occurs,
seek immediate medical attention.
• EEEEYYYYEEEESSSS:::: if battery acid comes in contact with eyes, flush eyes immediately-for mini-
mum of 15 minutes-seek immediate medical attention.
3. CHARGING/RECHARGING
For maximum battery life, we recommend that the Start-It system be kept fully
charged at all times. if the battery is allowed to remain in a discharged state,
battery life may be shortened. NOTE: recharging battery after each use will prolong
battery life; frequent discharges between recharges will reduce battery life.
3.1 120 VOLT AC CHARGING
IMPORTANT:
• Make sure safety on/off switch is in off position during recharging.
• Charge unit for full 24 hours, prior to first use.
• Recharge unit fully after each use.
• Recharge unit every two months, when it has not been used.
1. Simply plug the 120 volt AC plug of the AC/DC adapter/charger cord into any
standard 120 volt AC wall outlet.
2. Plug the 12 volt DC cigarette type plug into the 12 volt DC receptacle on the unit.
3. Charge this device for until the full LED indicator lights when charge status button
is pressed.
4. NOTE: the unit can be overcharged (which will shorten the life of the battery - do
not charge with ac charging procedure for more than 24 hours maximum.
5. when charging is completed, remove the power cord and store in a safe place.
Fixed Clamp
Cover
SLIDE DOWN AND ROTATE CLAMP
OUTWARD FROM BACK OF
UNIT TO REMOVE
Clamp Holster
Shoulder
120 volt AC
Adapter/Charger
12 volt DC
Charging Cord
FFFFiiiigggg 2222
