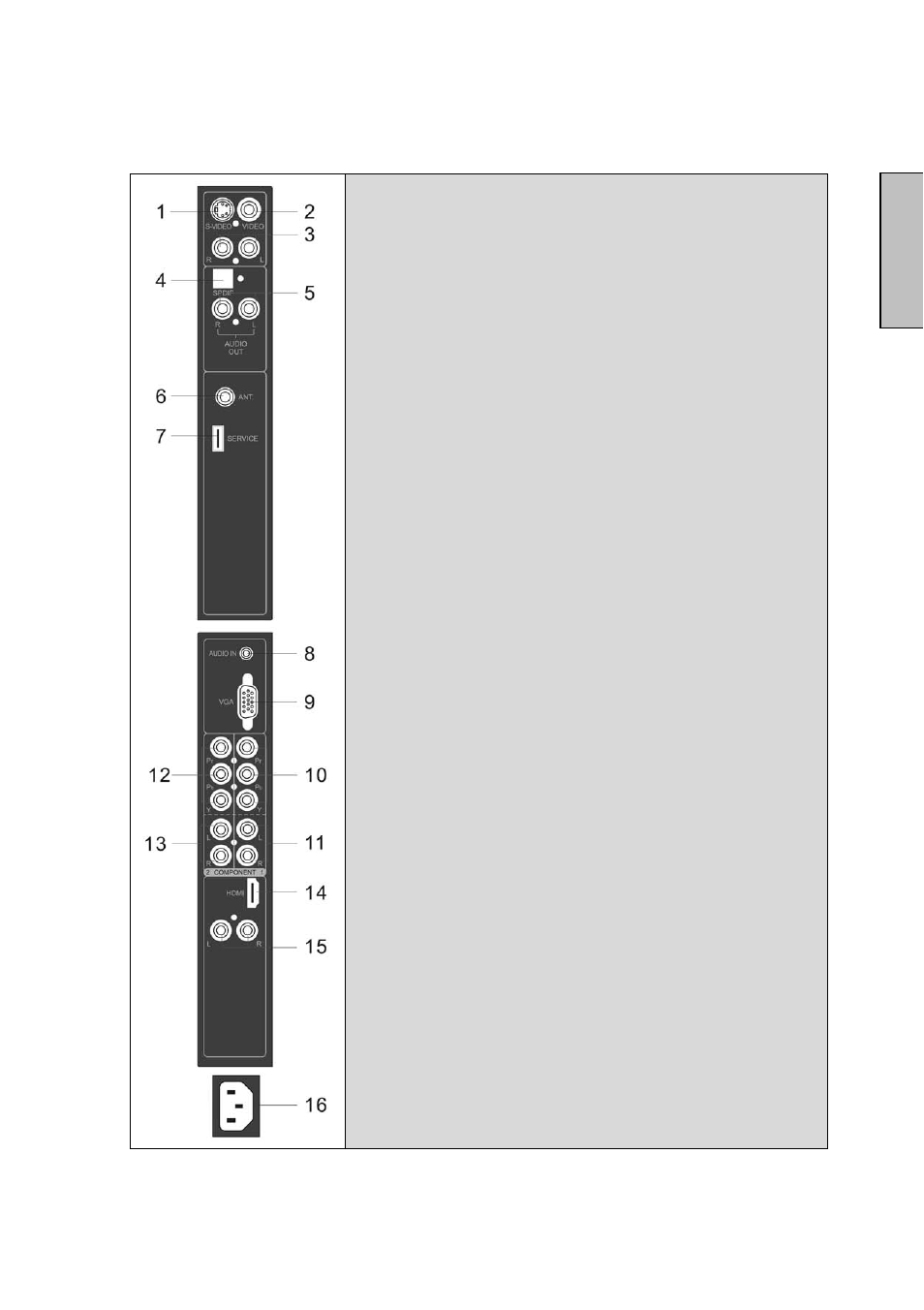

Back view of the LCD TV
1. S-Video Input
Connect to a legacy video device such as a VCR or video
game system.
2. Composite Video Input
Connect to a legacy video device such as a VCR or video
game system.
3. Composite Video & S-Video Audio Input (Right / Left)
Connect an external audio source to this jack (Audio (R/L).
4. SPDIF Output
Connect this output to an external stereo audio amplifier,
receiver or surround sound processor with SPDIF Input, SPDIF
Output is only available when using the built-in TV tuner.
5. Audio Output (Right / Left)
Connect this output to an external stereo audio amplifier,
receiver or surround sound processor with R/L audio Inputs.
6. ANT (RF-input)
Connect the LCD TV to an over-the-air antenna or cable
service to view NTSC or ATSC (HDTV) content.
7. SERVICE
Factory service port
8. VGA Audio IN
Connect to the Audio out (Green) from a computer.
9. VGA
Using a 15-pin VGA cable, connect to a computer or other
device with a VGA output.
10. YPbPr1 Input
Connect external video devices with component output to
these jacks.
11. YPbPr1 Audio 1 Input (Left / Right)
Connect an external audio source to this jack.
12. YPbPr2 Input
Connect an external video device with component output to
these jacks.
13. YPbPr2 Audio 2 Input (Left / Right)
Connect an external audio source to this jack.
14. HDMI-HDCP input
Connect to an external video device such as an HD Digital
cable/satellite receiver, HD Set-Top-Box, Media Center PC or
DVD player.
15. HDMI Audio Input (Left / Right)
Connect the audio input if you using a DVI-to-HDMI converter.
16. AC-IN (Power)
Connect the power cord from the AC-IN port to an electrical
outlet.
