1996 Volvo 960
1,4 Tail light 4 (5) BA 15s 67
2 Rear turn signal (21) BAU 15s -
3 Brake light 32 (21) BA 15s 1156
5 Back-up light 32 (21) BA 15s 1156
6 Rear foglamp* 32 (21) BA 15s 1156
* Left (driver's) side only
pg. 6:8 Replacing bulbs

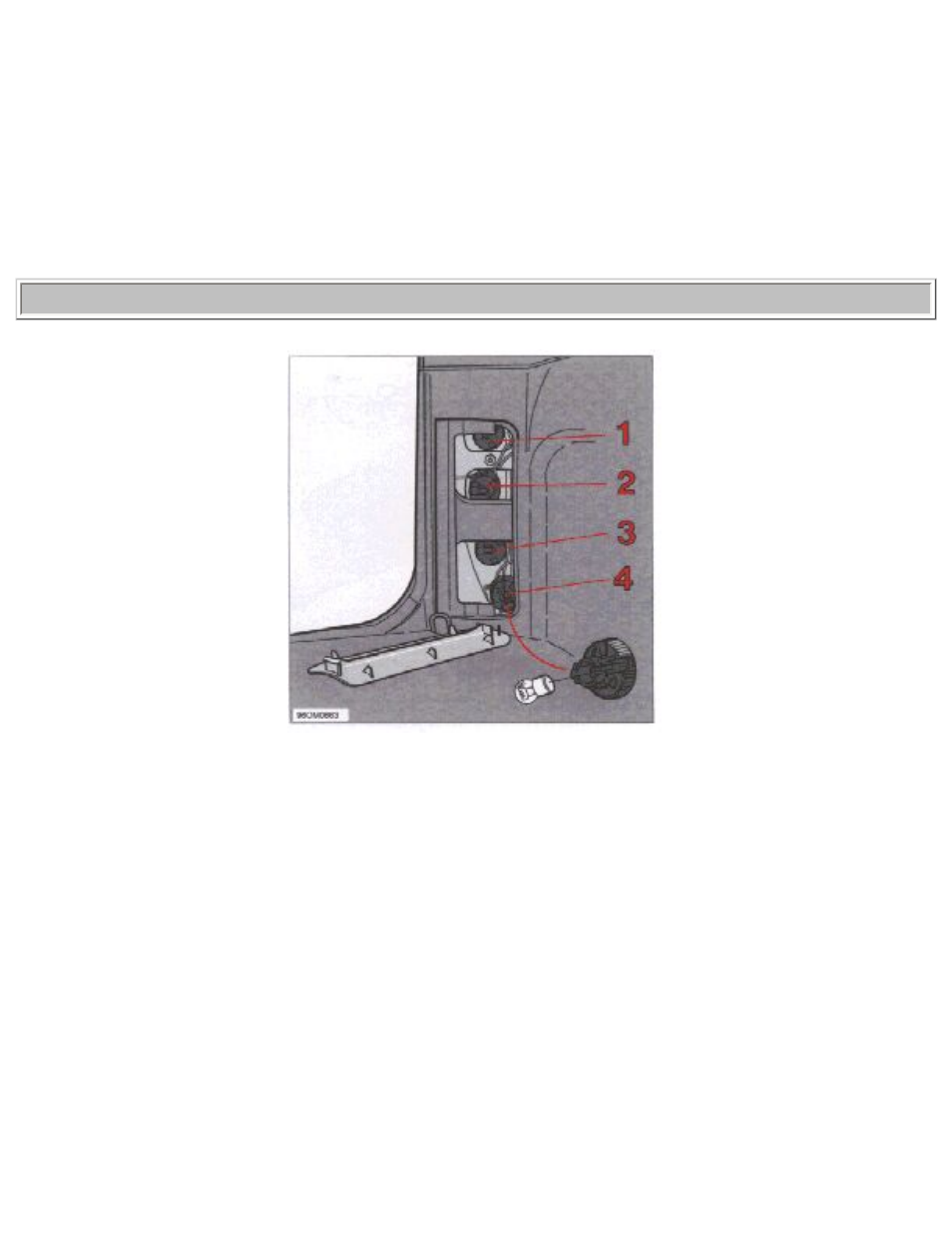

Replacing tail light bulbs (wagon models)
●
Turn off the lights.
●
Remove the cover with a screw driver.
●
Rotate the bulb holder about 1/4" (0.6 cm) counterclockwise and remove the holder from the tail light
cluster.
●
Gently press the bulb into the holder, then rotate the bulb counterclockwise in order to release it.
●
Install a new bulb in the holder and replace the bulb holder in the tail light cluster.
One of the guide lugs on the bulb holder is slightly wider than the other two and, thus, this lug fits into
the widest recess only.
●
Turn the bulb holder clockwise
●
Check that the bulb lights
