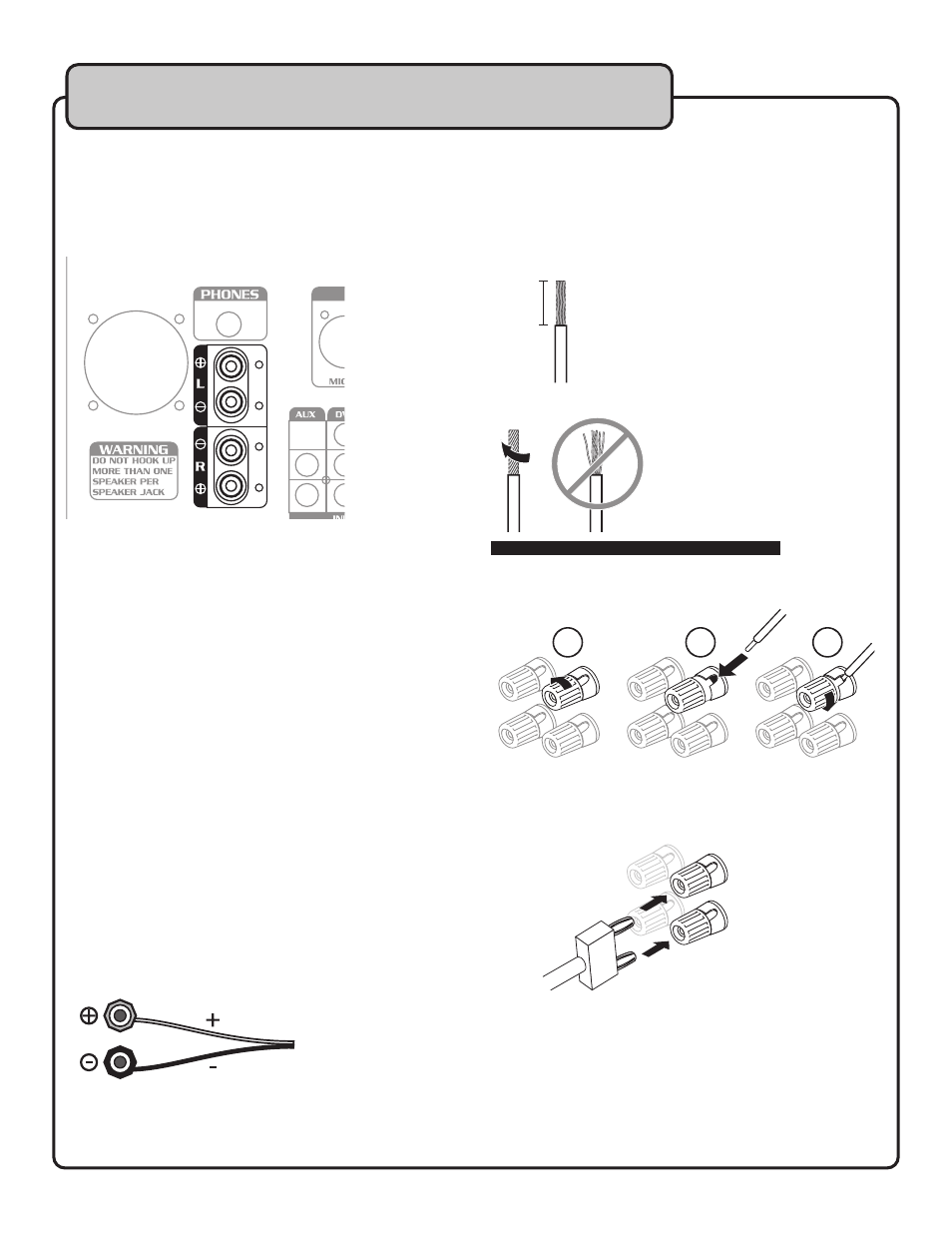

Connecting Speakers

The Speaker Terminals are located on the rear panel.

There are two SPEAKER terminals. Be sure to connect the

left channel (L), right channel (R), “+” (red) and “--” (black)

properly.

��

• Before connecting the speakers, make sure that the CDG-

6000RV is disconnected from the power source.

• Do not let the bare speaker wires touch each other or

another metal part of this unit. This could damage the

CDG-6000RV and/or the speakers.

Determining the proper way to connect the speaker

cables:

The speaker cable is a pair of insulated cables running side

by side. One cable is colored or shaped differently , perhaps

with a stripe, groove or ridges.

1. Connect one end of the striped (grooved, ridged, etc.)

cable to the “+” (red) terminal on the rear panel of the

CDG-6000RV.

2. Connect the other end of the striped (grooved, ridged,

etc.) cable to the “+” (red) terminal on the speaker.

3. Connect one end of the “plain” (NO stripes, grooves,

ridges, etc.) cable to the “--” (black) terminal on the rear

panel of the CDG-6000RV.

4. Connect the other end of the “plain” (NO stripes, grooves,

ridges, etc.) cable to the “--” (black) terminal on the

speaker

��

Preparing the Speaker Cable

You can either use an exposed speaker wire or Banana Plug

speaker cable.

Exposed Speaker Wire

1. Remove approximately 3/8” (10mm) of insulation

��

2. Twist the exposed wires together to prevent short circuits

4. Insert the bare wire
5. Tighten the knob until the wire is secure

�

��
