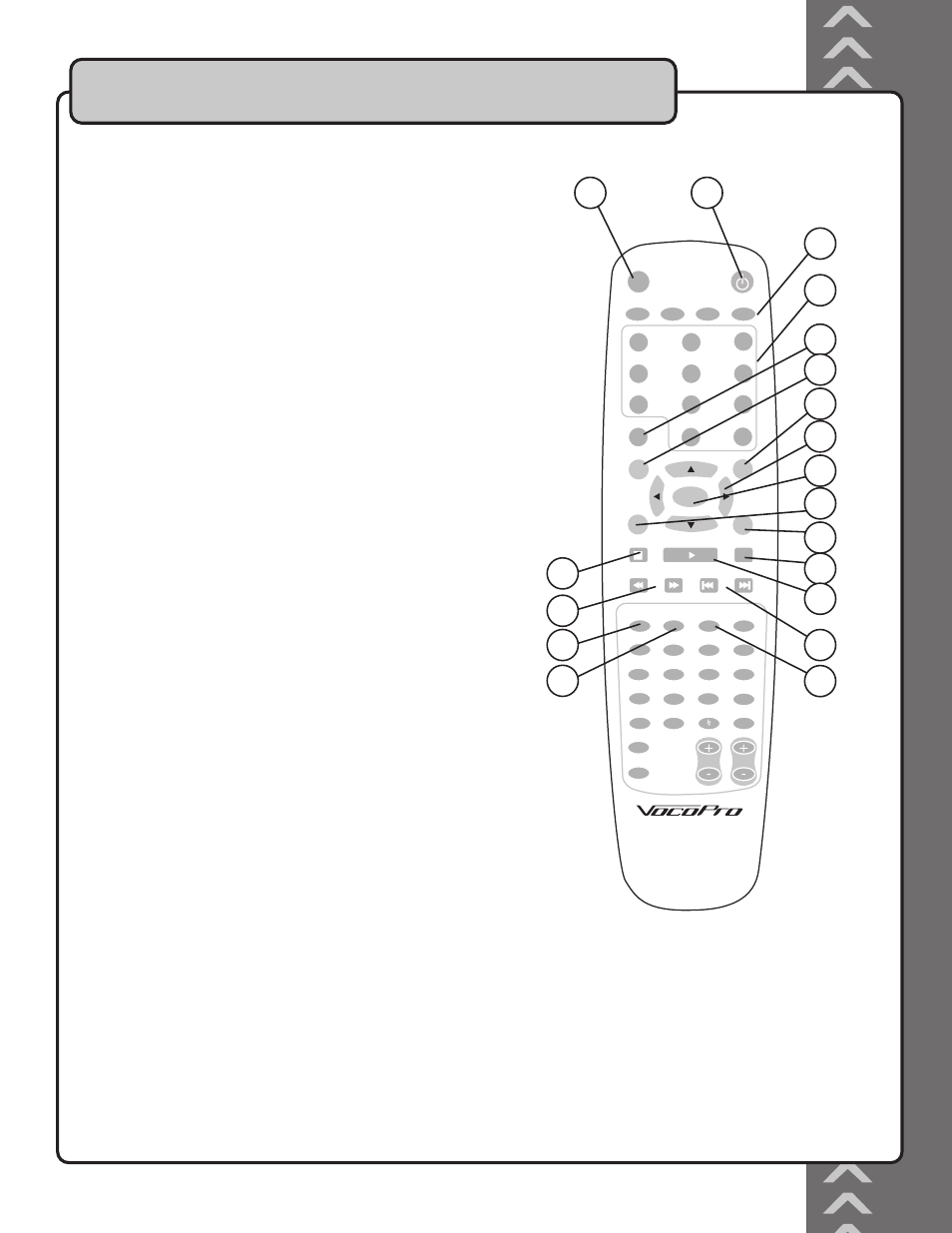

Remote Control Descriptions
1. OPEN/CLOSE - Opens and closes the disc tray. NOTE: The GIG STAR input must
be set to DISC mode. The OPEN/CLOSE button will not open the disc tray if the
input is set to AV1, AV2 or TUNER.
2. POWER - Turns the GIG STAR’s power on and off.
3. INPUT SELECT buttons - Select the active input source using these buttons.
• DISC to use the disc tray for playing DVD, CD+G, CD, etc.
• TUNER to use the AM/FM radio.
• AV1 to use an additional player (CD/DVD player, Mp3 player, etc.)
that is connected to the AV1 input on the rear panel.
• AV2 to use an additional player (CD/DVD player, Mp3 player, etc.)
that is connected to the AV2 input on the rear panel.
4. NUMBER pad - The number pad is used for direct track accessing of disc
tracks, accessing preset radio stations, jumping to specific chapters on a DVD,
and programming custom track order.
5. PROGRAM - Enters PROGRAM mode where you can program a customized
playlist from a disc.
6. SETUP - Enters the on-screen preference setup menu. Use the arrow keys on
the remote control to navigate through this menu and the ENTER button to make
selections in the menu.
NOTE: To see the setup menu the GIG STAR must be connected to a TV/monitor.
7. TITLE - Returns to the title menu of DVDs and VCDs.
8. ARROW buttons - Use the arrow buttons to navigate through a DVD menu and
the preference setup menu.
9. ENTER - Use the ENTER button to makes selections in a DVD menu and the
preference setup menu.
10. MENU - Accesses the DVD menu on a DVD.
11. RETURN - Returns to the previous Menu on a VCD.
12. PAUSE - Pauses a disc that is playing. Press once to pause the disc and
press again to resume playback.
13. STOP - Stops a disc that is playing.
14. PREVIOUS and NEXT - Skip ahead to the next track or back to a previous track.
PREV skips back to the previous track or chapter and NEXT skips ahead to the
next track or chapter.
15. ANGLE - For use only with multi-angle coded discs, allows you to view the
picture from multiple angles.
16. SUBTITLE - Switches between the available subtitle languages on a DVD with
multiple subtitle languages.
NOTE: Not all DVDs have multiple subtitle languages available.
17. LANGUAGE - Switch between the available languages on a DVD that contains
multiple languages.
18. B. SCAN (rewind) and F. SCAN (fast-forward) - Scan forwards and backwards
through a track or movie.
19. PLAY - Begins playing a disc.
NOTE: DISC must be the active input to play a disc in the disc tray.
