Hardware Connections
Wiring
Strata CIX DP5000-series Telephone UG 02/08
117
Wiring

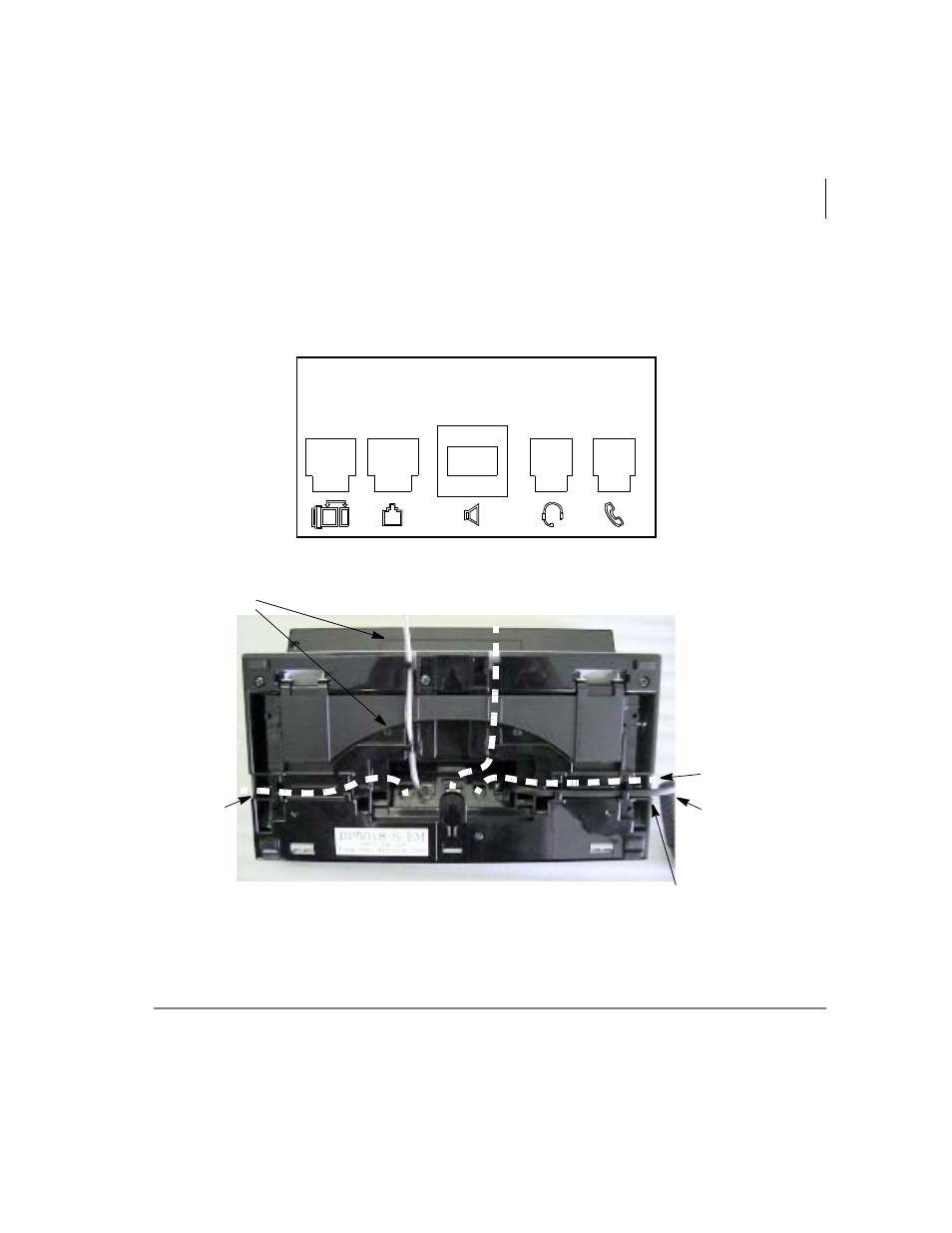

The connectors on the DP5000-series telephones are identified with icons. The
connector icons and their meaning are shown below.
DP5000-series Telephone Wiring
Connectors
ADM Handset Headset
Ext. Speaker
Line Cord
Cable Clips
(To CIX System) Speaker (BESCB)
AMD Cord
The DP5000-series telephones include the special long-tail handset
cords required to fit the new tilt bases.
Headset Cord
Handset Cord
