Tuffset ™
CT Switch
User Guide
1
Connect the
Tuffset CT Switch to
Your PC and Telephone
The VXI TuffSet ™ CT Switch, in conjunction with
a TuffSet Headset, enables seamless switching
between computer-based tasks and
telephone use with the push of
the yellow button. In addition,
the Computer/Telephone
Selector button allows
the user to talk to the
computer and listen
to the person on the
telephone simulta-
neously.

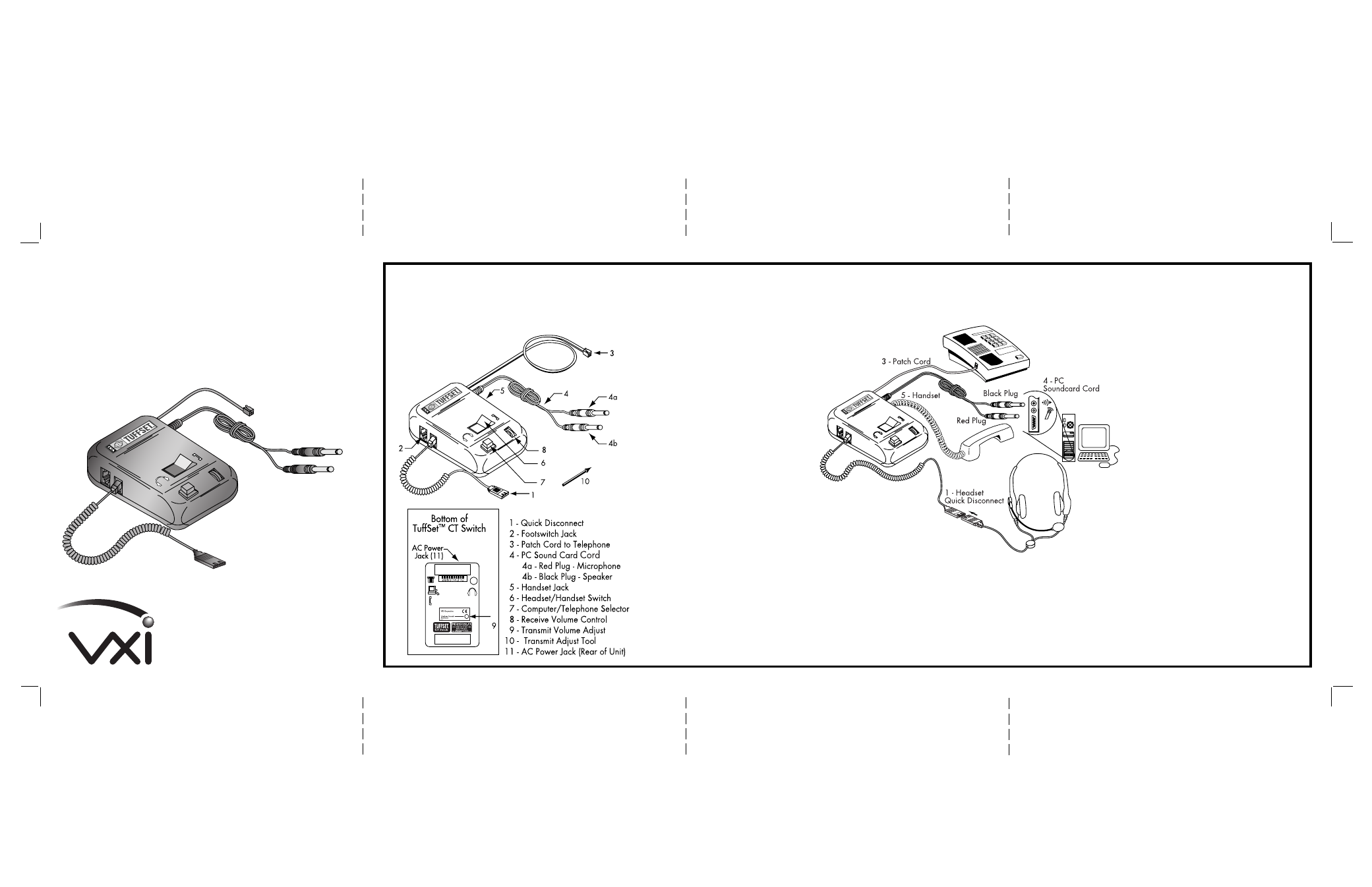

(Numbers) refer to
the TuffSet CT Switch Components
drawing and list at left.
A. Insert the AC Adapter Cord into the AC
Power Jack on the rear of the Switch (11), and plug
the Adapter into an AC outlet. Make sure the
Adapter Cord plug is fully inserted into the Jack.
B. Remove the handset cord from your telephone.
Insert the handset cord into the Telephone Handset
Jack (5).
C. Insert the free end of the Telephone Patch Cord
(3) into your telephone where the handset cord
was removed.
D. Insert the Quick Disconnect Connector on
the coiled cord (1) into the Quick Discon-
nect on the headset. Verify that the other end
of the coiled cord is inserted
into the Headset Jack on the
Switch.
E. Insert the Red plug (4a) on
the Sound Card Cord into the
microphone input jack on your
computer’s sound card.
F. Insert the Black plug (4b) on
the Sound Card Cord into the speaker
output jack on your computer’s sound
card.
G. If necessary, adjust your Windows
Volume Control Panel to a comfortable level.
