PARTS LIST – PB65XL RAILROAD POTBELLY STOVE
When ordering missing or replacement parts, always give the Model Number of the stove,

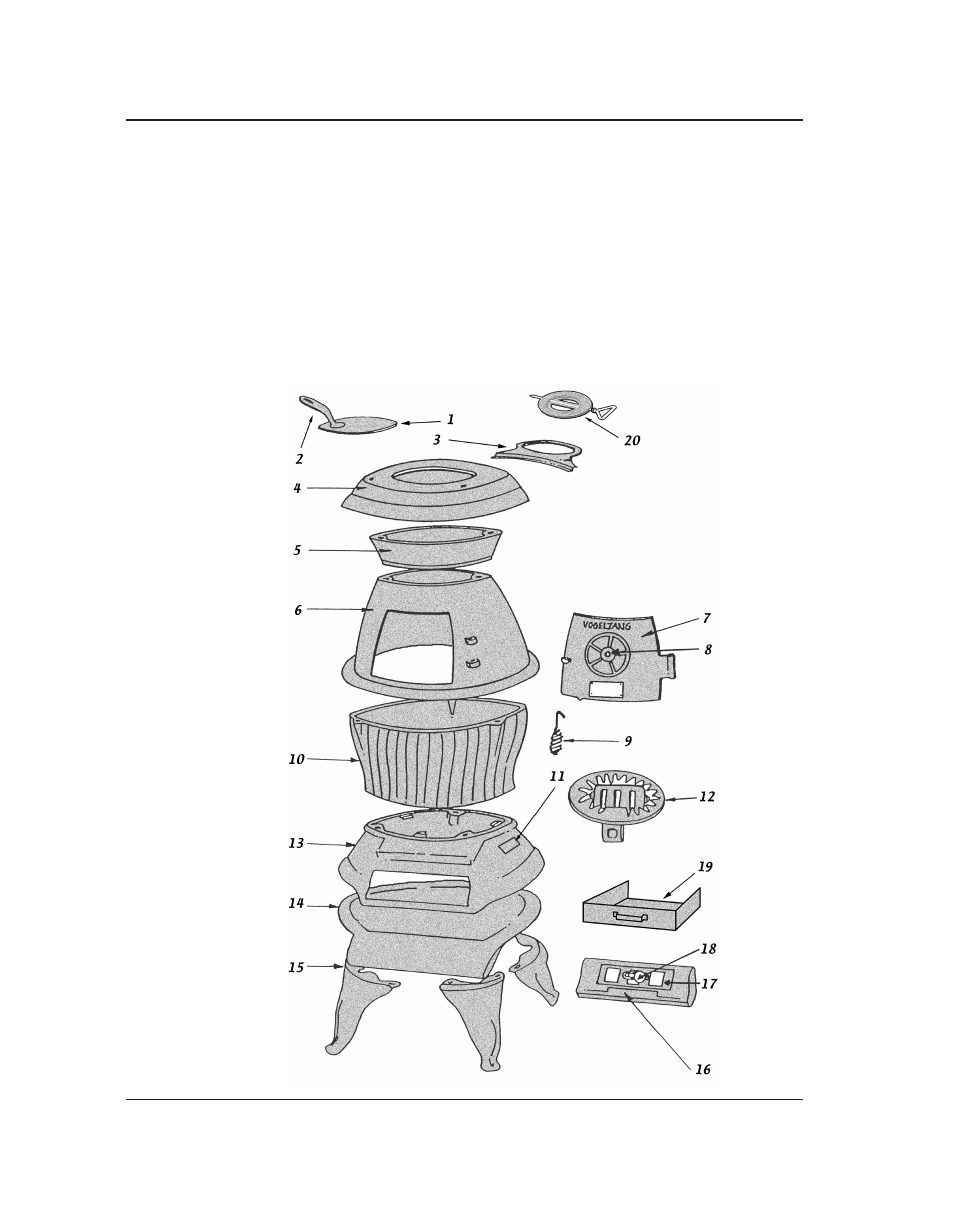

Part Number, and Part Description. Use the illustrations and part lists provided to identify parts.
Contact us at 616-396-1911 to order parts.
Part No. Description Qty.
1 Cook Lid ...................................................... 1
2 Lid Lifter ....................................................... 1
3 Collar Top ..................................................... 1
4 Top Plate ...................................................... 1
5 Upper Chamber ........................................... 1
6 Feed Chamber ............................................. 1
7 Feed Door .................................................... 1
8 Spin Draft ..................................................... 1
9 Spring Handle .............................................. 1
10 Burn Chamber ............................................ 1
11 Shaker Door................................................. 1
Part No. Description Qty.
12 Shaker Grate ............................................... 1
13 Lower Chamber ........................................... 1
14 Base ............................................................ 1
15 Leg ............................................................... 4
16
Ash Door ...................................................... 1
17 Slide Draft .................................................... 1
18 Slide Draft Knob .......................................... 1
19 Ash Drawer .................................................. 1
20 Draft Damper (for pipe installation) .............. 1
21 Hardware Pack (not shown) ......................... 1
