16
ENGLISH
Contact ViewSonic service team at: http://www.ViewSonic.com or call our service team: United States 1-800-688-6688, Canada 1-866-463-4775
ViewSonic VT1930
Getting Started
Item Description
9 Headphone Jack Connect to your headphones. By connecting the headphones, you
can listen to the sound from the TV on headphones.
＊If you connect the headphones, the TV speakers will be muted.
10 TV Input Jack Connect this jack to your Cable or VHF/UHF antenna.
AV connection
Connect the composite video and audio input jacks to the corresponding output jacks of your
A/V device.
--- VIDEO: Composite Video input [5]
--- AUDIO: AV/ S-Video/ YPbPr/ DVI signal Audio input [7]
S-Video connection
Connect the S-Video and audio input jacks to the corresponding output jacks of your VCR or
other video device that has S-Video. S-Video provides better picture quality than composite
video connection. If both are connected, S-Video signal has priority.
--- VIDEO: S-Video input [6]
--- AUDIO: AV/ S-Video/ YPbPr/ DVI signal Audio input [7]
Component (YPbPr) connection
YPbPr provides better picture quality than the S-Video or the AV connection.
＊ For YPbPr connection, connect the component video (YPbPr) and audio jacks to the
corresponding output jacks of your A/V device.
--- VIDEO: YPbPr signal input [4]
--- AUDIO: YPbPr signal audio input [7]
HDMI connection
HDMI (High-Definition Multimedia Interface) is a licensable audio/video connector interface
for transmitting uncompressed, encrypted digital streams between this TV and any HDMI-
equipped audio/video equipment.
＊ Be sure to use only an HDMI cable that bears the HDMI logo.
＊ If the equipment has a DVI jack and not an HDMI jack, connect the DVI jack to the HDMI
Input Terminal (with DVI-to-HDMI cable or adapter), and connect the Audio cable to the
Audio In jacks.
1. With HDMI cable: HDMI Input Terminal [2]
2. With HDMI-DVI cable
--- VIDEO: HDMI Input Terminal [2]
--- AUDIO: AV/ S-Video/ YPbPr/ DVI signal Audio input [7]
Computer connection
Connect the VGA cable and Audio cable from the VGA signal input and PC Audio input to
the corresponding ports on your A/V device.
--- VIDEO: VGA signal input [3]
--- AUDIO: PC Audio input [8]

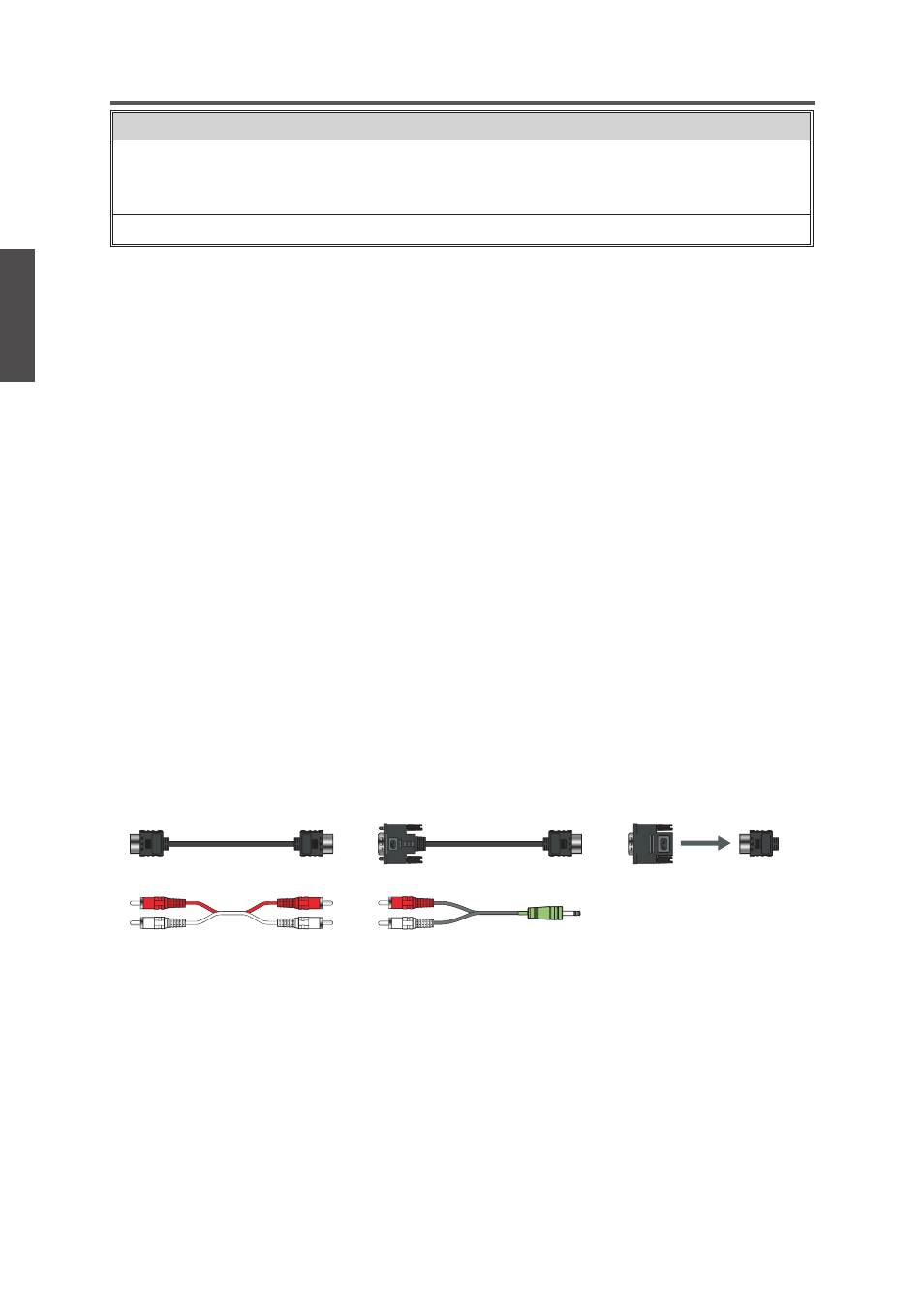

DVI-to-HDMI cable HDMI cable
Audio cable Audio cable
DVI-to-HDMI adapter
