Page 28: Figure 3-1 . antenna/cable tv connection, Connections to the dview, 1. antenna/cable tv connection, Pre l iminar y
16
Vidikron VL-52 and VL-57 Owner’s Operating Manual
PRE
L
IMINAR
Y
3.4
Connections to the DView
Proceed as follows to connect the DView to your video sources, external controller(s) – if
present – and AC power.
When connecting your equipment:
• Turn off all equipment before making any connections.
• Use the correct signal cables for each source.
• Ensure that the cables are securely connected. Tighten the thumbscrews on connectors
that have them.
• Use the left audio input when connecting mono audio sources.
Connecting the DView to
Source Components
Connect your video sources to the DView as shown and described in the sections that follow.
Antenna/Cable TV Connection (VL-52 only): Connect your antenna or cable television
source to the AIR or CABLE jacks on the rear of the DView; see Figure 3-1.

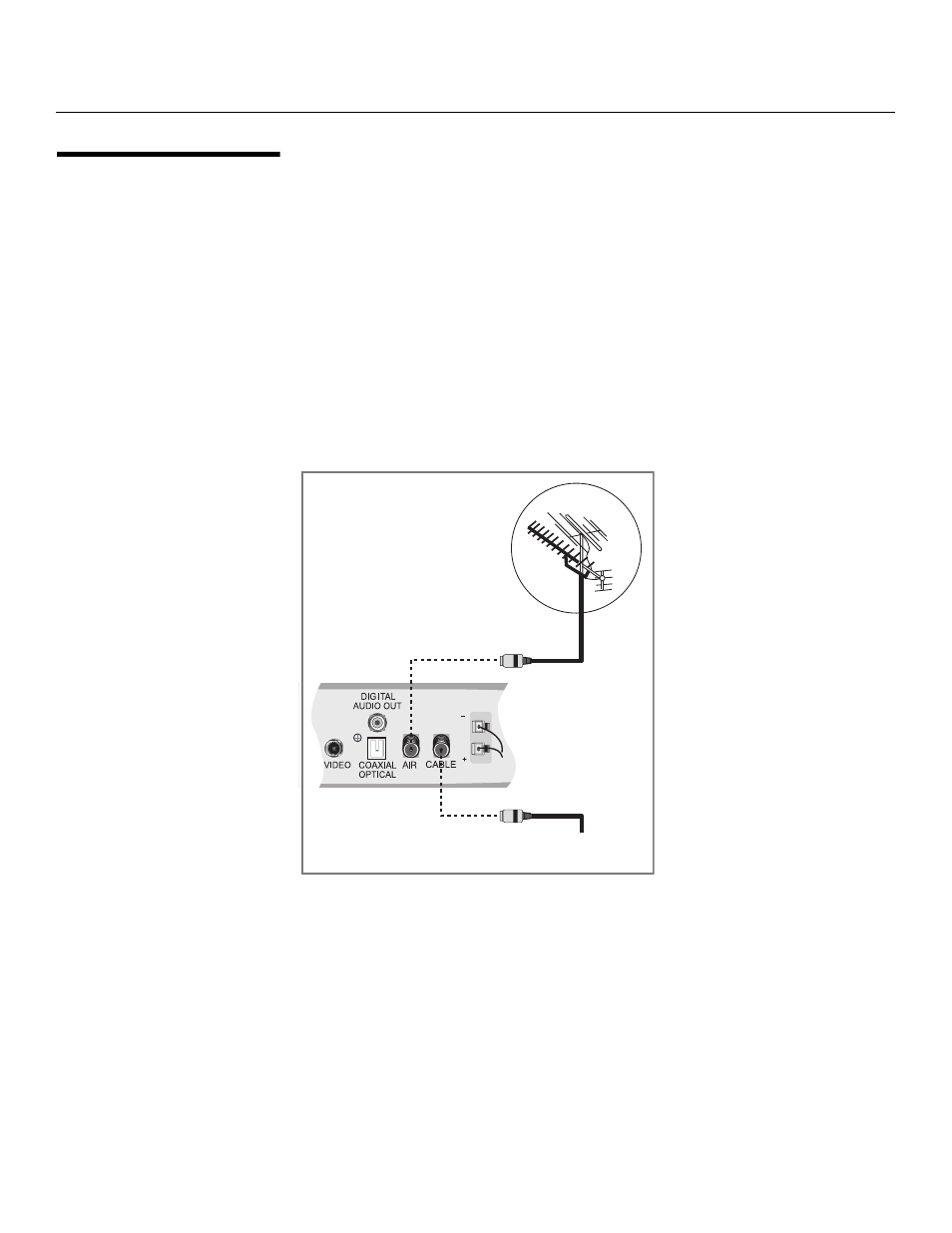

Figure 3-1. Antenna/Cable TV Connection
➤
Cable Television
Network
Input Panel
