LEG LEVELER INSTALLATION
Read before installing leg levelers

W

WA

AR

RN

NIIN

NG

G::

Do not lay unit on top, side, back, or front. If unit is

accidentally laid in any position other than right side up, then the unit
must remain in the right side up position for at least 24 hours before
plugging the unit in.

1. Tip unit backwards so there is one foot of clearance on front of the

unit. Have someone to assist you in tilting the unit to prevent it from
falling on you while installing the leg levelers.

2. Screw front two (2) leg levelers into the weldnuts. Leg levelers

should be screwed in until snug.

3. Repeat steps 1 & 2 with the exception of tipping the unit forwards to

screw in the back two leg levelers.

4. The leg levelers are not installed.
5. The unit should be level from front to back and side to side. If floor

conditions do not allow the unit to sit level, adjust the leg levelers by
turning the required leg leveler counter-clockwise to increase the
height and clockwise to reduce the height.

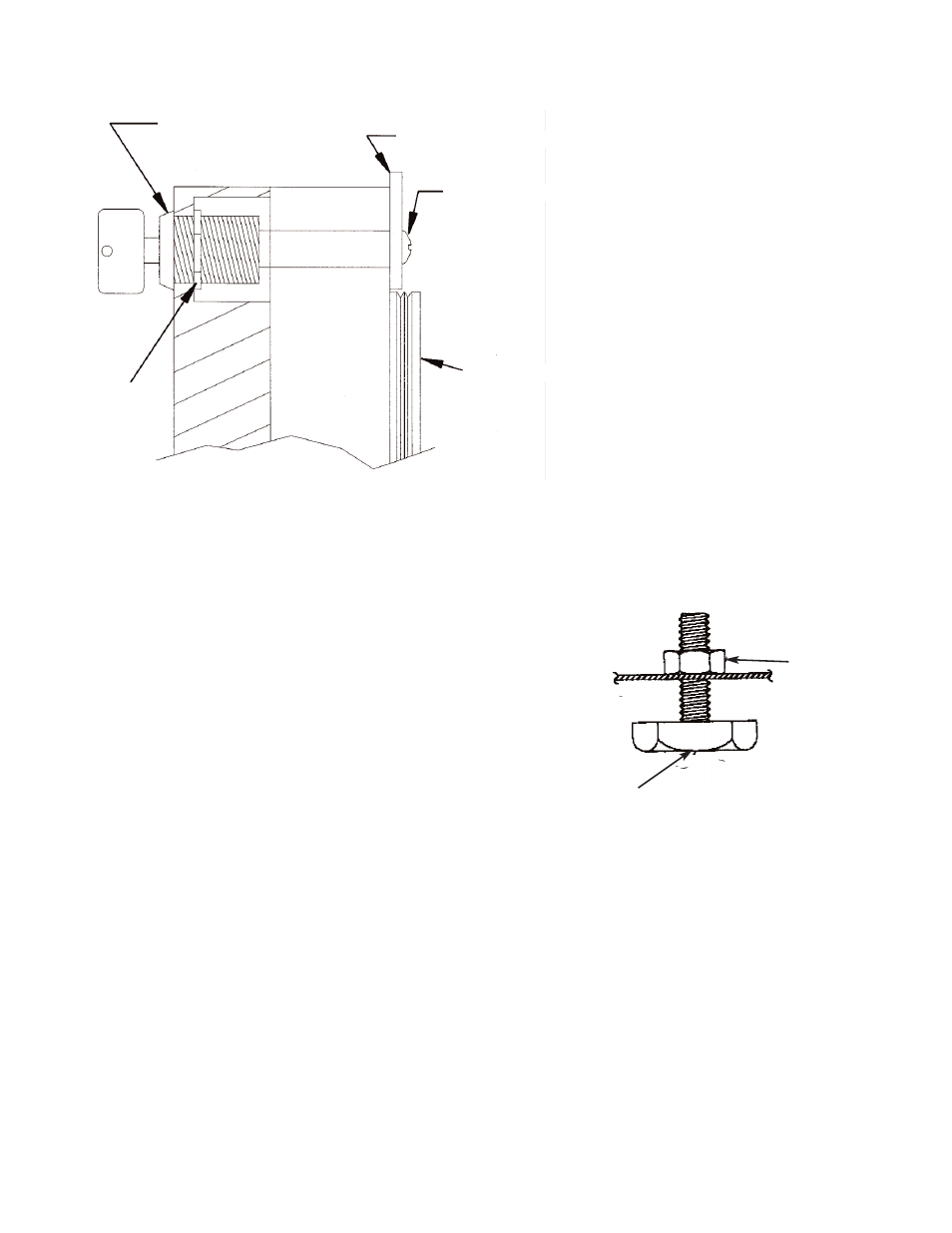

Weldnut
(Each bottom
corner of unit)

Leg Leveler
(4) per unit
