Scope of delivery
1 Mounting instructions
1 Camera with cable (1.15 m) and rubber gasket
1 Extension cable 18 m
1 Mounting bracket (stainless steel)
1 Sun visor (stainless steel)
1 Strip self-adhesive rubber seal
3 Self-tapping screws 4 x 10
3 Spring washers M4
3 Washers M4
2 Screws M3 x 6
2 Spring washers M3
4 Screws M3 x 8 with spring and washer

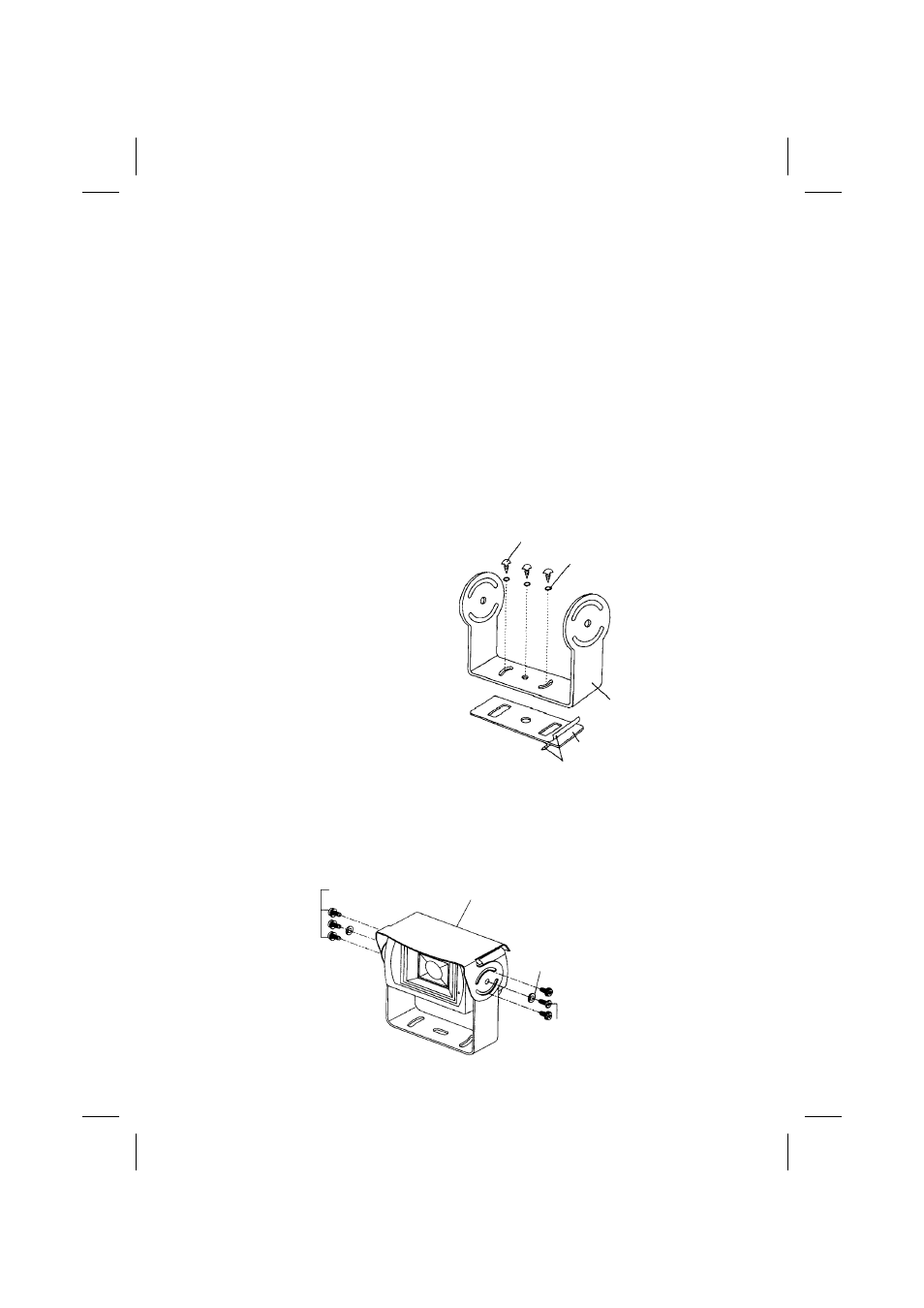

Mounting
1. Mount the supplied mounting
bracket to the vehicle with
self-tapping srews 4 x 10 and spring
washers and washers M4 (for
example on the plastic bumper).
2. Use self-adhesive rubber seal to
protect vehicle body from scratches,
if necessary.
3. If no sufficient hole for the camera
cable is available, drill a hole with a
diameter of 19 mm into the vehicle
body. Deburr all holes and apply
suitable rust protection.
4. Pass camera cable through into the
vehicle using the rubber gasket.
Do not bend cable around sharp edges.
5. Mount the camera and the sun visor to the bracket using the 6 supplied screws.
Do not yet tighten screws.
Screws M3 x 8
Sun visor
Spring washer M3
Screw M3 x 6
6
Self-tapping screw 4 x 10
Spring washer M4
Mounting bracket
Protective paper
Adhesive tape
