7

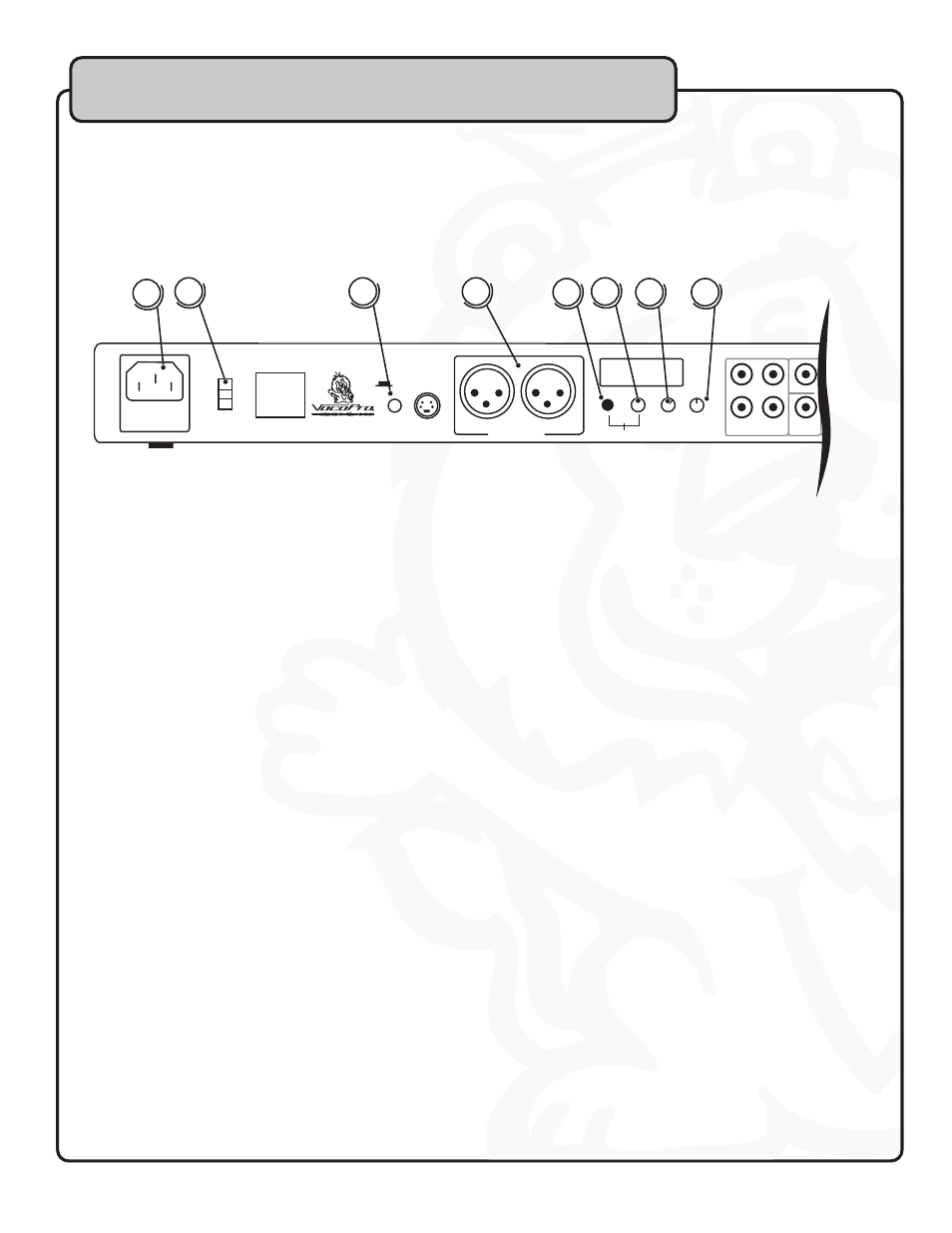

Rear Panel
1. AC input - Connect the female end of the power cord here.
2. Voltage selector - Selects between 115V and 230V power settings.
3. Exciter On/Off - Enhances the music tone.
4. Audio Outputs (XLR) - Master output using XLR cables.
5. Subwoofer level control- Adjust the level of the subwoofer connected
to the SUB OUT.
6. Subwoofer frequency control- Change the frequency of the
subwoofer connected to the SUB OUT.
7. Master Output level - Adjusts the master output volume
8. Center Output level - Adjusts the volume of the monitor connected
to the CENTER OUT.
Controls and Functions
115V
230V
EXCITER R L
AUDIO OUTPUT
EXTERNAL
REMOTE
(OPTIONAL)
ON
OFF
LEVEL LEVEL
OUT
LEVEL FREQ MASTER CENTER
SUBWOOFER IN AUDIO INPUT
L L
SUB OUT AUX DVD INPUT
R R
CENTER PRE VIDEO
OUT OUT OUT CDG DVD SET AUX R AUX L
1 2 3 4 5 6 7 8
