Capacities
Fuel tank
U.S. Gal. (l) 92 (348)
Transmission U.S. Gal. (l) 16 (61)
Final drive U.S. Gal. (l) 3.5 (13,2)
Tandems (each) U.S. Gal. (l) 26.4 (100)
Hydraulic oil tank U.S. Gal. (l) 24 (91)
Coolant antifreeze protection to -58º F (-50º C) approx U.S. Gal. (l) 8.2 (31)
Engine oil U.S. Gal. (l) 5.7 (21,5)
Attachments
(Optional unless otherwise stated as standard equipment)
Push Block lb (kg) 1,110 (504)
Ripper includes rear frame arch support and links lb (kg) 2,600 (1 175)
Mid Mount Scarifi er lb (kg) 1,900 (850)
Front Mount Scarifi er lb (kg) 1,552 (704)
Dozer: 8' (2,4 m) lb (kg) 2,300 (1 045)
9' (2,7 m) lb (kg) 2,360 (1 070)
Dimensions
All dimensions are approximate. A in (mm) 352 (8 930)
B in (mm) 105 (2 675)
C in (mm) 247 (6 280)
D in (mm) 82 (2 076)
E in (mm) 100 (2 537)
F in (mm) 127 (3 225)

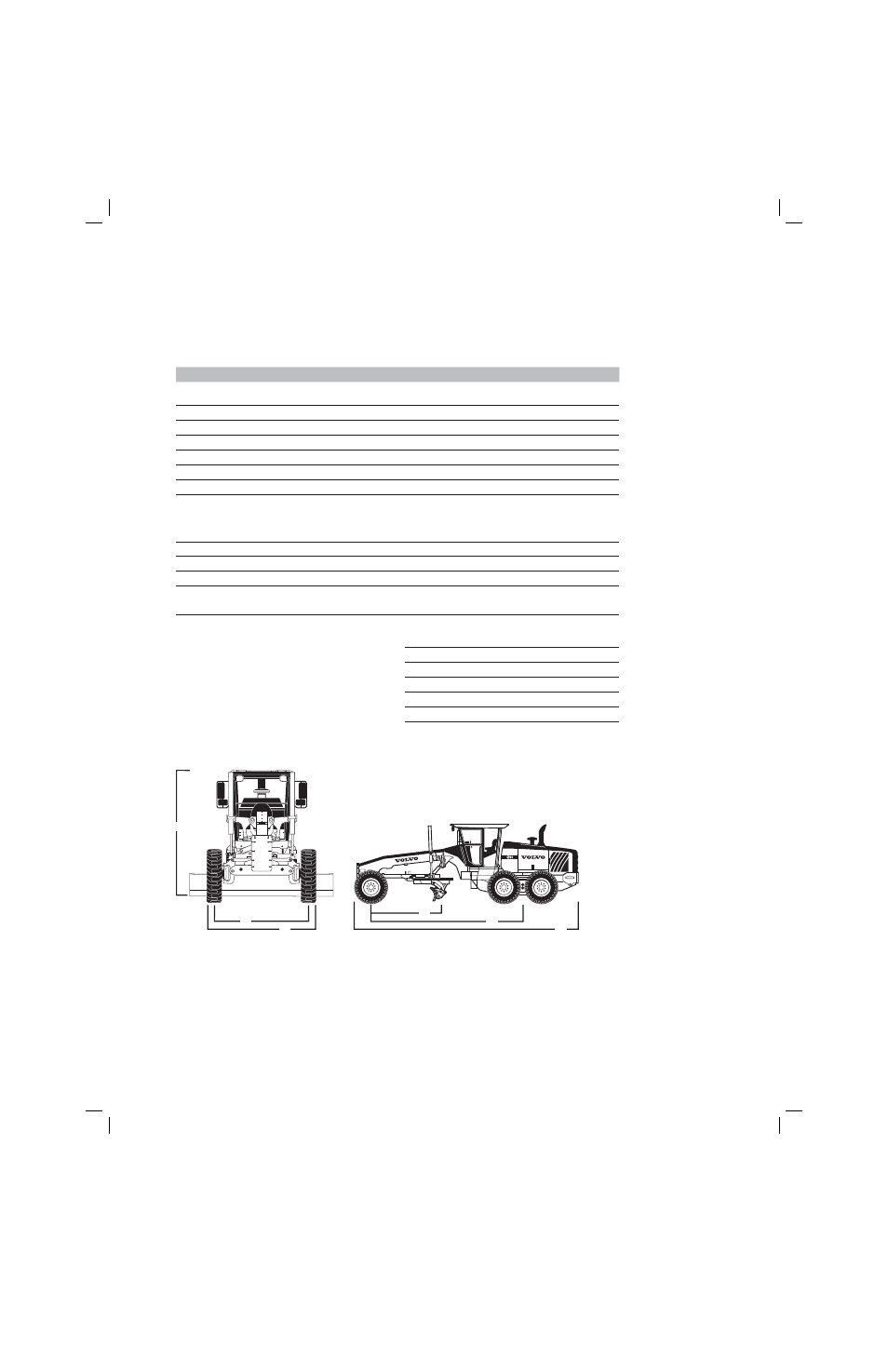

A = Overall length
B = Bladebase per ISO 7134
C = Wheelbase
D = Width - Front tire center lines
E = Width - Outside tires
F = Overall height with Low Profi le Cab
Add 8.5" (217 mm) for full height cab
