USER MANUAL ENGLISH
BEFORE STARTING THE MACHINE

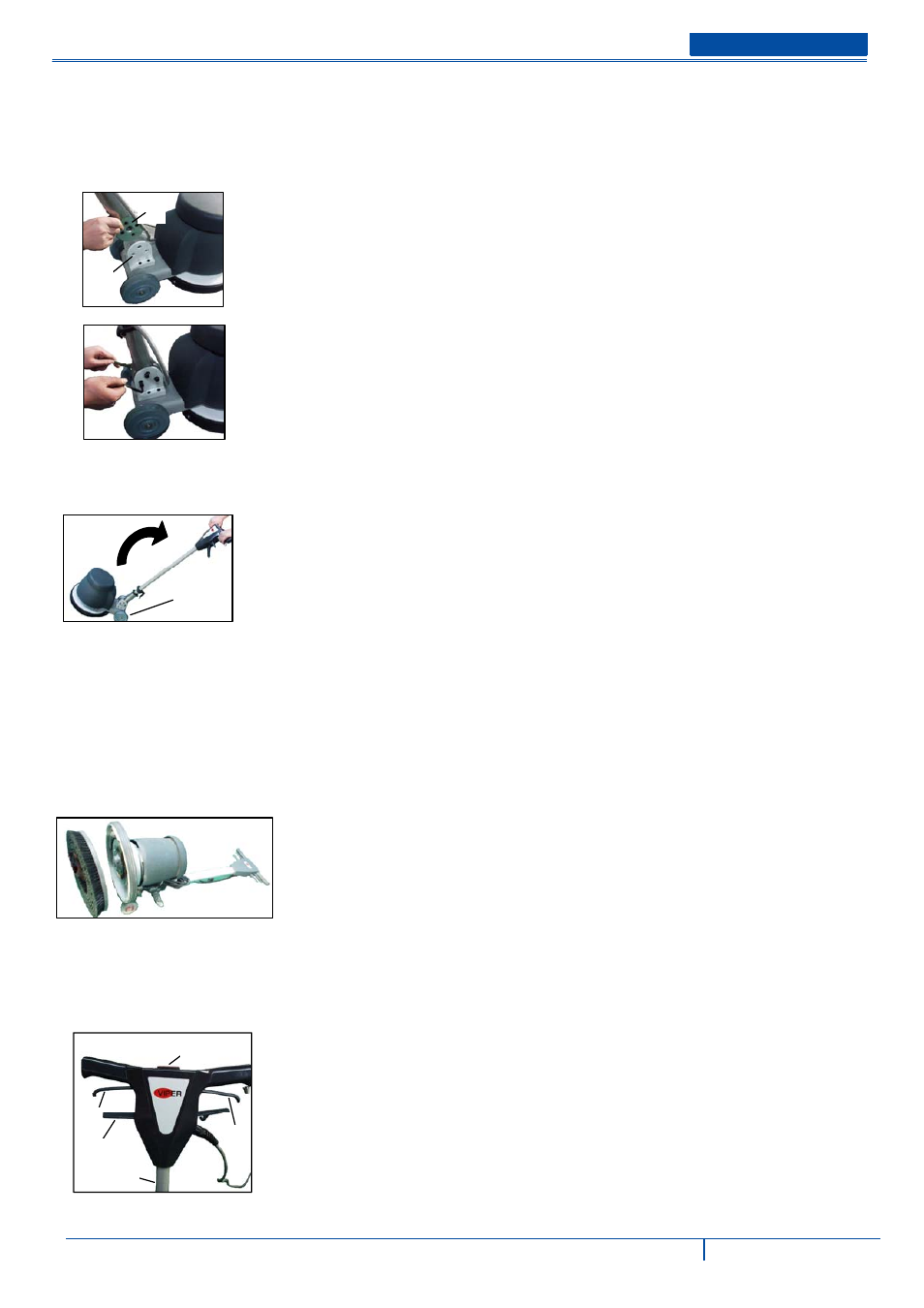

ASSEMBLY
For transport reasons the motor head and shaft are supplied not assembled.
1] Insert the gear index housing (1) into the “U” shape bracket (2).
2] Align the holes of the gear index housing and the “U” shape bracket.
3]Insert the socket screws into the holes of the “U” shape bracket and then
tighten the screws.
4] Wind the power cord around the handle and the power cord hook.
TRANSPORT
1] Place the handle in the upright position, Grasp the handle with both hands
and tip the cleaner until it stands on the two wheels (1).
2] Wheel the cleaner to where it is needed.
OPERATION OF THE MACHINE
BASIC OPERATION
1] Remove any obstructions or other obstacles in the area which is to be
cleaned.
2] Place the handle in the upright position and tilt machine back until handle
rests on the floor.
*Be sure the machine is not plugged into an outlet.
3] Attach the pad driver or brush to the machine by placing the clutch plate
over the gearbox hub and turning the driver / brush 1/4 turn.
4] Place machine back into its upright position.
5] Plug power cord into a grounded outlet.
*Never use an extension cord in conjunction with the standard power
cord.
6] The handle height may be adjusted by pulling the adjustment lever (1) and
lower the shaft (2) into its cleaning position.
7] To start the machine, press the red safety button(3) on the top of the upper
switch housing ,and then squeeze either of the operating triggers(4/5) the
safety button (3) must be depressed prior to squeezing the operating
triggers (4/5).
VF72309 (1)2009-12 VE17P-EU VE17HDP-EU VE17DSP-EU VE17HSP-EU 9
1
2
1
1
4
2
3
5
