Victory participates in the KCL CADalog, the most current source of CAD symbols for foodservice designers worldwide. Symbols include
standard equipment in plan, side, front and 3-D views, layered for FEDA/FCSI recommended guidelines.
Continuous product development may necessitate specification changes and design without notice.
Victory Refrigeration, Inc. Big Top Salad/Sandwich Refrigerators
CHARACTERISTICS VUR-5-18BT VUR-5-24BT
Width, Overall 60 60
Depth, Overall 34 34
Height, Overall 46 46
Height, Work Area 36 36
Capacity Net (cubic feet) 16 16
No. of Full Doors 2 2
No. of Shelves 4 4
No of 1 /
6
Size Pans 18 24
Cabinet Voltage 115/60/1 115/60/1
Condensing Unit Voltage 115/60/1 115/60/1
Condensing Unit Size (HP) 1 /
3
1 /
3
Total Amperes 8.8 8.8
NEMA Receptacle Required 5-15R 5-15R
Crated dim. & wts. Ht. Width Depth Lbs.
VUR-5-18BT 48 1 / 2 65 1 / 2 39 1 / 2 375
VUR-5-24BT 48 1 /
2
65 1 /
2
39 1 /
2
380
Dimensional tolerance ± 1 / 4 ” Metric dimensions (MM)
Copyright June 2009
Printed in U.S.A. 063009
14.12
(358)
23.94
(608)
AIR FLOW
46.00
(1168)
40.00
(1016)
36.50
(927)
8.50
(215)
34.00
(863)
8.50
(215)
60.12
(1527)
34.00
(863)
22.91
(581)
19.75
(501)
22.91
(581)
19.00
(482) 34.00
(863)
60.12
(1527)
8.50
(215)

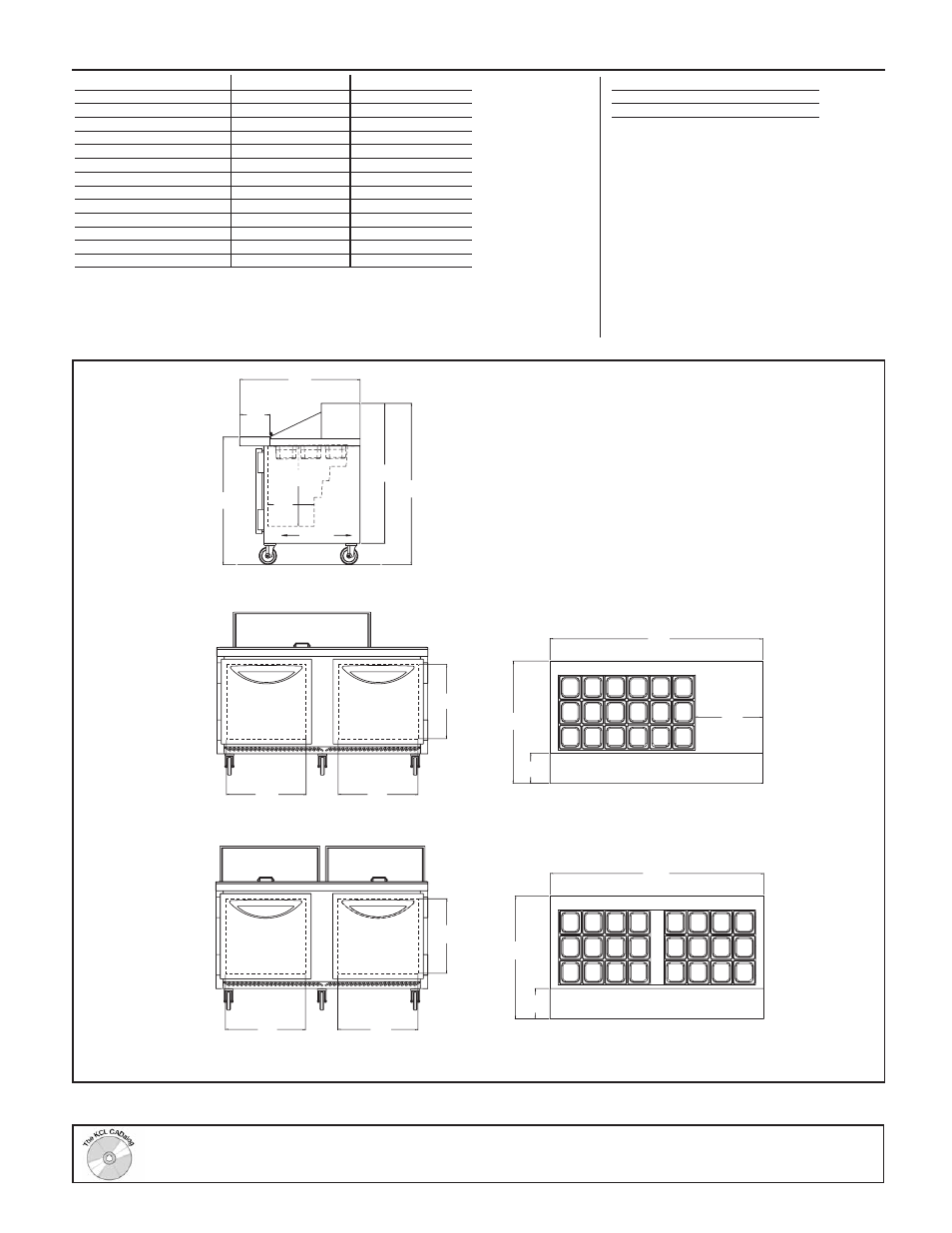

VUR-5-18BT, VUR-5-24BT SIDE VIEW
VUR-5-18BT FRONT VIEW VUR-5-18BT TOP VIEW
VUR-5-24BT FRONT VIEW VUR-5-24BT TOP VIEW
19.75
(501)
22.91
(581)
22.91
(581)
We reserve the right to
change specifications and
product design without
notice. Such revisions do
not entitle the buyer to
corresponding changes,
improvements, additions or
replacements for previously
purchased equipment.
