4

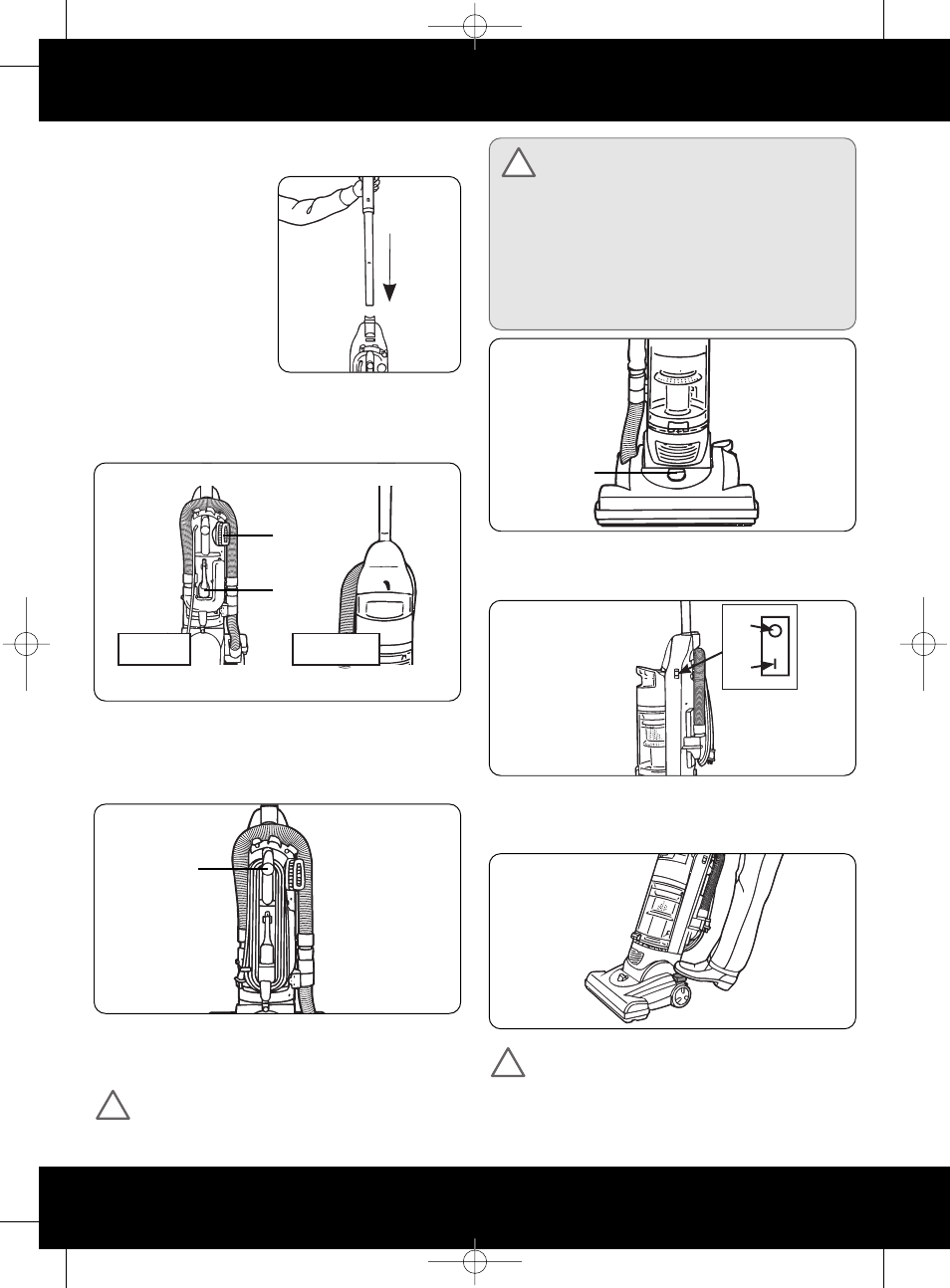

how to assemble / how to operate
3. How to assemble
Handle Assembly
Slide handle through top of
back panel until it snaps
into place.
Tool Storage
Attach tools: (a) Slide the dust brush into the hole on the
back of the cleaner with bristles facing out. (b) Slide the
crevice tool onto round post on the back of the cleaner
and snap into place (Fig.3/2).
4. How to operate
Cord release
Turn Quick Cord Release for easy cord removal.
Carpet height adjuster
Turn the carpet height adjuster knob to match the
surface being cleaned.
IMPORTANT: For easiest adjustment, place
cleaner in full upright position.
On/Off Switch
Plug cord into electrical outlet. Turn cleaner on by
pressing the on/off switch located on the side of unit.
Handle Release Pedal
To release handle, push the handle release pedal located
on the lower left side of the cleaner.
CAUTION: Brushbar continues to rotate while hose
is removed or in use and at all times while cleaner
is on. Keep hair, loose clothing, fingers, and all parts of
body away from brush area while cleaner is on. Cleaner
must be in the upright position to lift the rotating brush
off the carpet when cleaning above the floor.
Fig.3/1
BACK FRONT
Fig.3/2
Fig.4/1
Fig.4/2
ON
OFF
Fig.4/3
Fig.4/4
!
a
b
!
Cord Release
Height adjuster
WARNING: This cleaner has a constantly
rotating brush bar which, when left in contact
with lino, parquet and other hard flooring could
potentially cause some damage to the floor surface.
NOTE: Vax recommends that you raise the height of
the brush bar when using this cleaner on lino and hard
flooring. Vax cannot be held responsible for damage to
these surfaces if the customer fails to take notice of
this recommendation.
!
