2. Set up the EtherneTV-NXG Server

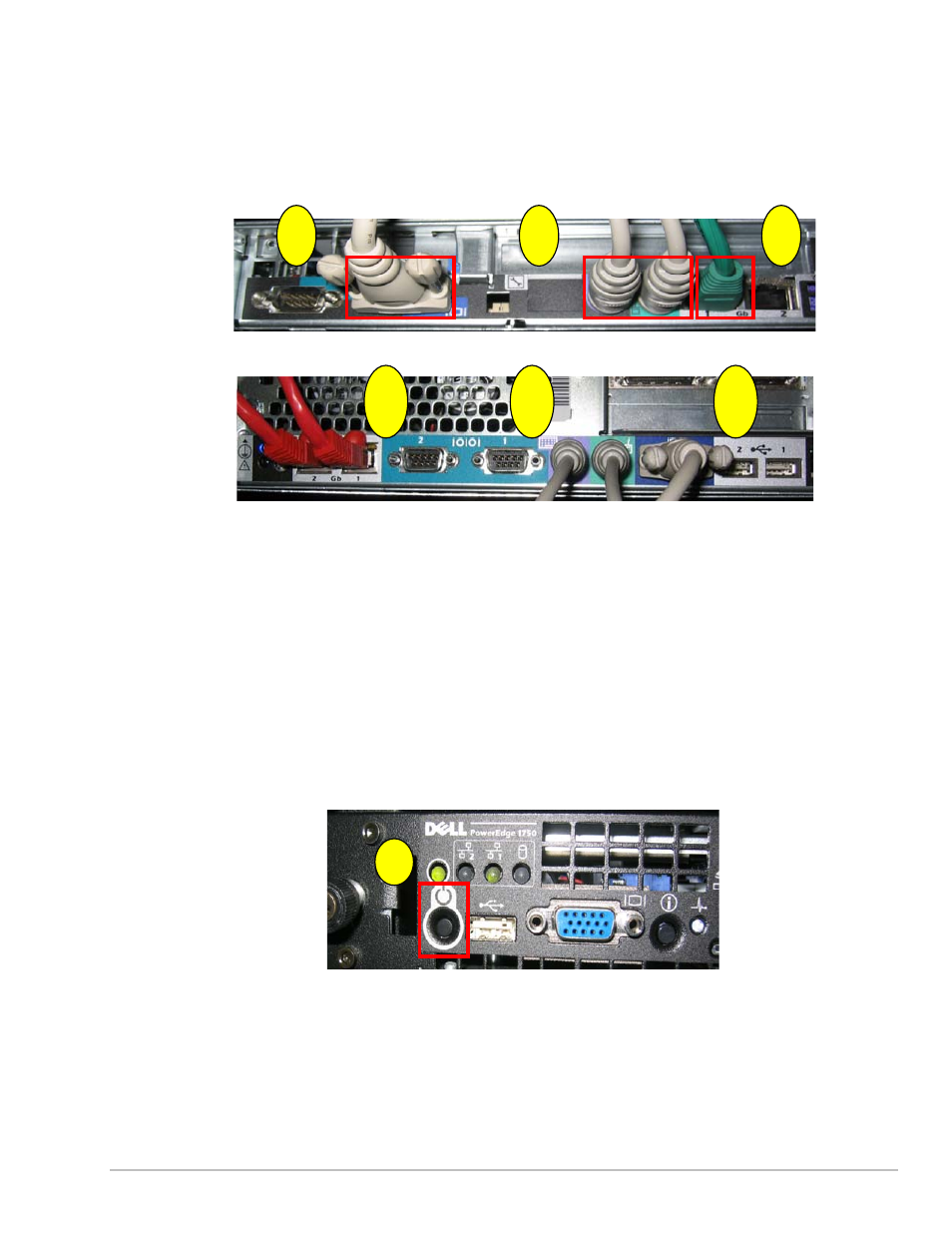

1. Connect monitor, keyboard and mouse on the back of the unit, following these steps:
NXG-1
NXG-2
• If rack mounting the unit, mount the EtherneTV-NXG server in the rack, using the
rack mount kit provided.
• Connect the EtherneTV-NXG server to the network by plugging the 10/100/1000
BaseT Ethernet cable into the Ethernet port 1 c on the rear of the unit.
• Connect the monitor cable to the video port at the back of the EtherneTV-NXG
server d . Turn the monitor on.
• Connect a mouse and keyboard to the appropriate ports at the back of the
EtherneTV-NXG e
• Plug the EtherneTV-NXG server into a power source, using the power cord
provided.
• Turn the EtherneTV-NXG server’s main power on by pressing the power switch at
the front of the unit. f
• NOTE: the EtherneTV-NXG server will boot and automatically load using the default
settings – this may take several minutes.
4
2 3 1
2 3 1
