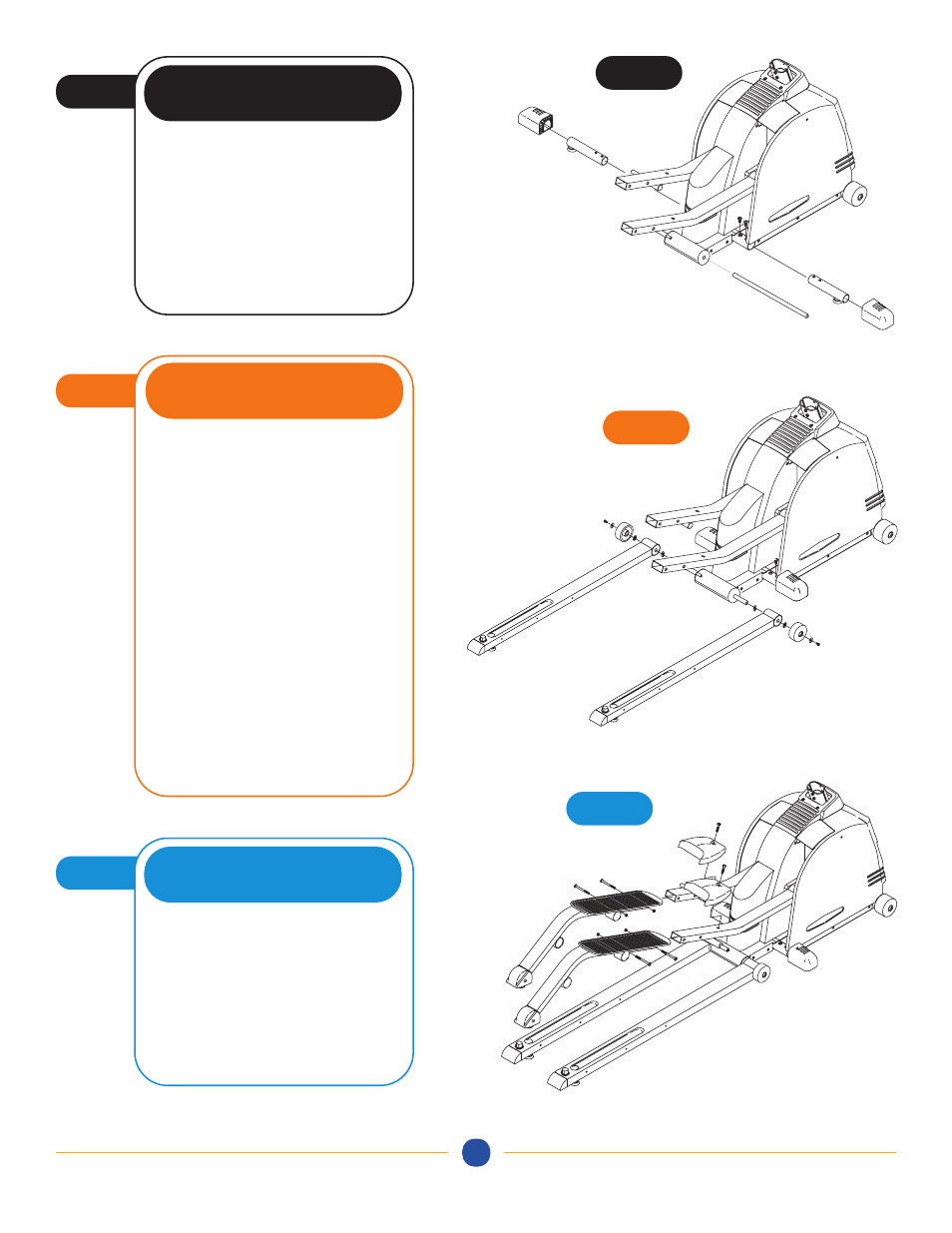

Vision Fitness X6200HRC/DA - Manual (Page 5)

5
1
STEP
• Install the left and right stabilizers
with the four bolts (M8 x 16
MM ), using
the Blue 5 MM Allen wrench.
• Cover both stabilizers with the
included rubber boots.
• Insert the rear folding axle shaft
(440
MM L x19 MM D) into the rear tube.
BLACK BAG
1
STEP
2
STEP
• Slide a spring washer (M16 x .3T)
onto the right-hand side of the rear
folding axle, followed by the right-
hand pedal arm guide rail (the guide
rails each have a blue indicator arrow
printed on their sides; these arrows
should face to the outside).
• Slide a flat washer (M16 x 1.5T)
onto the right-hand side of the rear
axle, followed by a rear wheel.
• Slide the large flat washer
(5/16” x 1.5T) onto the right-hand
side of the rear axle, and secure with
a bolt (M8 x 16
MM ).
• Repeat above steps to install left-
hand pedal arm guide rail.
ORANGE BAG
2
STEP
3
STEP
3
STEP
• Mount the rear pedal arms to the
front pedal arms using four bolts
(M8 x 80
MM ) and four 13 MM NyLock
nuts, using the 13 MM wrench.
• Install the foot toe pieces to the front
pedal arms with two bolts (M8 x 45
MM )
using the Blue 5 MM Allen wrench.
BLUE BAG
