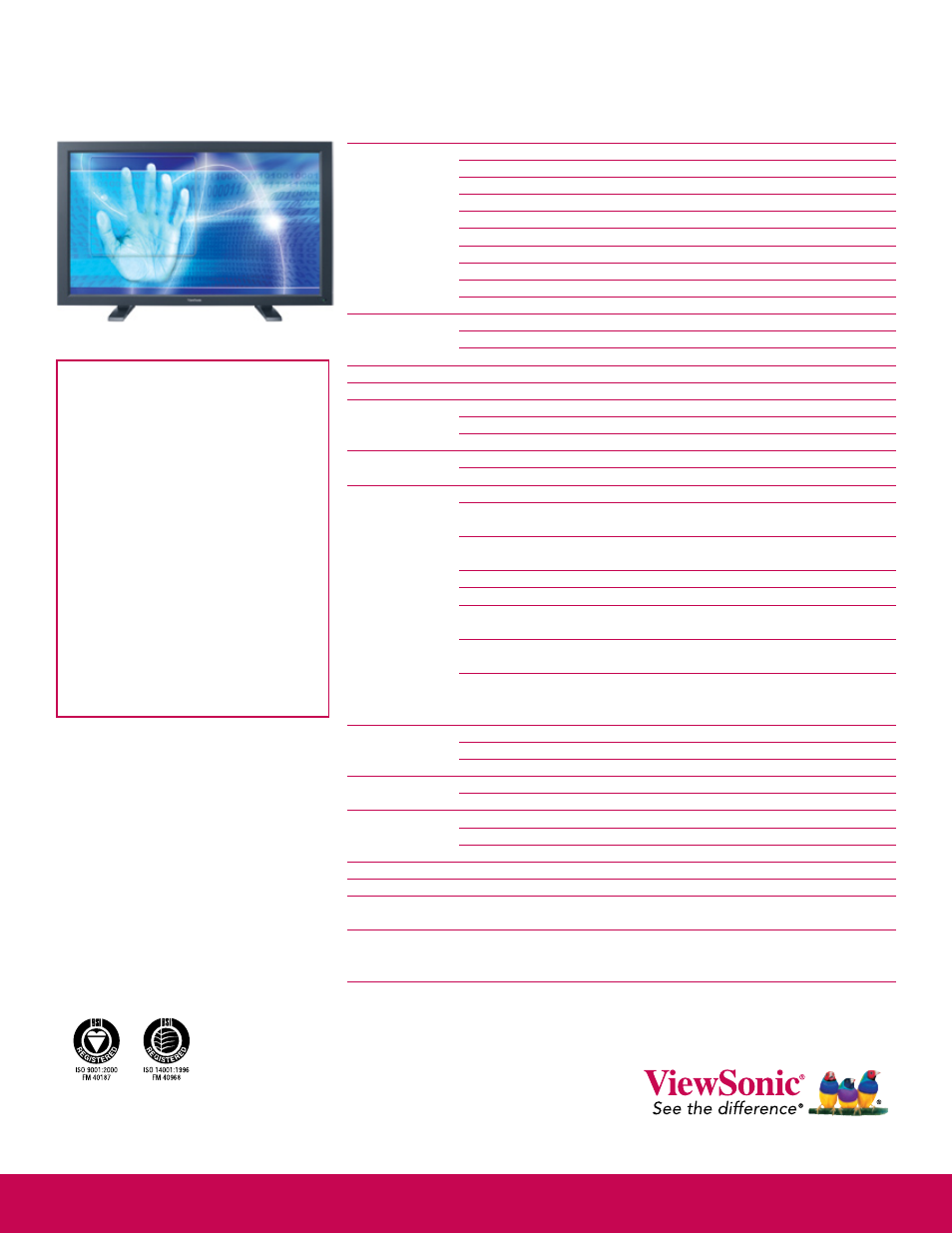

CD4220T
4 2 " C O M M E R C I A L L C D D I S P L A Y W I T H T O U C H S C R E E N
LCD
Type
42" color TFT active matrix, wide LCD
Display Area
36.6" horizontal x 20.6" vertical; 42" diagonal
Optimum Resolution
1366x768
Contrast Ratio
1500:1 (typ)
Viewing Angles
178º horizontal, 178º vertical
Response Time
8ms
Light Source
Long life, 50,000 hrs. (typ)
Brightness
460 cd/m
2
(typ)
Aspect Ratio
16:9
Panel Surface
Anti-glare, hard coating (3H)
INPUT
Video Input
HDMI, S-video, component, composite, RCA
Video Output
VGA, BNC, RCA (x2)
Control Input/Output
RS-232
AUDIO OUTPUT
Speakers
2x10-watt with SRS TruSurround (optional)
INPUT SIGNAL
TV/Video Comp.
480i, 480p, 720p, 1080i
CONNECTOR
Analog
15-pin mini D-sub (VGA)
Digital
HDMI
Power
3-pin plug
POWER
Voltage
AC 100–240V (universal), 50–60Hz
Consumption
246W (typ)
CONTROLS
Front Panel
Exit, channel +/-, volume +/-, input, mute, power
Brightness, contrast, sharpness, black level, noise reduction,
tint, color, color temperature, color control, picture reset
Screen
H. position, V. position, clock, clock phase, zoom mode,
custom zoom, screen reset
Audio
Balance, treble, bass, audio reset
PIP
PIP size, PIP audio, PIP reset
Configuration 1
Auto set up, auto adjust, power save, language, screen
saver, color system, configuration reset, factory reset
Configuration 2
OSD turn off, information OSD, off timer, OSD H. position,
OSD V. position, monitor information
Advanced Option
Input resolution, black level expansion, gamma selection,
scan mode, scan conversion, film mode, IR control, monitor
ID, tiling, date/time, schedule, DDC/CI, advanced option reset
OPERATING
Temperature (landscape) 41–104ºF (5–40ºC)
CONDITIONS
Temperature (portrait)
41–95ºF (5–35ºC)
Humidity
20–80% (non-condensing)
DIMENSIONS
Physical with stand (optional) 40.2" x 5.5" x 15.9" (1022mm x 647mm x 405mm)
(W x H x D)
Physical without stand
40.2" x 24.1" x 5.0" (1022mm x 611mm x 126mm)
WEIGHT
Net with stand (optional) 79.8 lb. (36.2 kg)
Net without stand
75.9 lb. (34.4 kg)
Gross without stand
86.5 lb. (39.2 kg)
VESA
®
MOUNT
400mm x 200mm
REGULATIONS
UL/cUL, FCC, NOM, UCIEE, S-Mark, ICES 003
RECYCLE/DISPOSAL
The lamp in this product contains mercury. Please
dispose of in accordance with local or federal laws.
PACKAGE CONTENTS
LCD display with DST touch screen, power cable,
video cable, remote control with batteries, Quick Start
Guide, ViewSonic Wizard CD, DST User Guide
WARRANTY
Three-year limited warranty on parts, labor and backlight
For more product information, visit us on the web at ViewSonic.com
Sales: (888) 881-8781 • [email protected] • ViewSonic.com
Specifications subject to change without notice. Selection, offers and programs may vary by country; see your ViewSonic representative for complete details. Corporate names, trademarks stated herein are the property of
their respective companies. Copyright © 2009 ViewSonic Corporation. All rights reserved. [14200-01C-12/08] CD4220T-1
ViewSonic Corporation’s QMS & EMS have been
registered to ISO 9001 & ISO 14001, respectively,
by the British Standards Institution.
3M Dispersive Signal
Technology (DST)
Features highly accurate and repeatable
touch response on a glass surface that is
scratch resistant and unaffected by surface
contaminants. The 3M MicroTouch
™
DST
Touch System glass offers superior wear
resistance and excellent optics with
91.5% light transmission.
Input can be performed with your finger
or any pointing device. With 99% input
accuracy, the CD4220T with 3M DST
touch controls is the ideal solution for
your interactive signage needs.
More information about 3M MicroTouch
™
DST Touch Systems can be found at
www.3M.com/touch.
