SPECIFICATIONS
Vestax Corporation
NOMINAL INPUT LEVEL IMPEDANCE
PHONO 42dB 470k
LINE 10dB 47k
MIC 42dB 3.3k
EFFECT RCV 10dB 47k
RATED OUTPUT LEVEL IMPEDANCE
LINE OUT 4dB 10K
REC OUT 10dB 10k
EFFECT SEND 10dB 10k
FREQUENCY RESPONSE 20Hz 20kHz ( 0 3dB)
S/N RATIO 80dB
DIMENSION ( WXHXD ) 290mmX 94mm X 380mm
WEIGHT 5kg
PGM 2 SUB PGM 1 OUTPUT EFFECT
R
R
L
L
MASTER OUT 1 R R L L SEND
ON
OFF
LINE 6
R L
LINE 5
PHONO 3
R L LINE 2
LINE 1
PHONO 1
LINE 3
PHONO 2
RETURN
MASTER OUT 2
GND GND
MADE IN CHINA SERIAL NO.
AC100V 50 / 60Hz 20W
POWER
30 33 32
31 28
35 34 29
28 POWER SWITCH
The first LED of MASTER OUT LEVEL METER
that is located on the top panel is lit when on.
29 AC POWER CABLE
30 OUTPUT JACK(1/4inch PHONE JACK, RCA
PIN JACK)
Connect to the input of power amplifier.
31 EFFECT SEND JACK
Connect the SEND jacks to the input of an external
effector unit(Delay,Reverb etc)
32 EFFECT RETURN JACK
Connect the RETURN jacks to the output of the
effector.

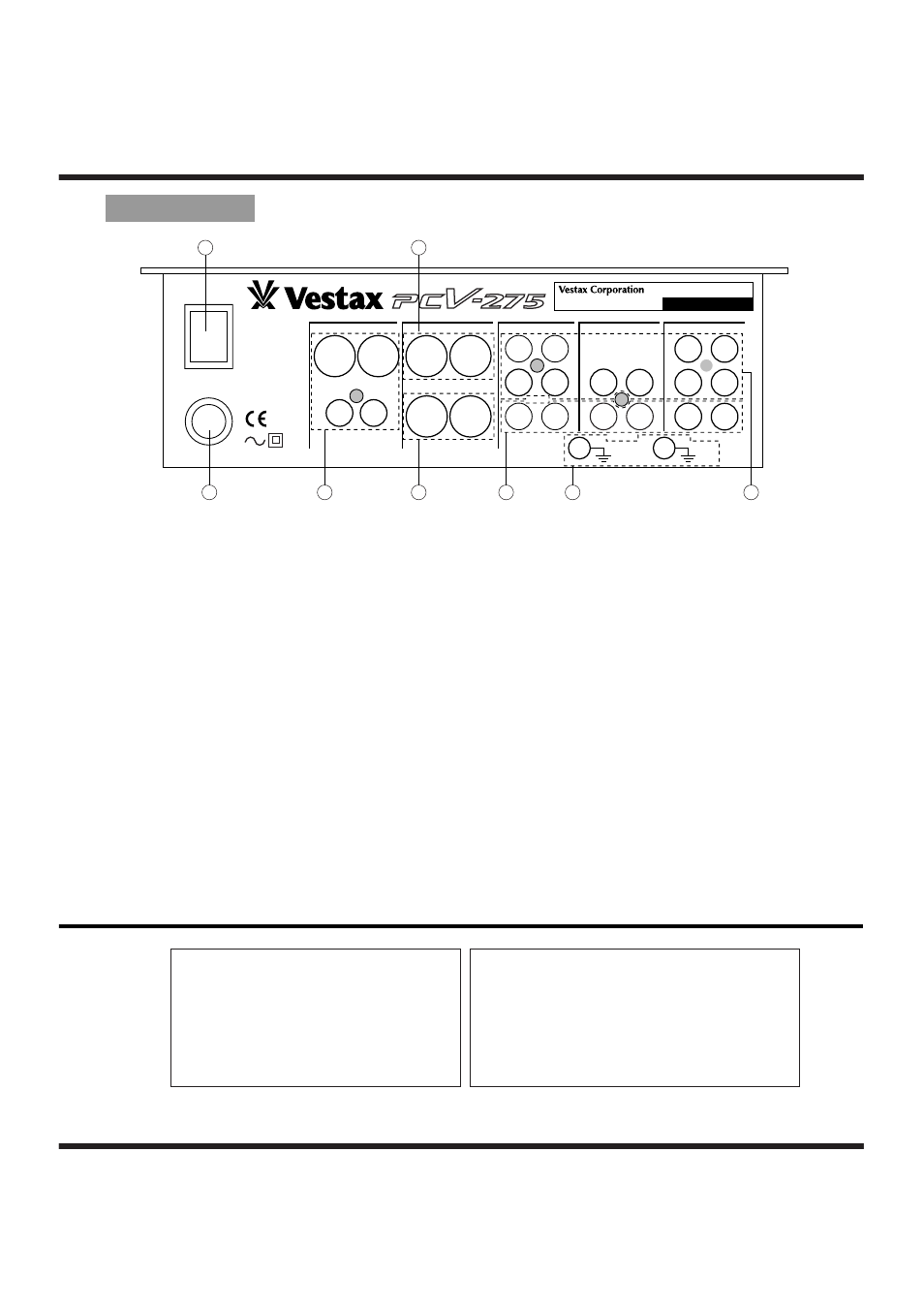

REAR PANEL
33 PHONO INPUT JACK
Input jack for PGM1,PGM2 and SUB channel
turntables.
Connect turntables equipped with the MM pick up
cartridge only.
34 LINE INPUT JACK
Input connectors for the line level equipment such as
CD players, tape decks, DATs, MDs.
35 GROUND TERMINAL
Connect this terminal to the ground lead of the
turntable. This helps to reduce noise and hum.
May.2001 PCV-275 E2
