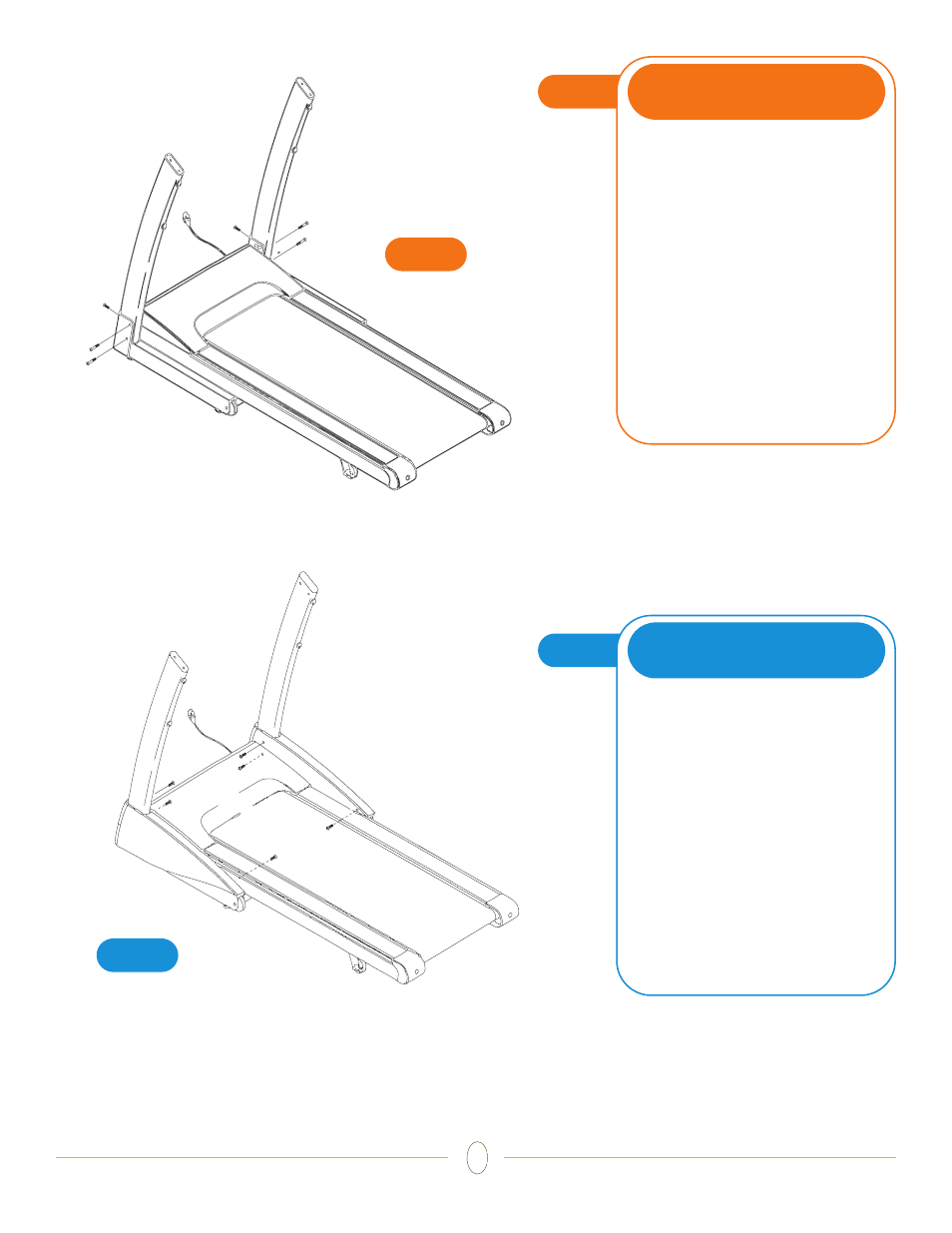

STEP

• Fold up the right-hand console mast
to the vertical position. Be sure not to
pinch the data cables.

• Insert the bolt (M8 x 50L) in the side
and tighten with the blue-handled 5mm
Allen Wrench.

• Insert one bolt (M8 x 20L) in the front
and tighten with the blue-handled
5mm Allen Wrench.

• Repeat this on the opposite side.

NOTE: There are no data cables on
the left side.

ORANGE BAG

STEP

• Slide the base side covers down the
left-hand and right-hand console
masts.

• Fold the treadmill to the vertical
position.

• Secure the right-hand base side
cover to the base frame. Use the
V-head screw (M4 x 12L) for the rear
of the cover and the Flat screws
(M4 x 12L) for the front of the cover.
Repeat this step on the left-hand side.

• Unfold the treadmill.

BLUE BAG
