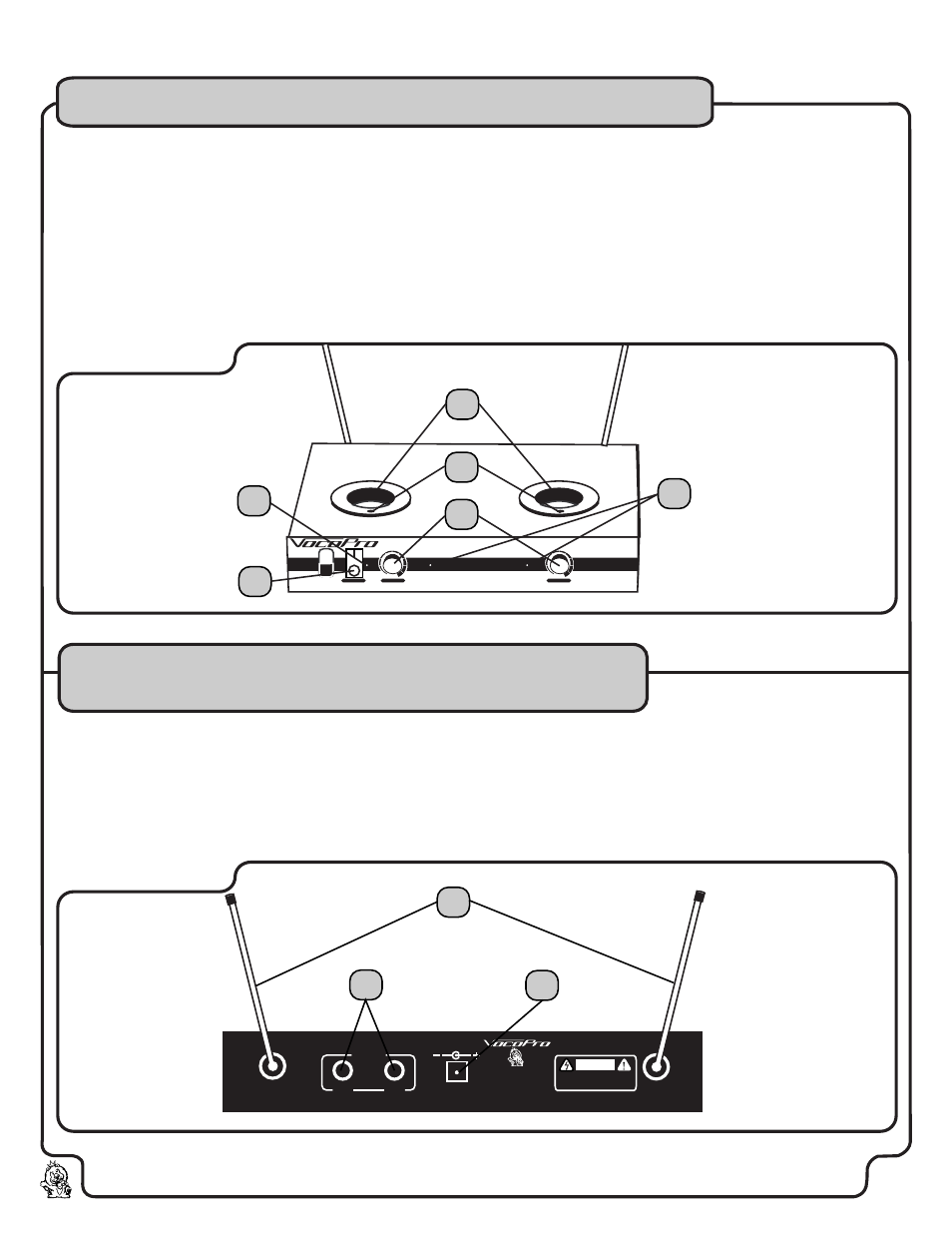

Front Panel Descriptions and Controls
6
Front Panel
Rear Panel
1. POWER BUTTON: Turns the VHF-3300 ON/OFF.
2. POWER ON LED: Glows RED when the receiver is powered ON.
3. RF SIGNAL LED: Glows GREEN when Radio Frequency signals are received by antenna A and/or B.
4. VOLUME CONTROLS: Adjusts the OUTPUT volume of the receiver’s mic channels.
5. CHARGING TERMINAL: Makes contact with mic base to charge batteries or holds mic in between charges.
6. CHARGING INDICATOR LIGHT: Illuminated while microphones are charging.
1. TELESCOPING ANTENNAE: Receives the SIGNALS sent from the microphones.
2. OUT A & B: These 1/4” jacks provide mic output for connection to amplifiers and mixing consoles.
3. POWER INPUT: Accepts POWER from supplied AC adaptor.
Rear Panel Descriptions and Controls
ON
OFF
VHF-3300
POWER CH. A
VOLUME VOLUME
CH. B
RF RF WIRELESS VHF DUAL CHANNEL
RECHARGEABLE MIC SYSTEM
1
1
6
5
3
3
4
2
2
ANT.B ANT.A CH A CH B DC 12V
0~400 MV
(FOR MIXED OUTPUT USE EITHER CH. A/B TO
OUTPUT A MIXED MIC SIGNAL WITH A SINGLE CABLE)
OUTPUT
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WWW.VOCOPRO.COM
LA VERNE CALIFORNIA
U S A
