NORSEMAN™ 1500/2500 FuRNAcE
VGZ-018 / 051809.0
iNstAllAtioN ARRANgEMENts continued …

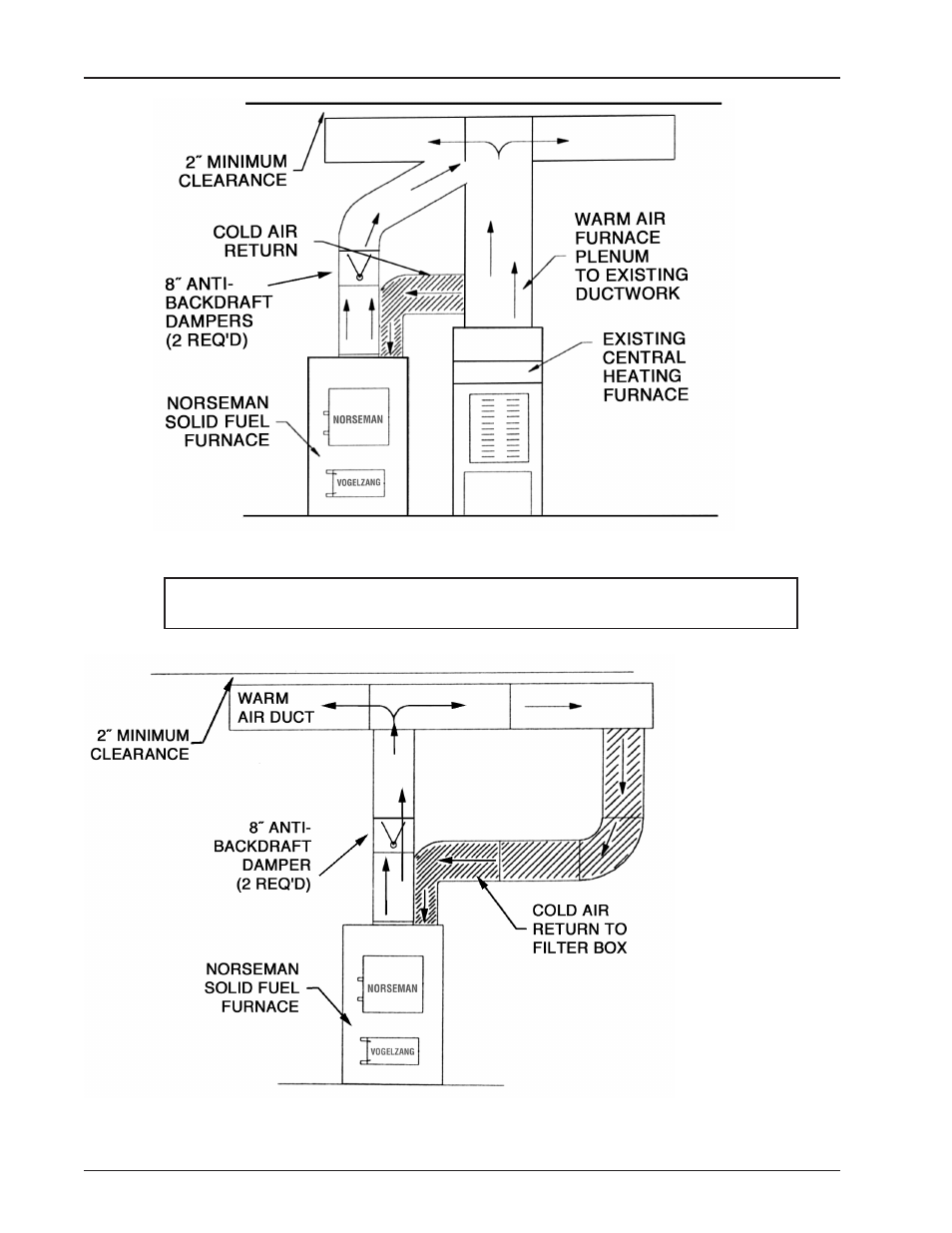

Fig. 22 – Add-on
Angled plenum
Fig. 23 – Central
Furnace installation
NotE: to prevent damage from overheating, backdraft Dampers MUst be used
and installed no closer than 18 inches to the top surface of the furnace.
