VOX Amplification USA AC4TVH - Manual (Page 4)

4

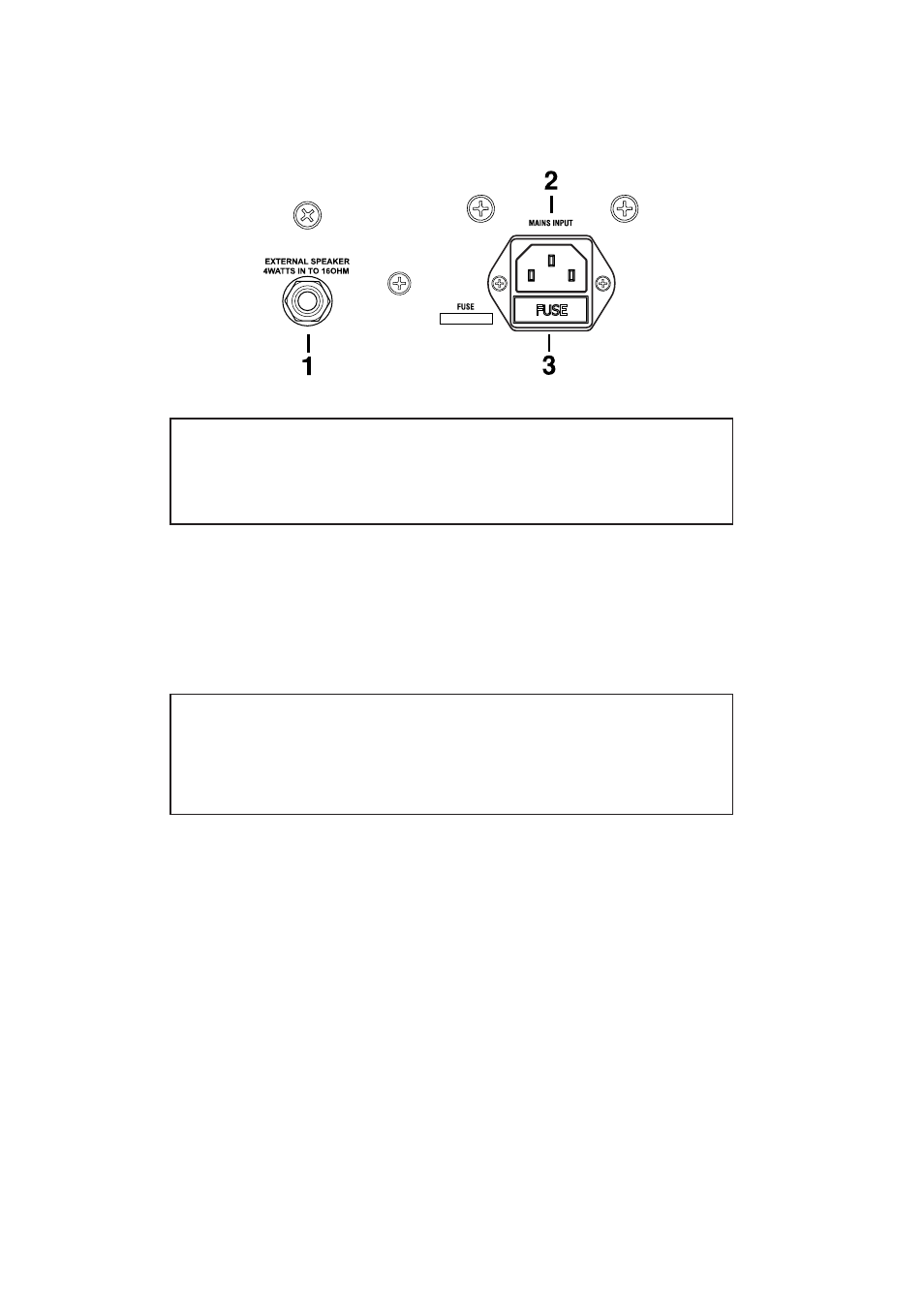

REAR PANEL LAYOUT
1. SPEAKER Jack - This is used to connect the AC4TVH to any 16ohm cabinet.
WARNING ! Always use a non-screened VOX approved speaker lead with
the AC4TVH Amplifier and extension cabinets.
WARNING ! NEVER operate this amplifier without the loudspeaker load
being connected. Serious damage can occur otherwise.
2. MAINS INPUT - Connect your electricity here with the supplied, detachable Mains (power)
cord.
3. MAINS FUSE - (serious bit) The fuse provides an overall safety protection in the event
your amplifier develops and electrical fault.
The correct value of the fuse is located on the rear panel of your amplifier and should only
be replaced with one of the same value.
WARNING ! Please ensure that your amplifier is connected to the correct
mains power voltage—please check the rear panel rating plate.
If in doubt consult dealer.
WARNING ! This amplifier must always be earthed (grounded) to prevent
the risk of electrical shock.
SPECIFICATIONS
Power Output: 4 Watts RMS into 16 ohm
Dimensions (W x H x D): 353 x 211 x 246 mm/13.9 x 8.31 x 9.69 inches
Weight: 6.1 Kg/13.45 lbs.
Included items: Power cable, Owner’s manual
Specifications and appearance are subject to change without notice for improvement.
