Vanguard Heating UNVENTED (VENT-FREE) NATURAL GAS LOG HEATER - Manual (Page 9)

9 105273
OWNER’S MANUAL
INSTALLATION
Continued

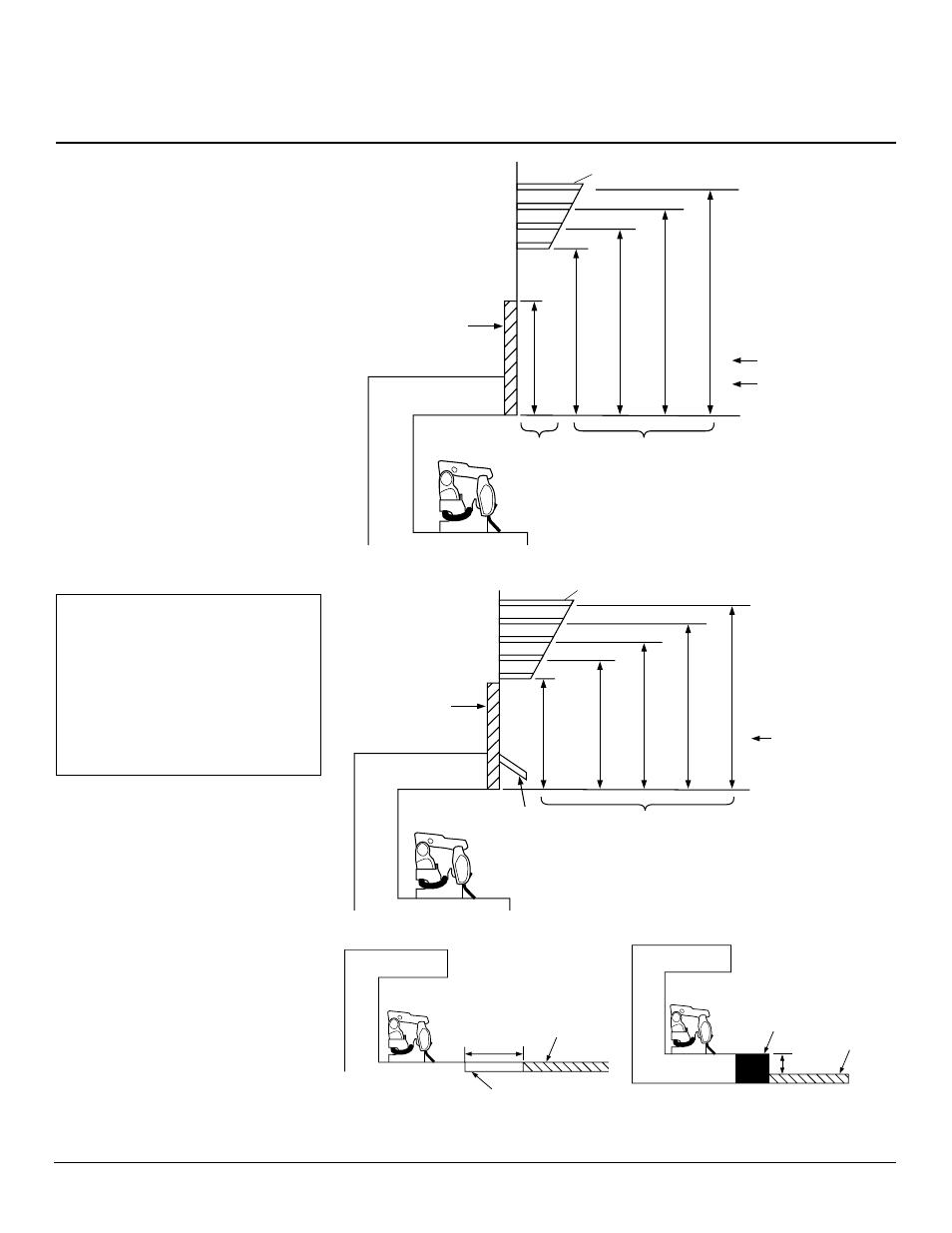

Figure 6 - Minimum Mantel Clearances Without Using Hood
Figure 7 - Minimum Mantel Clearances When Using Hood
Continued
MANTEL CLEARANCES
In addition to meeting noncombustible ma-
terial clearances, you must also meet re-
quired clearances between fireplace opening
and mantel shelf. If you do not meet the
clearances listed below, you will need a hood.
Determining Minimum Mantel
Clearance
If you meet minimum clearance between
mantel shelf and top of fireplace opening, a
hood is not required (see Figure 6).
Determining Minimum Mantel
Clearance When Using a Hood
If minimum clearances in Figure 6 are not
met, you must have a hood. When using a
hood there are still certain minimum mantel
clearances required. Follow minimum clear-
ances shown in Figure 7 when using hood.
Minimum Non-
Combustible
Material
Minimum Non-
Combustible
Material Height Distances to
Underside of
Mantel
Top of Fireplace
Opening
Underside of
Mantel Shelf
Mantel Shelf
12"
8"
(A)
18"
8"
20"
14"
22"
16 3/4 "
24"
20"
All minimum
distances are
in inches
Log Set
24"/30"/36" Models
18" Model
2 1
/2 "
6"
8"
10"
Minimum Non-
Combustible
Material
8"
Min. 12" 15" 18"
All minimum
distances are
in inches
Log Sets
All Models
20"
2 1
/2 "
6"
8"
10"
12"
Distances to
Underside of
Mantel
Hood
(GA6050, GA6052)
Top of Fireplace
Opening
Underside of
Mantel Shelf
Mantel Shelf
FLOOR CLEARANCES
A. If installing appliance on the floor level,
you must maintain the minimum dis-
tance of 14" to combustibles (see Fig-
ure 8).
B. If combustible materials are less than
14" to the fireplace, you must install
appliance at least 5" above the combus-
tible flooring (see Figure 9).
Figure 8 - Minimum Fireplace Clearances
If Installed at Floor Level
Figure 9 - Minimum Fireplace Clearances
Above Combustible Flooring
14"
Min.
Combustible
Material
Non-Combustible Mate
Hearth
5"
Min.
Com
Mat
Combustible
Material
Noncombustible Material
14"
Min.
Hearth
5"
Min.
Combustible
Material
NOTICE: If your installation does
not meet the minimum clearances
shown, you must do one of the
following:
• operate the logs only with the
flue damper open
• raise the mantel to an accept-
able height
• remove the mantel
Hood
(GA6050, GA6052,
or GA6053)
