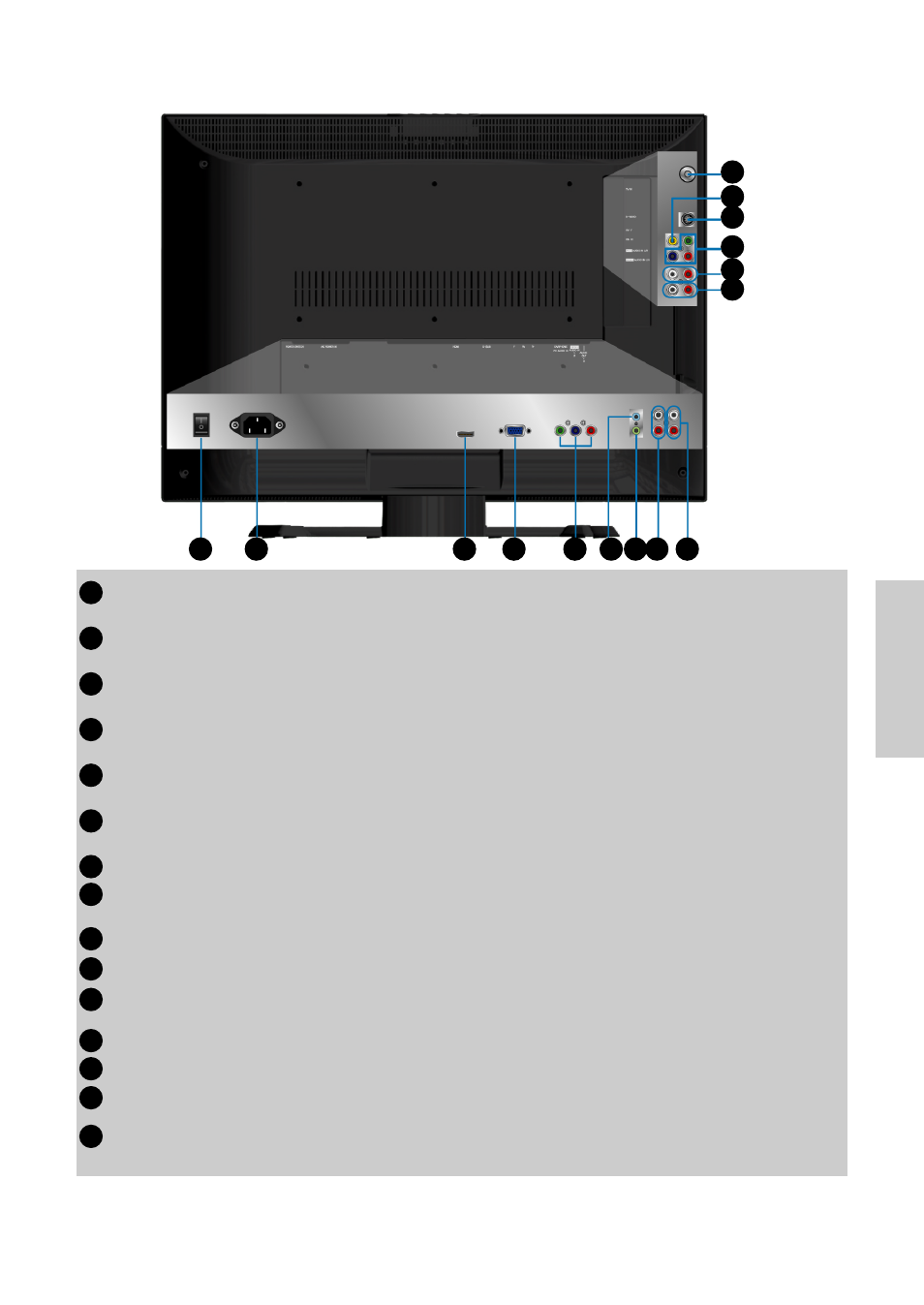

Rear view of the product – VIEWSONIC N3250w User Manual
Page 8
E
N
G
L
I
S
H
TV signal input
Connect to the antenna or cable servic
e.
A
I
H
G
F
E
D
C
B
HDMI signal input
VGA signal input
YPbPr signal input
Connect the external video devices with progressive component output to these jacks.
J
K
Earphone output (light blue)
PC Audio input (light green)
YPbPr signal Audio input (left/right)
Connect the external audio into this jack.
Audio output
Connect this port to your external speaker.
O
N
M
L
ViewSonic N3250w 7
Rear View of the Product
D
A
B
C
F
G
E
J
L
K
O
N
M
I
H
AV Video input
Connect the external video devices such as VCR, DVD and video game into this jack.
S-Video input
Connect the external video device such as VCR, DVD and video game into this jack.
YCbCr signal input
Connect the external video device with component output to these jacks.
AV/ S-Video signal Audio input (left/right)
Connect the external audio into this jack.
YCbCr signal Audio input (left/right)
Connect the external audio into this jack.
AC power switch (Default = ON)
Power (AC input)
Using cable provided, connect to a power source.
