2 STEP
• Locate the seat rail adjustment lever on
the right side of the seat frame. Remove
the socket head bolt from the front hole in
the lever. Rotate the seat lever into
alignment on the bracket. Reinsert the
socket head bolt and tighten both bolts
with the 4mm L-shaped wrench.
• Take the seat frame handlebars and
connect the heart rate wires exiting its
center to the heart rate wires coming from
the seat frame. Mount the seat
handlebars to the seat frame with two
bolts (M8x20) and two lock washers
(SW8) to the rear set of holes. Tighten
with the 5mm T-shaped wrench.
• Set the seat bottom support onto the
main seat frame so that the rear set of
holes line up over the front set of holes on
the handlebar bracket. Secure in place
with four bolts (M8x20) and four lock
washers (SW8). Tighten with the 5mm
T-shaped wrench.
• Mount the seat bottom cushion to the
seat bottom support with four bolts
(M6x55) and four lock washers (SW6).
Tighten with the 4mm L-shaped wrench.
• Take the seat tilt adjustment lever and
slide it in place over the seat tilt
adjustment block, making sure the handle
of the seat tilt adjustment lever is pointing
up. Tighten the two set screws in the seat
tilt adjustment lever bracket using the
5mm L-shaped wrench.
• Slide the frame of the mesh seat back
into the seat frame. Secure using six bolts
(M6x12). Tighten using the 4mm
L-shaped wrench.
BLUE BAG
3 STEP
• Slide the console mast cover onto
the console mast.
• Use the wire tie coming from the
bottom of the console mast to wrap
around the wire harness and heart rate
wires that are sitting in the frame bracket.
• Pull the wire tie up through the
console mast so the wire harness and
heart rate wires exit the top of the mast.
• Slide the bottom of the console mast
over the frame bracket. Insert a set
screw (M8x10L) to the front edge of
the mast and tighten until snug with the
4mm L-shaped wrench. Use the
T-shaped 5mm wrench to secure the
four bolts (M8x15L) and four lock
washers (SW8) to the sides of the
console mast bracket.
• Mount the console mast handlebar
to the console mast with two bolts
(M8X20L) and two lock washers
(SW8). Tighten with the T-shaped
5mm wrench.
• With a screwdriver remove the four
mounting screws from the backside of
the console. Connect the heart rate
wires and the wire harness to the pin
connectors on the backside of the
console. Mount the console to the
console mast using the four mounting
screws and the screwdriver.
• Slide the console mast cover into place
so it integrates with the side covers.
• Mount the water bottle cage to the
console mast with the screws located
on the console mast.
PINK BAG
4 STEP
• Attach left pedal strap to left pedal
and right pedal strap to right pedal.
• Attach right pedal to right crank arm
and left pedal to left crank arm.
Tighten with the 15mm pedal wrench.
PEDALS
1 STEP
4 STEP
1 STEP
• Slide the rear foot into place on the
frame. Secure the foot in place with two
bolts (M8x25L) and two lock washers
(SW8) to the outside holes and with
two bolts (M8x70L) and two lock
washers (SW8) to the inside holes.
Tighten with the T-shaped 5mm wrench.
ORANGE BAG

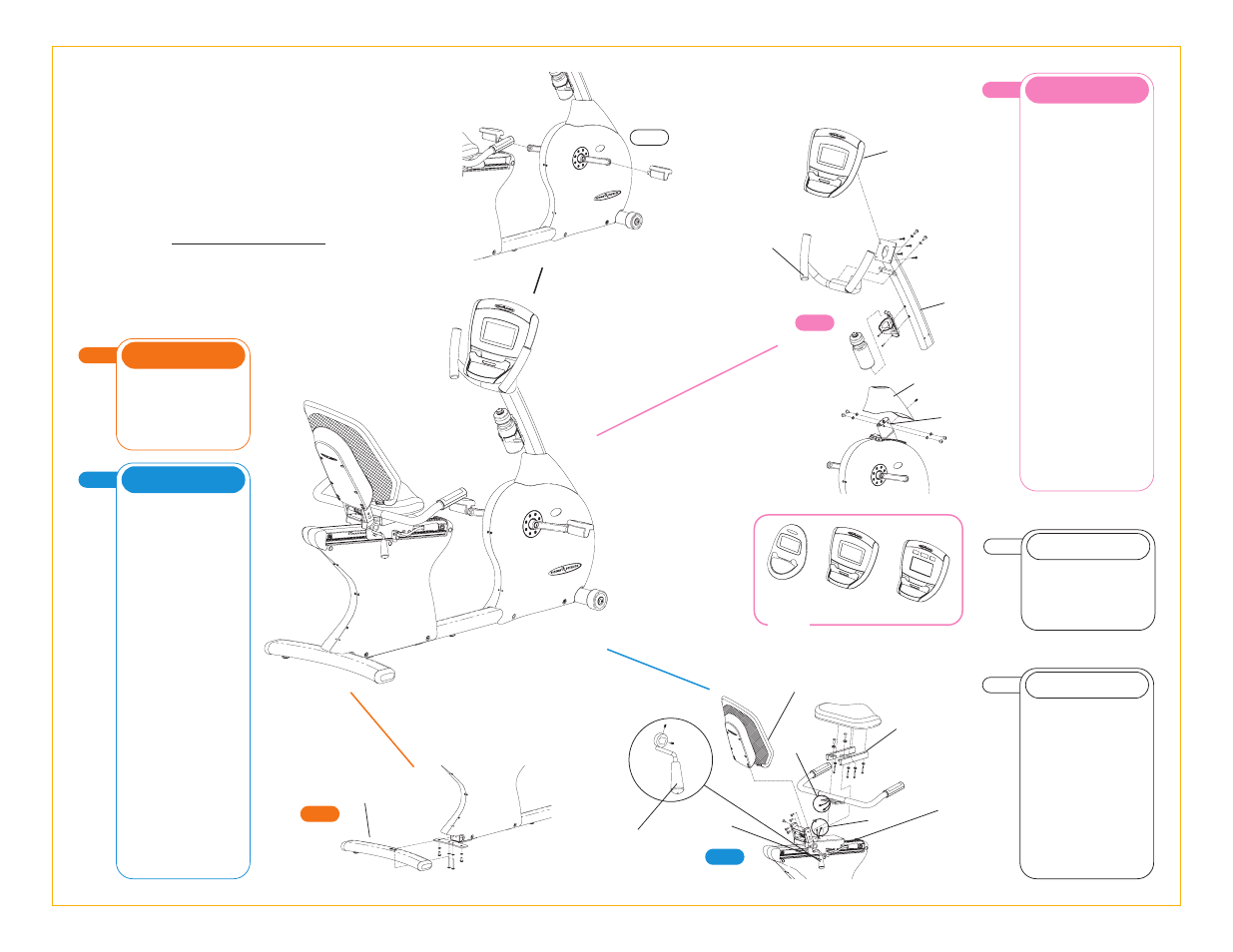

To avoid possible damage to this Fitness Bike, please follow these assembly steps in the correct order. Before
proceeding, find your new Fitness Bike’s serial number located on the front axle tube, and enter here:
Refer to this number when calling for service, and enter this serial number on your Warranty Card and in
your own records. Be sure to read your Owner’s Guide before using your new Fitness Bike.
If any parts, hardware or tools are missing, please call 1.800.335.4348
NOTE: It is recommended that you apply grease to the threads of each bolt and screw as you assemble
your Fitness Bike to prevent loosening and noise. Also, during each assembly step, ensure that ALL bolts
and screws are in place and partially threaded in before completely tightening any ONE bolt or screw.
R2250
STEP-THRU SEMI-RECUMBENT FITNESS BIKE
2 STEP
3 STEP
Rear Foot
Seat Bottom
Support
Seat Tilt
Adjustment Lever
Console Mast
Handlebar
Console
Console Mast
Console Mast
Cover
Frame Bracket
B
A
Seat Rail
Adjustment Lever
Mesh
Seat Back
Seat Tilt
Adjustment Lever
A s s e m b l y
G u i d e
SIMPLE
DELUXE
PREMIER
CONSOLES
5 STEP
• Refer to Product Selection and
Model Configuration
decal on
console or follow these steps.
• Once the product is plugged in turn
on the console
• Select product (Bike (BK) or Elliptical
(EP)) using the resistance arrow keys.
Press ENTER to select.
• Select model number (Bike (1500,
2050, 2250, 3200) or Elliptical
(1500, 6000, 6200)) using the
RESISTANCE arrow keys. Press
ENTER to select. Console will reset to
start-up screen.
• The product selection and model
configuration is now complete.
CONSOLE
