Green bag – Vision Fitness X1500 User Manual
Page 8
8
4
STEP

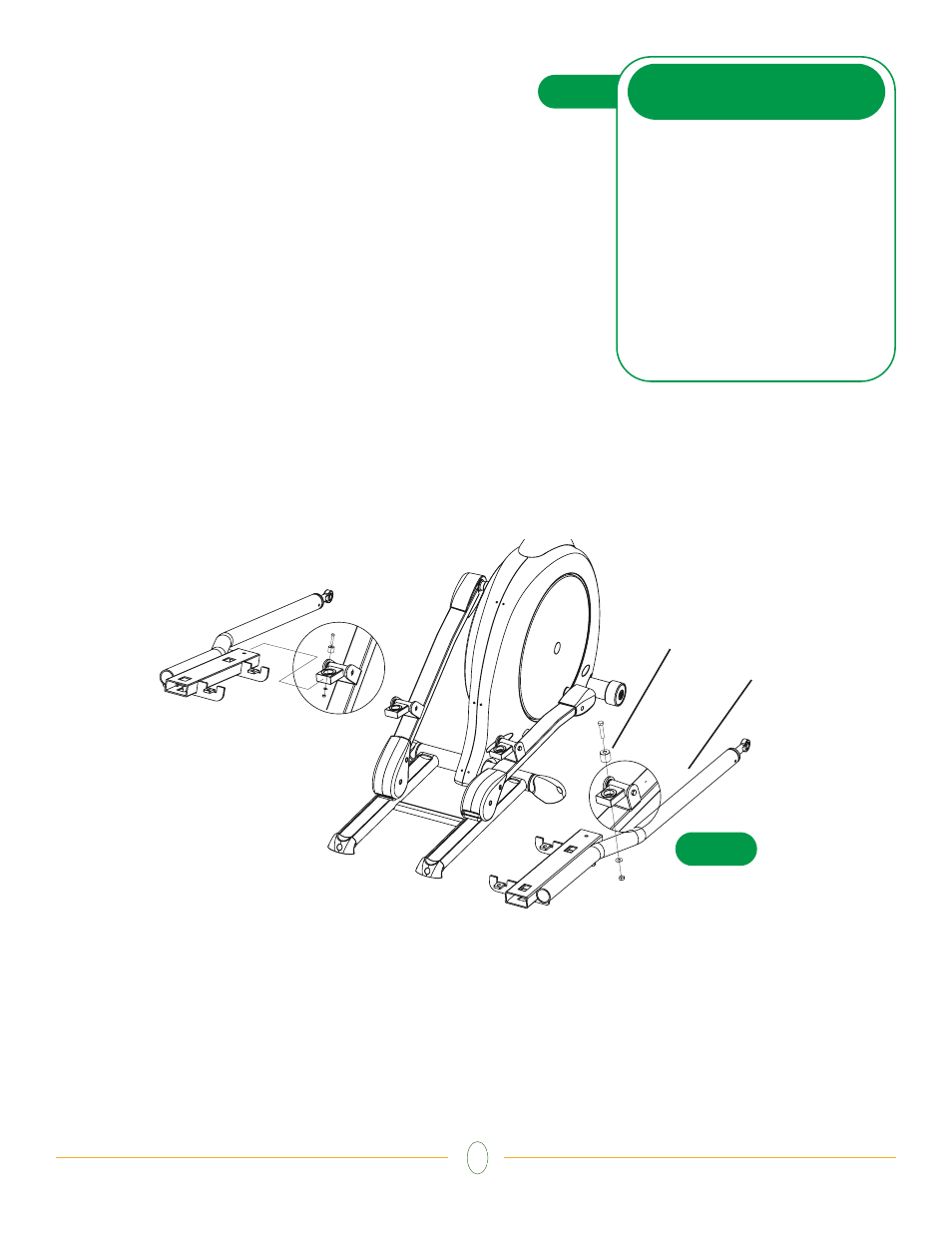

• Slide the knuckle pin (Q235)
through the bushings of the knuckle.
Slide the link arm over the knuckle so
that the hole in the link arm lines up
with the hole in the knuckle pin. Insert
a bolt (M8x40L) through the hole in
the link arm and knuckle pin and
attach a washer (8x18x1T) and nylon
nut (M8) to the end of the bolt.
Tighten with the two 13mm wrenches.
• Repeat the same step on the left side.
GREEN BAG
4
STEP
Link Arm
Knuckle Pin
