INSTALLATION
1. Make a 98 mm diameter hole in a ceiling. (It is possible to
use the supplied pattern paper for a 98 mm diameter
hole.)
2. Attach the supplied gasket to the panel.
3. Connect the input cable to the speaker cable.
4. Using the four supplied speaker mounting screws (3x16),
secure the speaker to the ceiling.
Caution: Ensure that the ceiling surface is strong
(equivalent to the plywood thicker than 5 mm)
enough to hold the screws.
70 V Line COM HOT
2.5 W (2 k Ω) White Black
100 V Line COM HOT
5 W (2 k Ω) White Black

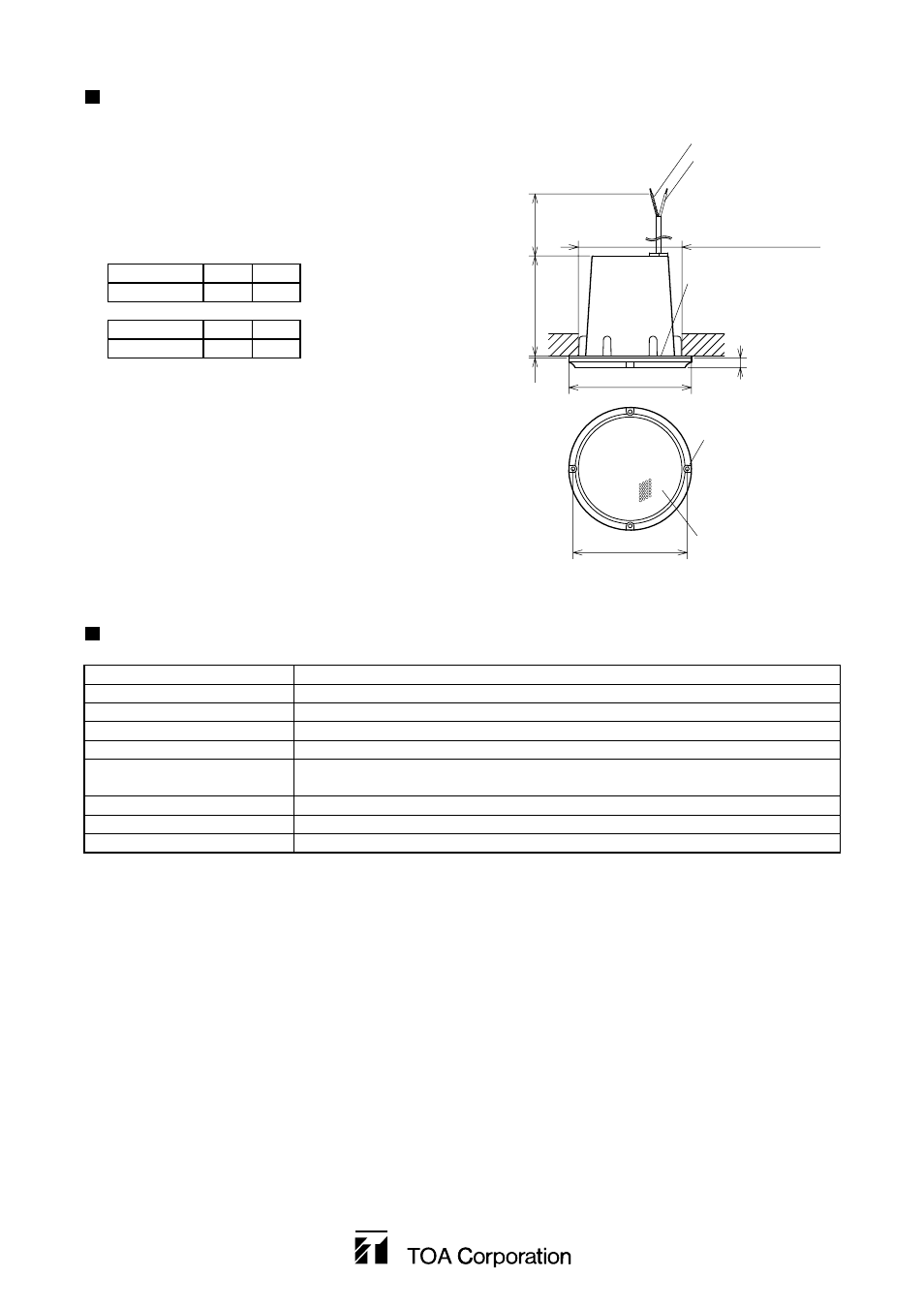

ø98 mm
(mounting hole diameter)
White (COM)
Gasket
ø116 mm
Punched grille
2 mm
93 mm
330 mm
4 – ø3.5 mm
ø108 mm
SPECIFICATIONS
Rated Input 5 W
Rated Impedance 2 k Ω (100 V Line: 5 W, 70 V Line: 2.5 W)
Output Sound Pressure Level 87 dB (1 W, 1 m)
Frequency Response 150 – 20,000 Hz
Operating Temperature Range -20°C to +55°C
Finish
Frame: ABS resin, chrome plating
Punched grille: Stainless steel
Mounting hole diameter 98 mm
Dimensions ø 116 x 110 (d) mm
Weight 620 g
9 mm
Printed in Japan
133-01-343-8C
Note : The design and specifications are subject to change without notice for improvement.
• Accessories
Gasket (chloroprene rubber) .............................. 1
Speaker mounting screw ................................... 4
Pattern paper (ø98 mm hole) ............................. 1
Black
(100 V Line: 5 W, 70 V Line: 2.5 W)
