UNVENTED PROPANE/LP GAS LOG HEATER

VANGUARD FLAME-MAX

®

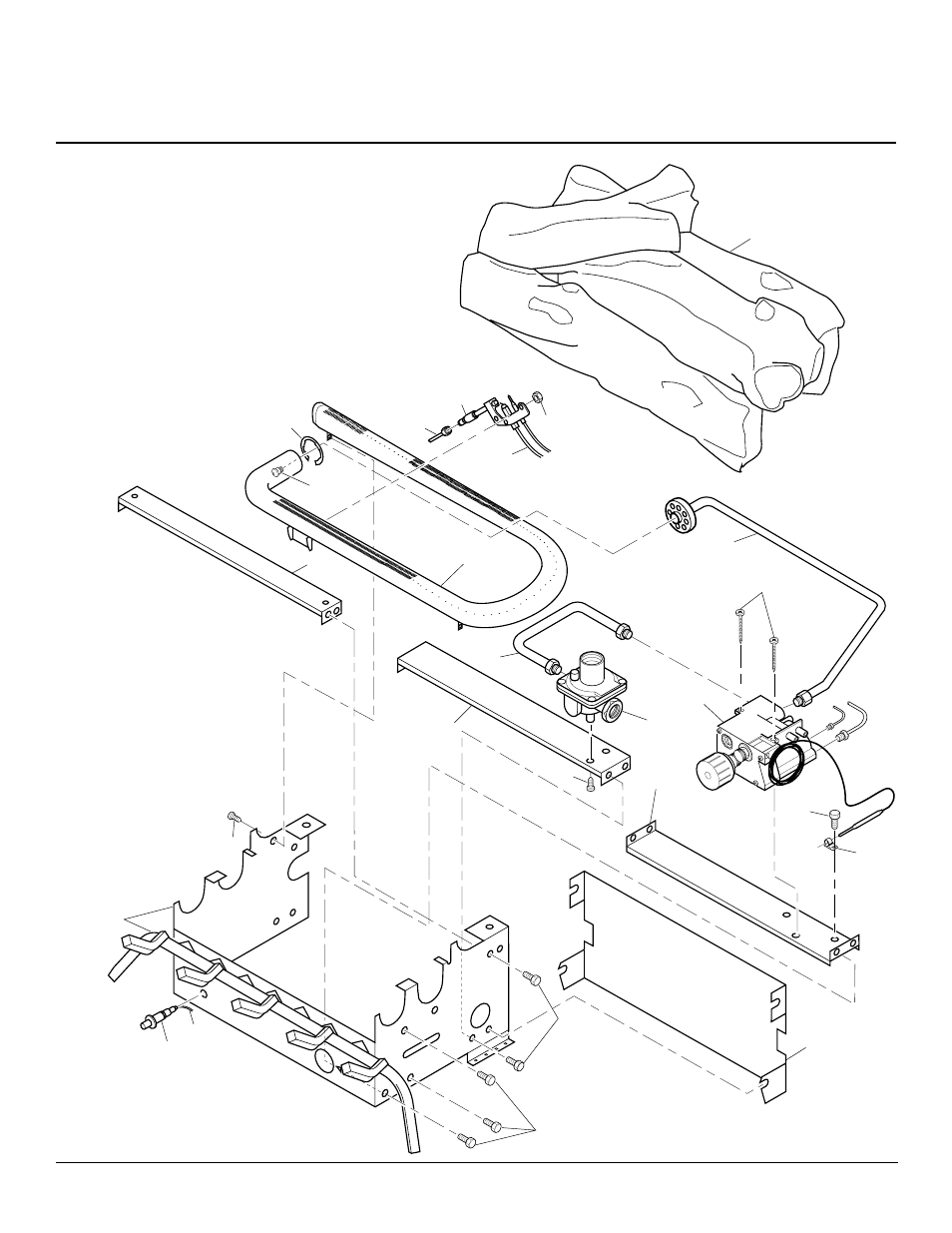

ILLUSTRATED
PARTS
BREAKDOWN

THERMOSTATICALLY-
CONTROLLED MODELS

VYD18PT
VYD24PT
VYD30PT

12

1

2

18

16

17

20

10

9

5

11

4

7

6

19

8

21

13

19

14

19

19

3

15

17

19
