Victory Refrigeration, Inc. Worktop Refrigerators
CHARACTERISTICS VUR-72-SBS VUR-72-SST
Width, Overall 72 72
Depth, Overall 30 30
Height, Overall 39 1 /
2
39 1 /
2
Height, Work Area 35 1 /
2
35 1 /
2
Capacity Net (cubic feet) 19.4 19.4
No. of Full Doors 3 3
No. of Shelves 6 6
Cabinet Voltage 115/60/1 115/60/1
Condensing Unit Voltage 115/60/1 115/60/1
Condensing Unit Size (HP) 1 /
3
1 /
3
Total Amperes 8.8 8.8
NEMA Receptacle Required 5-15R 5-15R
Crated dim. & wts. Ht. Width Depth Lbs.
VUR-72-SBS 48 1 /
2
77 39 1 /
2
400
VUR-72-SST 48 1 / 2 77 39 1 / 2 450
Dimensional tolerance ± 1 / 4 ” Metric dimensions (MM)
Copyright June 2009
Printed in U.S.A. 063009
39.50
(1003) 35.50
(901)
AIR FLOW
2.00
(50)
30.00
(762)
72.12
(1831)
23.94
(608)
14.12
(358)
18.75
(476)
18.75
(476)
18.75
(476)
19.75
(501)

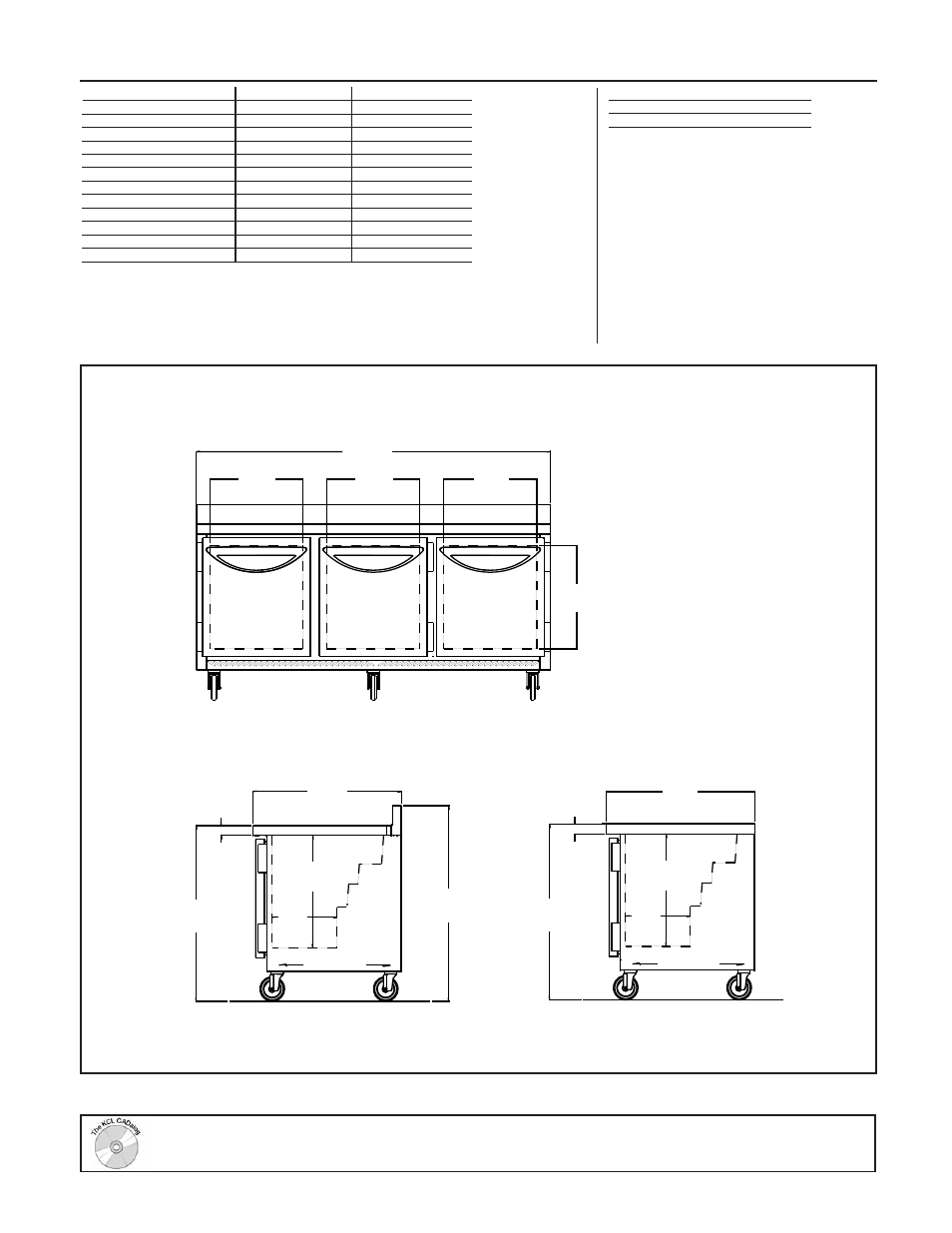

VUR-72-SBS, SST FRONT VIEW
VUR-72-SBS SIDE VIEW VUR-72-SST SIDE VIEW
35.50
(901)
AIR FLOW
2.00
(50)
23.94
(608)
14.12
(358)
30.00
(762)
We reserve the right to
change specifications and
product design without
notice. Such revisions do
not entitle the buyer to
corresponding changes,
improvements, additions or
replacements for previously
purchased equipment.
