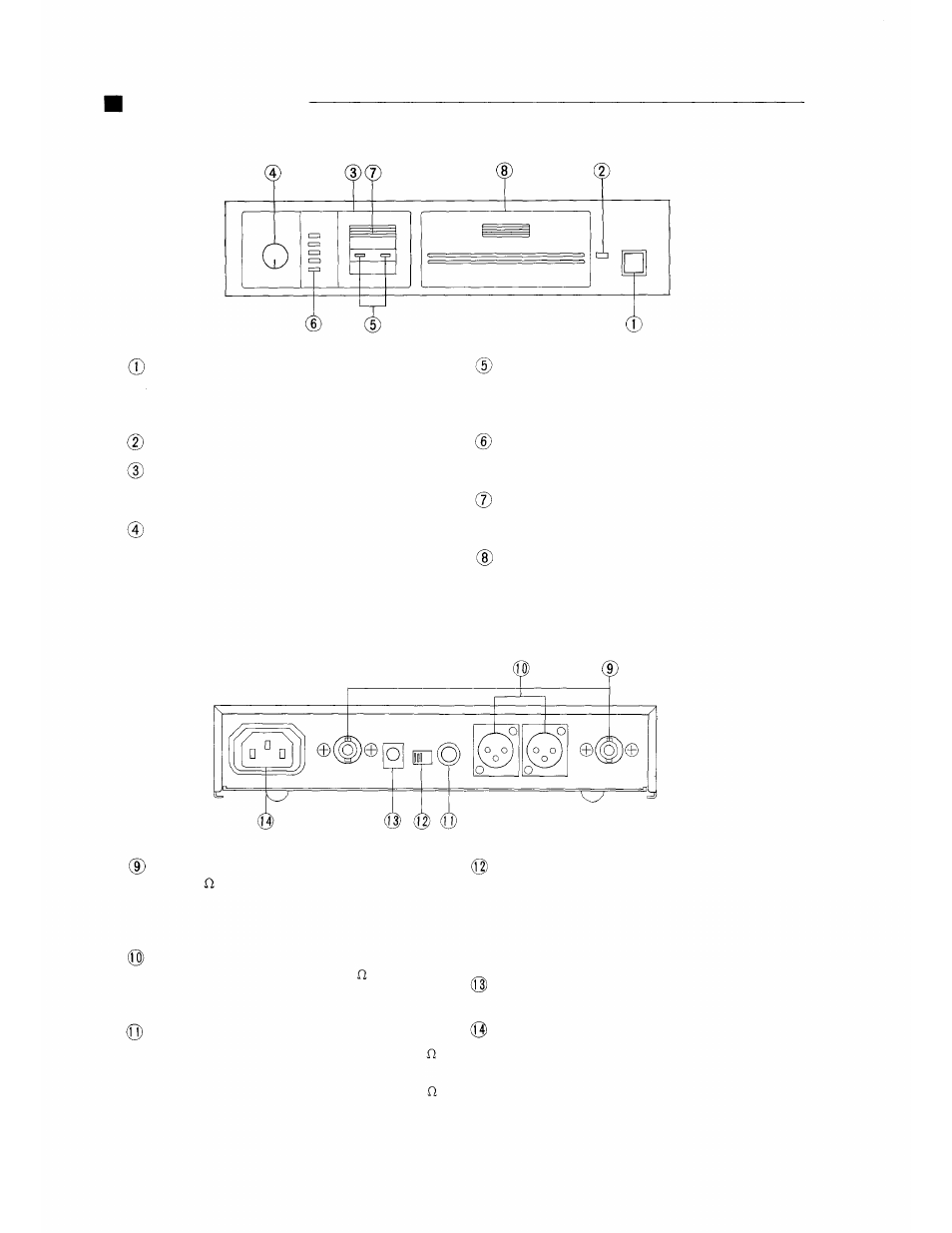

NOMENCLATURE
[Front Panel]
Power Switch
Press this switch to turn power on. To turn power
off, press this switch again. Power Indicator lights
when the power is switched on.
Power Indicator
Tuner Receptacle
Insert an optional tuner module WTU-870 or WTU-
871.
Volume Control
Adjusts the output volume.
Reception Indicator
The left lamp lights when antenna A receives a
signal. The right lamp lights when antenna B
receives a signal.
Level Indicator
Lights in proportion to the intensity of input into a
wireless microphone.
Frequency Label
Attach the label (supplied with the WTU-870 and
WTU-871)to the unit.
Blank Panel
[Rear Panel]
Mixing Output Level Selector
Switches mixing output levels.
Line Output : Connects to the line (AUX) input
terminal of connected component.
Mic Output : Connects to the mic input terminal of
connected component.
DC IN (12V DC)
Power input terminal for external DC power supply.
AC Inlet (3 pins)
Power input terminal for AC power supply. Use the
supplied power cord.
Antenna Connector
(BNC, 75 , Phantom Power Ouptut: 9V DC)
Connects to an optional wireless antenna, and
supplies DC power to the YW-620 having a built-in
booster amplifier.
Audio Output XLR Connector
(–60 dBV, Output Impedance : 600 , Balanced)
Provides individual outputs of built-in tuner
modules.
Mixing Output
Line Output : 0 dBV, Output Impedance : 10k ,
Unbalanced
Mic Output:–60 dBV, output impedance : 600 ,
unbalanced.
Mixes built-in tuner module outputs.
– 3 –
