Physical Description

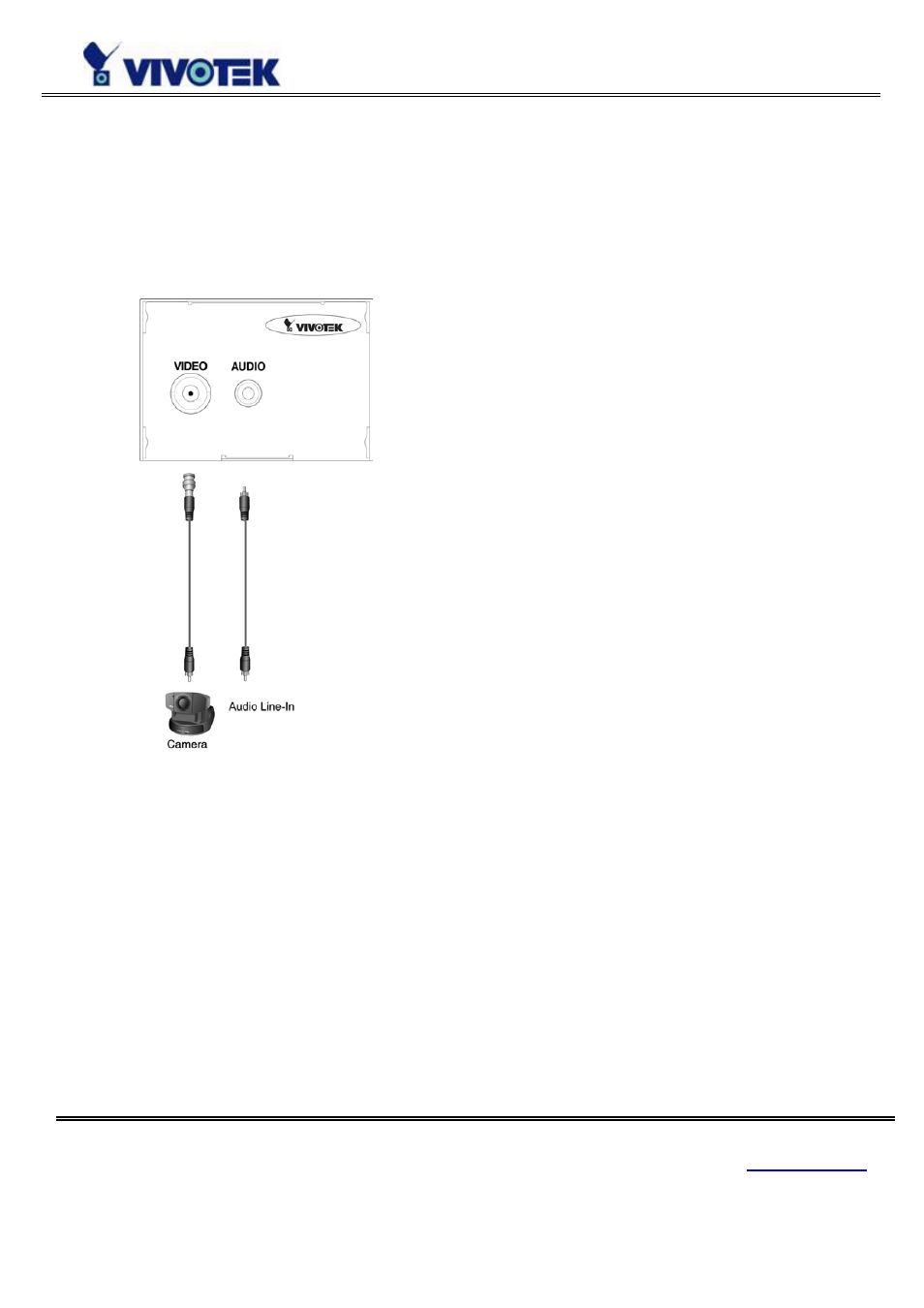

Front Panel
BNC video input
75Ohms resistance video port for connecting an external camera. To ensure video modulation type being
correctly detected, cameras should be attached and powered on before the Video Server is powered on.
RCA audio input
The audio input is connected by RCA connector of mono-audio Line-In signal.
