Victory Refrigeration VPT-119 - Manual (Page 2)

2.16
(55)
56.00
(1422)
56.00
(1422)
13.25
(337)
18.00
(457)
34.50
(876)
2.00 (50)
STAND OFF
FOR AIR FLOW
2.25
(57)
4.00 (101)
44.00
(1117)
35.50 (901)
6.00 (152)
18.00
(457)
34.50
(876)
40.00
(1016)
30.00
(762)
28.00(711)
25.75 (654)
6.50 (165)

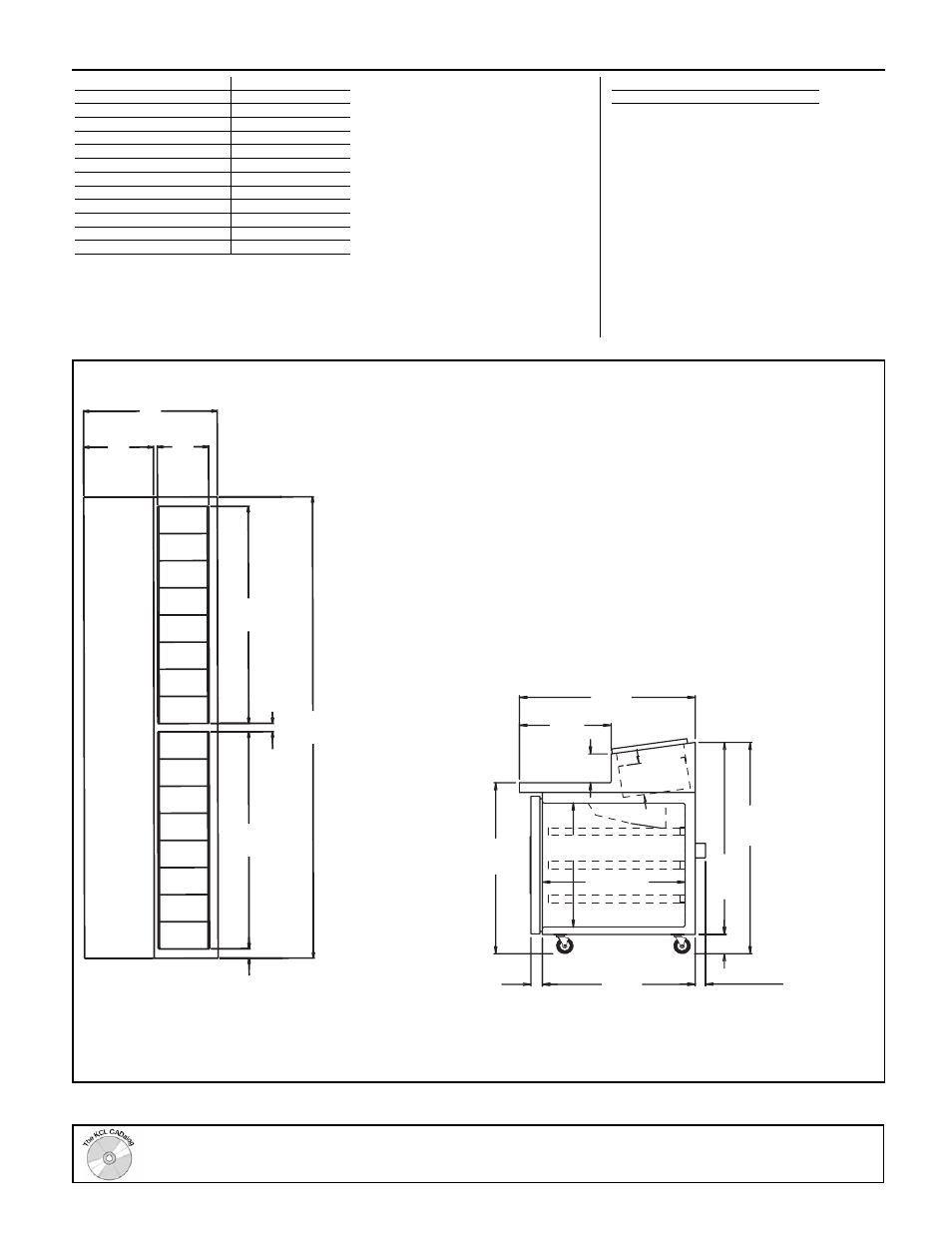

VPT-119 TOP VIEW VPT-119 SIDE VIEW
119.00
(3023)
2.42
(61)
Victory participates in the KCL CADalog, the most current source of CAD symbols for foodservice designers worldwide. Symbols include
standard equipment in plan, side, front and 3-D views, layered for FEDA/FCSI recommended guidelines.
Continuous product development may necessitate specification changes and design without notice.
Victory Refrigeration, Inc. Pizza/Salad/Sandwich Refrigerators
CHARACTERISTICS VPT-119
Width, Overall 119
Depth, Overall* 34 1 / 2
Height, Overall 44
Capacity Net (cubic feet)** 48.7
No. of Full Doors 4
No. of Shelves 8
Pan Rail Opening (inch) (2) 12 x 49
Pan Rail Capacity ( 1 / 3 ) 16
Cabinet Voltage 115/60/1
Condensing Unit Voltage 115/60/1
Condensing Unit Size (HP) 1 /
2
Total Amperes 13.6
* Add 2” for Rear Stand Off
**Base of Cabinet
Crated dim. & wts. Ht. Width Depth Lbs.
VPT-119 49 1 / 2 44 129 790
Dimensional tolerance ± 1 / 4 ” Metric dimensions (MM)
Copyright June 2009
Printed in U.S.A. 063009
NOTE: If cabinet is located
directly against wall an all
around clearance of 2” is
required.
We reserve the right to
change specifications and
product design without
notice. Such revisions do
not entitle the buyer to
corresponding changes,
improvements, additions or
replacements for previously
purchased equipment.
