ViewSonic N2635w
Getting Started

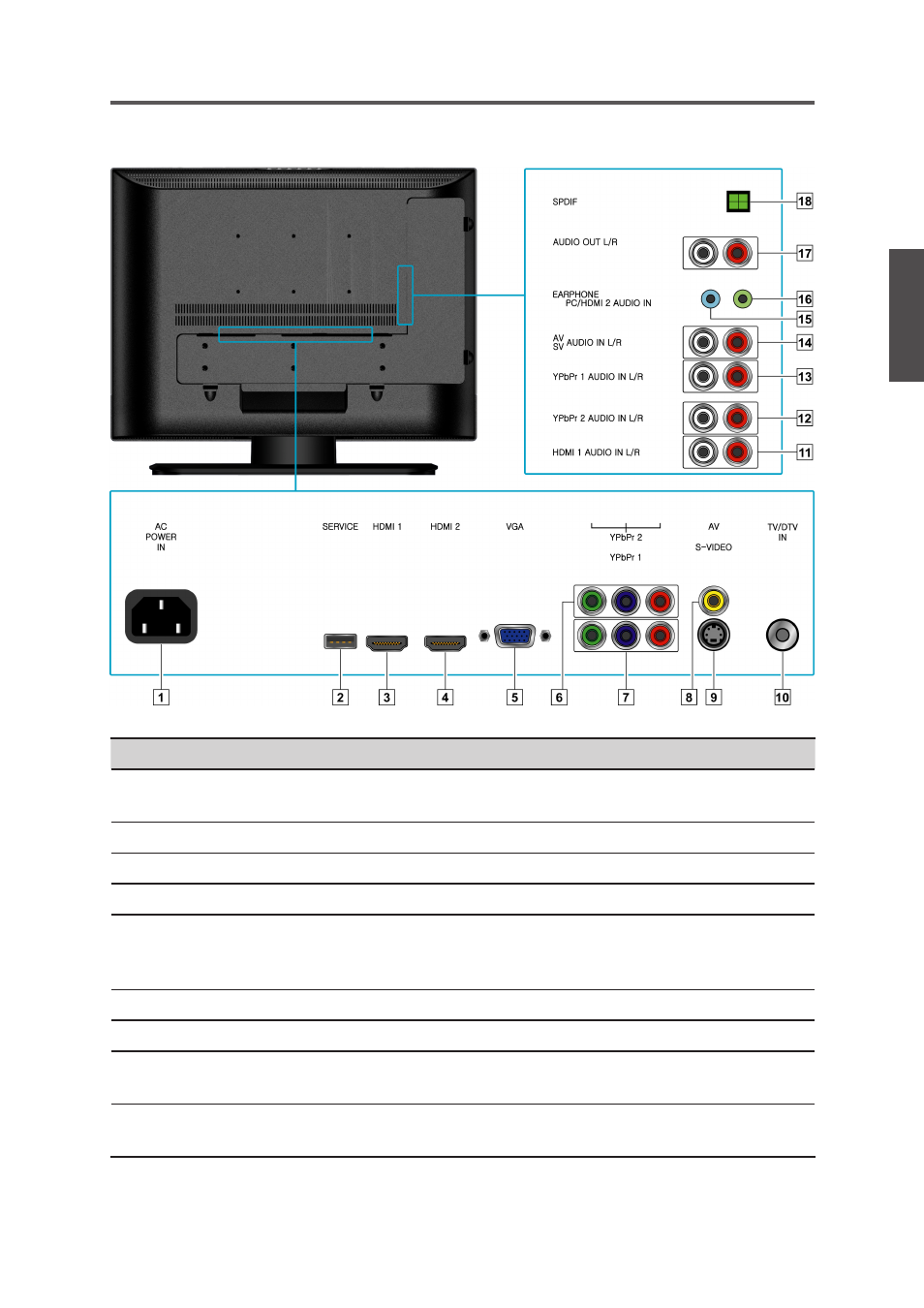

Rear View of the Product
Item Description
1 Power (AC input) Plug-in the supplied AC Power cord and connect to the AC
input power source.
2 Service (USB Terminal) This port is only for firmware upgrade.
3 HDMI 1 Input Terminal Connect this port to the HDMI output of A/V device.
4 HDMI 2 Input Terminal Connect this port to the HDMI output of A/V device.
5 VGA signal input Connect a 15-pin D-sub RGB cable to the RGB output of your
computer and the other end to the RGB input on the rear of the
LCD TV.
6 YPbPr 2 signal input Connect this port to the YPbPr output of A/V device.
7 YPbPr 1 signal input Connect this port to the YPbPr output of A/V device.
8 Composite Video input Connect this jack to the composite video output connectors on
your A/V equipment.
9 S-Video input Connect the S-Video cable from the compatible device to this
connector on the rear panel of the LCD TV.
