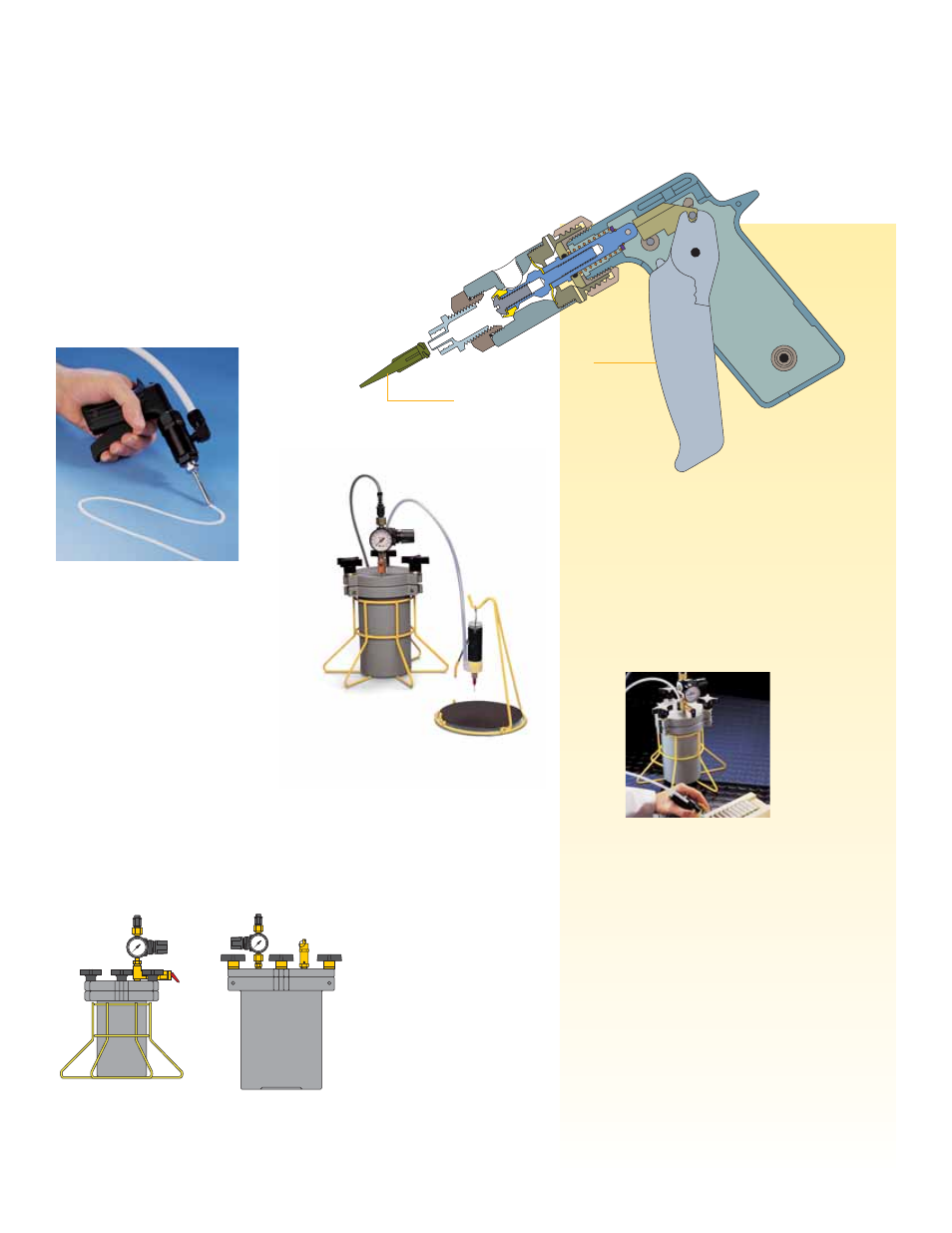

dispense tip
9
Model #615DTH #626DTH
Tank body cast aluminum cast aluminum
Inside diameter 9.7 cm (3.82") 17.3 cm (6.81")
Inside depth 1.75 cm (6.87") 24.8 cm (9.75")
Replaceable liner polyethylene polyethylene
Liner capacity 0.95 liter 3.8 liters
Overall width 17.3 cm (6.81") 28.3 cm (11.14")
Overall height 35.6 cm (14.01") 40.6 cm (15.98")
Regulator & gauge 100 psi (6.9 bar) 100 psi (6.9 bar)
Max. operating
pressure
100 psi (6.9 bar) 100 psi (6.9 bar)
Bottle size accepted 1 pound 1 liter
#615DTL #626DTL
Regulator & gauge 15 psi (1.0 bar) 15 psi (1.0 bar)
Model 615DTH:
1.0 liter tank Model 626DTH:
5.0 liter tank
Tank reservoirs
Each tank is shipped complete
with constant bleed precision
air regulator and gauge, air hose,
liner and fluid feed tubing.
trigger grip
hanger not shown
Key Features
◆ End-of-cycle snuff-back
◆ Ergonomic design
◆ Positive shutoff
◆ Simplified maintenance
725-HL
Designed for dispensing thicker fluids such as epoxies,
fluxes, sealants and wood glues. The 725-HL provides
relatively high flow for heavy-duty operation, without
maintenance or downtime. It features a piston design
for clean, positive shutoff and end-of-cycle snuff-back.
The System
Choosing the right tank is primarily based on two factors:
how much fluid you are dispensing and whether the fluid is
supplied in 1 pound or 1 liter bottles.
The air regulator is selected based on fluid viscosity. Watery
fluids require the 0-1.0 bar (0-15 psi) regulator, while
thicker fluids need the 0-100 psi (0-6.9 bar) regulator.
Since tanks are charged by plant air, we recommend the
five-micron filter regulator to filter contaminants. See
accessories, page 19, for details.
