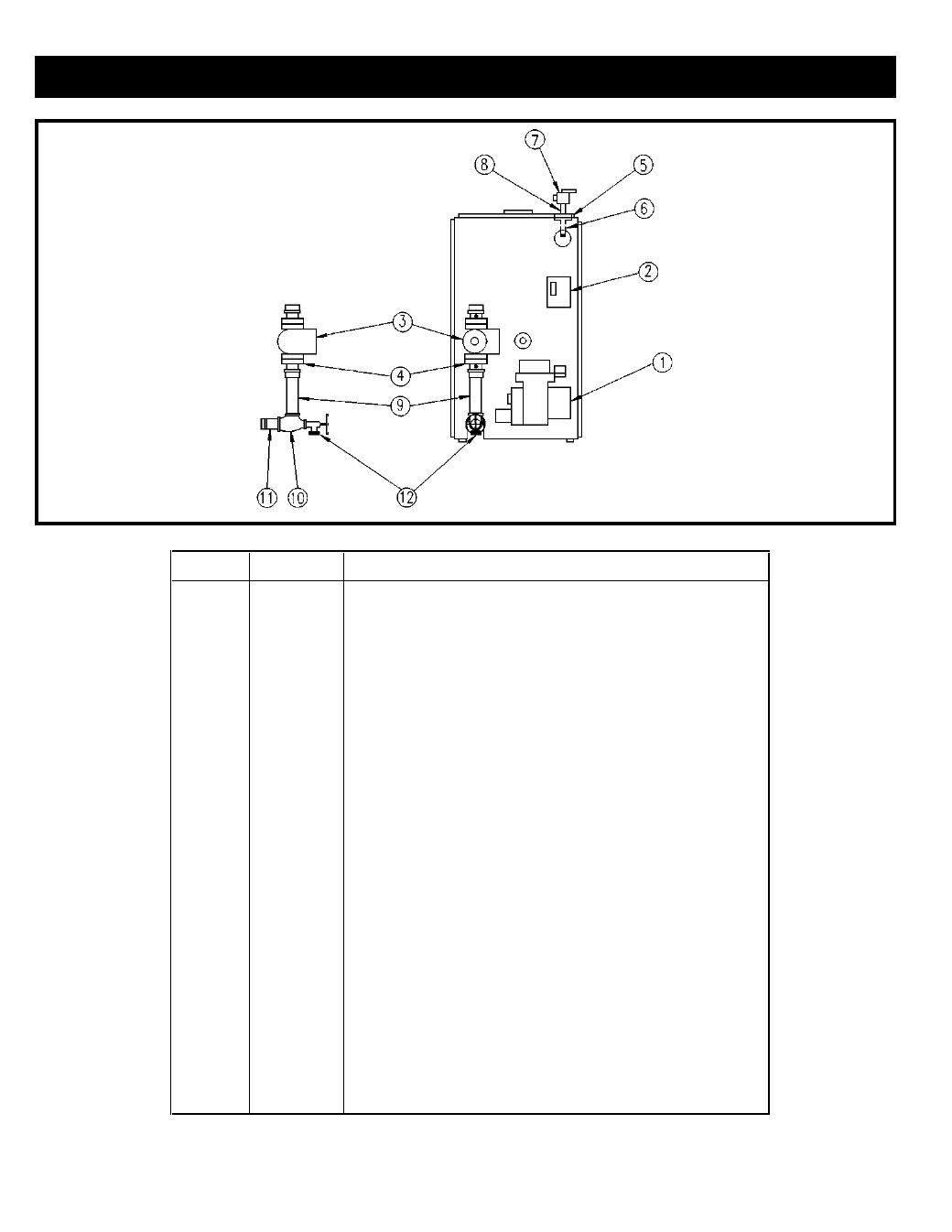

Repair Parts
38
KEY NO. PART NO. DESCRIPTION
1 146-19-201 Beckett AFG Standard Oil Burner (2.00 gph or less)
1 BN08901 Beckett CF375 Standard Oil Burner (2.00 gph or more)
1 1050006 Riello 40 F5 Standard Oil Burner (0.90 to 1.50 gph)
1 146-19-011 Riello 40 F10 Standard Oil Burner (1.60 to 3.00 gph)
1 146-19-202 Beckett AFG Post Purge Oil Burner (2.00 gph or less)
1 146-30-250 Adams G2T Gas Burner Less Head
2 146-62-201 L8151A1045 Triple Acting Aquastat
3 CI-001.03 Taco 007 Circulator (Except Models 7TT, 8T, 9)
3 146-26-062 Taco 0012 Circulator (Models 7TT, 8T, 9)
4 146-26-043 1-1/4" Taco Isolation Valves
4 146-26-063 1-1/2" Flanges
5 1260006 Temperature Pressure Gauge
6 1060002 3/4" x 1/4" Bushing
7 146-22-011 3/4" ASME Relief Valve
8 146-07-202 3/4" x 4-1/2" Nipple
9 146-07-012 1-1/4" x 10" Nipple (Except Models 7TT, 8T, 9)
9 146-07-206 1-1/2" x 12" Nipple (Models 7TT, 8T, 9)
10 151-00-01 1-1/4" x 3/4" x 1-1/4" Tee (Except Models 7TT, 8T, 9)
10 151-00-02 1-1/2" x 3/4" x 1-1/2" Tee (Models 7TT, 8T, 9)
11 146-07-044 1-1/4" x 2-1/2" Nipple (Except Models 7TT, 8T, 9)
11 1310005 1-1/2" x 2-1/2" Nipple (Models 7TT, 8T, 9)
12 146-22-000 3/4" Boiler Drain Valve
† 146-93-204 1-1/2" x 1-1/4" Bushing (Except Models 7TT, 8T, 9)
† 146-30-020 Immersion Well fo Aquastat
† 146-93-201 11/2" x 3/4" Bushings
† 1395005 1-1/2" Sq. Hd. Plugs
† 146-06-020 400º F Black Silicone Rubber Adhesive Sealant (10.3 oz. cartridge)
† 1460001 500º F Red Silicone Rubber Adhesive Sealant (10.3 oz. cartridge)
† - Not Pictured
BOILER CONTROLS AND PIPING
