U-Line 2075 User Manual
Page 15
13
5.

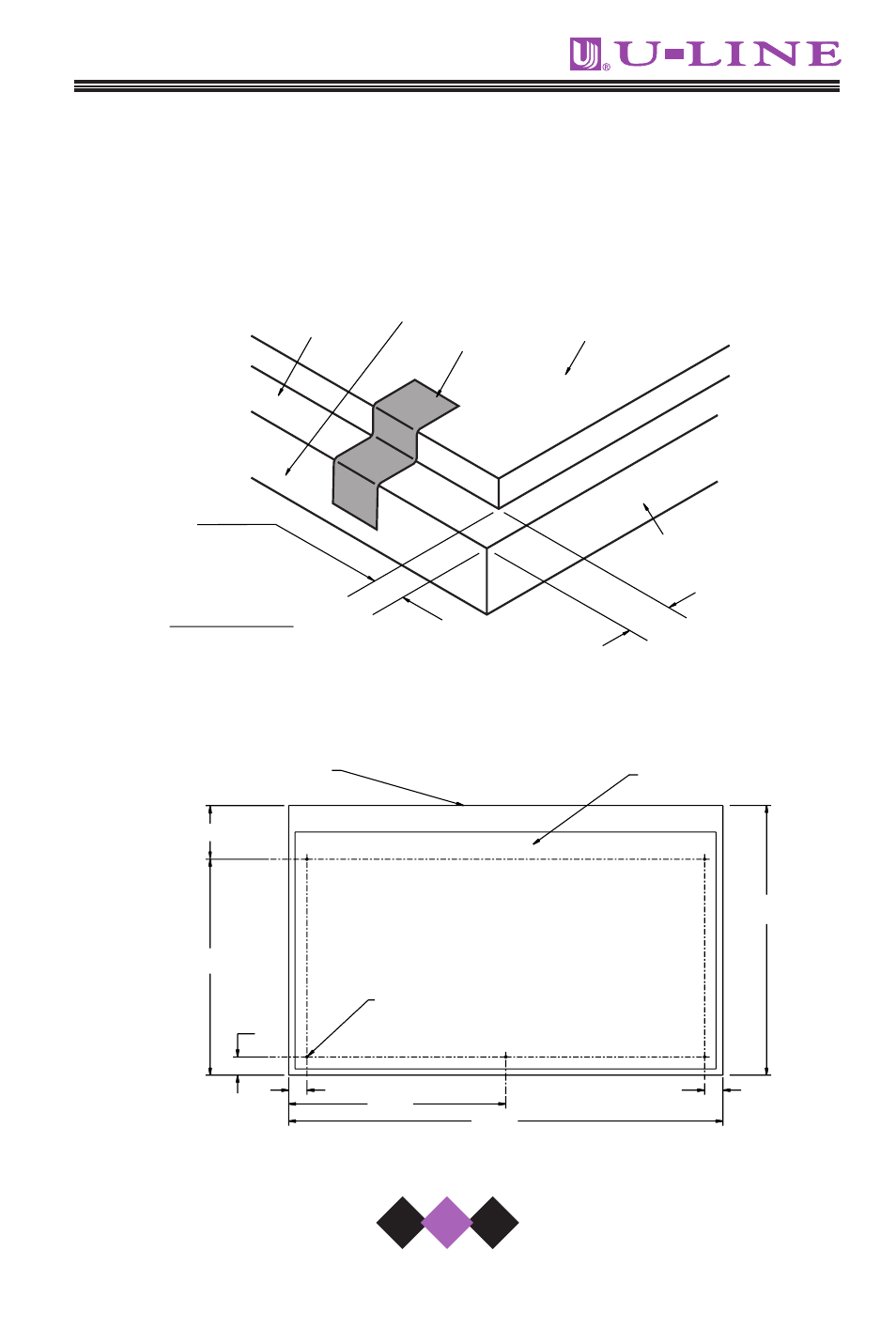

On a clean surface, place the wood panel face down and tape the
existing drawer panel (removed in step 3) on the back of the wood
panel (Figure 10) and drill the five (5) holes (5/32" drill 3/8" deep)
through the coated steel panel and 3/8" into the wood panel
according to the diagram (Figure 11). Remove tape from the draw-
er panel, and enlarge the five holes in the front panel using a .0201"
drill (#7) drill.
Figure 10
Figure 11
COATED STEEL
DRAWER PANEL
BOTTOM OF
WOOD PANEL
BACK OF
WOOD PANEL
NOTE:
For 1/2" gap between
top and bottom panels,
this dimension must be
11/32". For 1/4" gap, this
dimension must be 19/32"
for TOP PANEL ONLY.
TAPE
3/8" BOTH SIDES
DWR_OL_003
SIDE OF
WOOD PANEL
B
1"
1"
C
A
2-15/16"
TOP OF WOOD PANEL
5/32" X 3/8" DEEP
5 PLACES
COATED STEEL
DRAWER PANEL
23-3/4"
11-7/8"
DWR_OL_004
