LOCATING THE HEATER
AS A LOCATION IS SELECTED,
KEEP THE FOLLOWING IN MIND:
1. The chimney connection should be as
possible. The heater must have its own chim-
ney. Do not connect this unit to a chimney flue,
serving another appliance. If there is no chim-
ney near where you wish to place the heater,
you can use a UL 103HT Residential Type and
Building Heating Appliance Chimney (Fig. 5
&6).
2. Place the heater on solid masonry or solid
concrete. When the heater is used on a com-
bustible floor protector of one layer of 3/8"
millboard having a thermal conductivity of
K=0.84 BTU in./ft. 2 hr. Deg. F with 28-gauge
sheet metal or a UL Listed floor protector. Have
the floor protector extend 16" beyond the door
side of the heater and under the connector pipe
in the back.

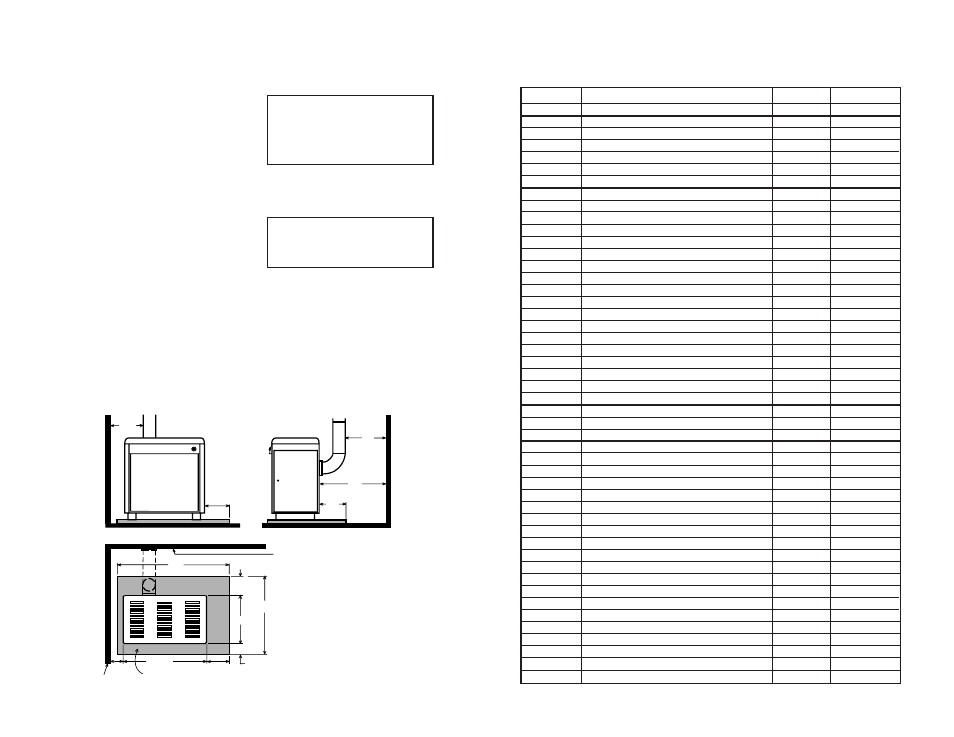

3. Check Figures 2, 3, and 4. Be sure you have
the clearances shown from the heater and the
connector pipe to combustible surfaces. If you
have a solid brick or stone wall behind your
heater, you can place the heater as close as
you wish to the wall. If the wall is only faced with
brick or stone, treat it as a combustible wall.
NOTE: BEFORE FIRING
HEATER
Slide firebricks toward the rear
so no gaps remain between
them.
CAUTION:
Keep furnishings and other
combustible materials away
from the heater.
4
REPAIR PARTS LIST - MODEL 2827 (SEE PAGE 18)
AUTOMATIC COAL BURNING CIRCULATOR
17
Fig. 2
Fig. 4
Key No. Description Qty. Part No.
1 Shaker 1 40045
2 Second Heat Shield Assembly 1 22030
3 Heat Shield 1 22110
4 Draft Damper Hinge Pin 1 17200
5 Draft Damper Frame 1 40075
* 1/4-20 x 3/4 MS 4 83086
* 1/4-20 Kep Nut 4 83250
6 Base 1 67859
7 Draft Control Damper 1 67132
8 Clip 1 83818
9 Coal Grate 1 40101
10 Grate Support 2 22536
* 1/4-20 x 3/4 MS 8 83086
* Nut 1/4-20 Kep 8 83250
11 Firebrick 10 89066
12 Firebox 1 67858
13 Front & Back Liner 3 40100
14 Flue Collar 1 40246
15 Flue Collar Gasket 1 88032
16 Firebrick Retainer 2 40132
* 1/4-20 x 1 6 83227
* 1/4-20 Kep Nut 6 83250
* Smoke Curtain Bracket 2 22171
* 1/4-20 Kep Nut 2 83250
* Machine Screw (1/4-20 x 3/4 PH) 2 83086
17 Hinge Pin 1 83872
18 Smoke Curtain 1 22090
19 Coal Grate Frame 1 40102
20 Feed Door Assembly 1 68605
21 1/4-20 Kep Nut 2 83250
22 Draft Wheel 1 40056
23 Machine Screw (1/4-20 x 1) 1 83227
24 Door Handle 2 40091
25 Wood Handle 1 89523
26 Feed Door Rope Gasket 45" 88033
27 Ash Door Assembly 1 67781
28 Two-Step Latch 1 22434
29 Washer, Flat 2 83045
30 1/4-20 Kep Nut 2 83250
31 Ash Door Gasket 29" 88033
32 Latch 1 22108
33 Ash Pan 1 67444
* 1/4-20 x 3/4 MS, SL, FL,2 6 83086
* 1/4-20 Kep Nut 6 83250
34 Latch Spacer 1 21467
35 Hinge Pin (Long) 1 83114
* NOT SHOWN
Fig. 3
25"
35"
16"
26"
54"
19 1/4"
36"
4 3/4"
NOTE: DASHED LINES SHOW
STRAIGHT UP AND THROUGH
THE WALL INSTALLATION
17"
32 1/4"
16"
FLOOR PROTECTOR
(TOP VIEW) SIDEWALL
NON-COMBUSTIBLE
CONSTRUCTION IN
ACCORDANCE WITH
NFPA 211
12"
12"
WONDERCOAL
