Outdoor Charcoal Barbecue Grill Model No. NBC1402
Contact 1.800.762.1142 for assistance. Do not return to place of purchase.
page no.
5

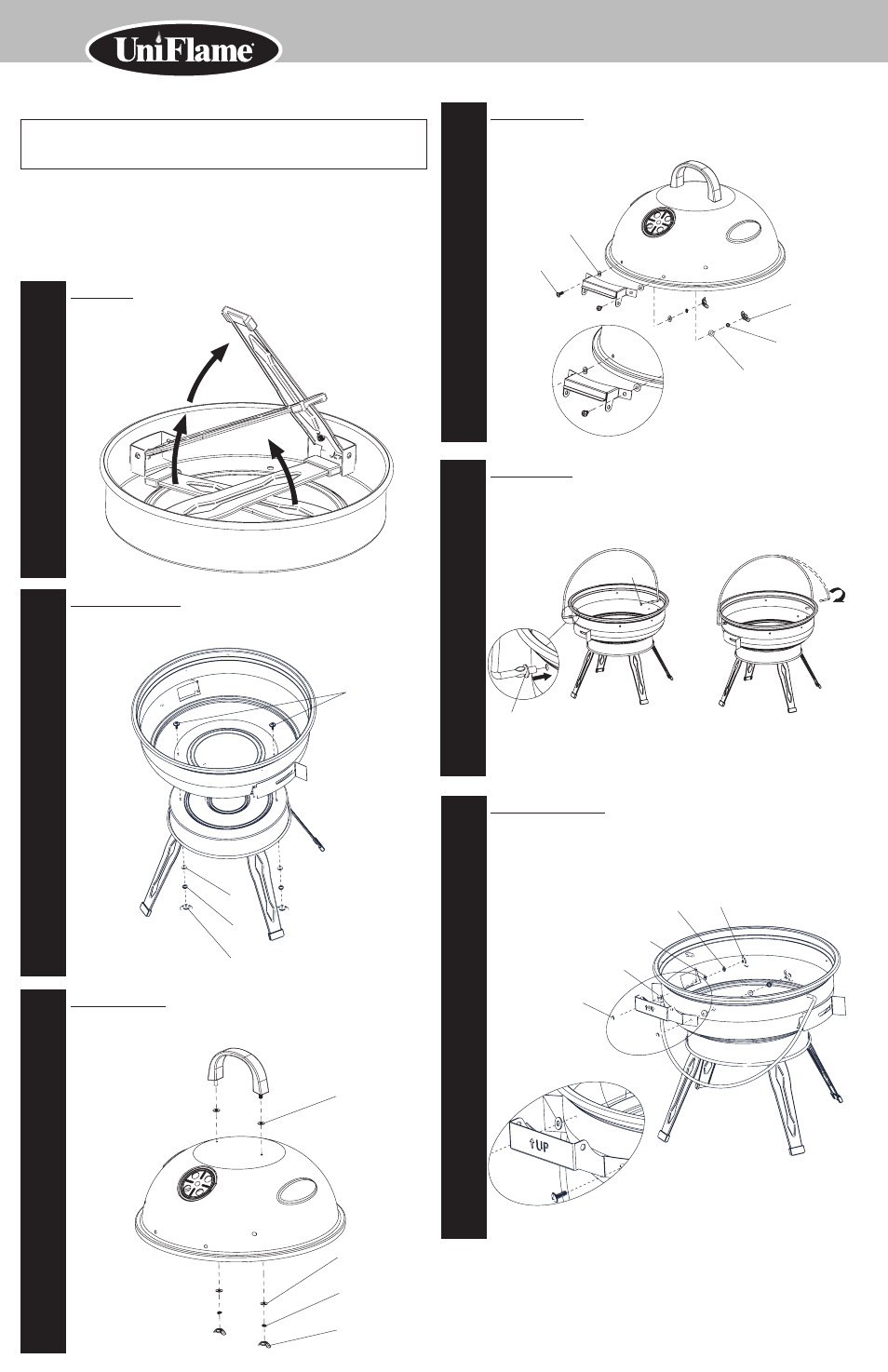

Step
1
Unfold legs
Step
2
Attach bottom bowl
Attach bottom bowl to base using 2 sets of screws (A), small washers (D), small
lock washes (G), and small wing nuts (B).
A
B
G
D
Step
3
Attach lid handle
Attach lid handle to lid using 2 sets of heat resistant washers (F), large washers (E),
large lock washers (H) and large wing nuts (C).
C
E
H
F
Step
4
Attach top hinge
Attach top hinge to lid using 2 sets of screws (A), heat resistant washers (F), small
washers (D), small lock washers (G) and small wing nuts (B).
G
D
B
A
F
TOP
TOP
Step
5
Attach handle
Insert handle into openings on side of bottom bowl using large washer (E).
E
E
Step
6
Attach bottom hinge
Attach bottom hinge to bottom bowl using 2 sets of screws (A), heat resistant
washers (F), small washers (D), small lock washers (G), and small wing nuts (B).
G
A
F
D
B
Assembly Instructions
DO NOT RETURN PRODUCT TO STORE.
For assistance call
1.800.762.1142 toll free. Please have your owner’s manual and serial
number available for reference.
For Easiest Assembly:
• To avoid losing any small components or hardware, assemble your product on a hard level
surface that does not have cracks or openings.
• Clear an area large enough to layout all components and hardware.
• When applicable, tighten all hardware connections by hand first. Once the step is
completed, go back and fully tighten all hardware.
• Follow all steps in order to properly assemble your product.
