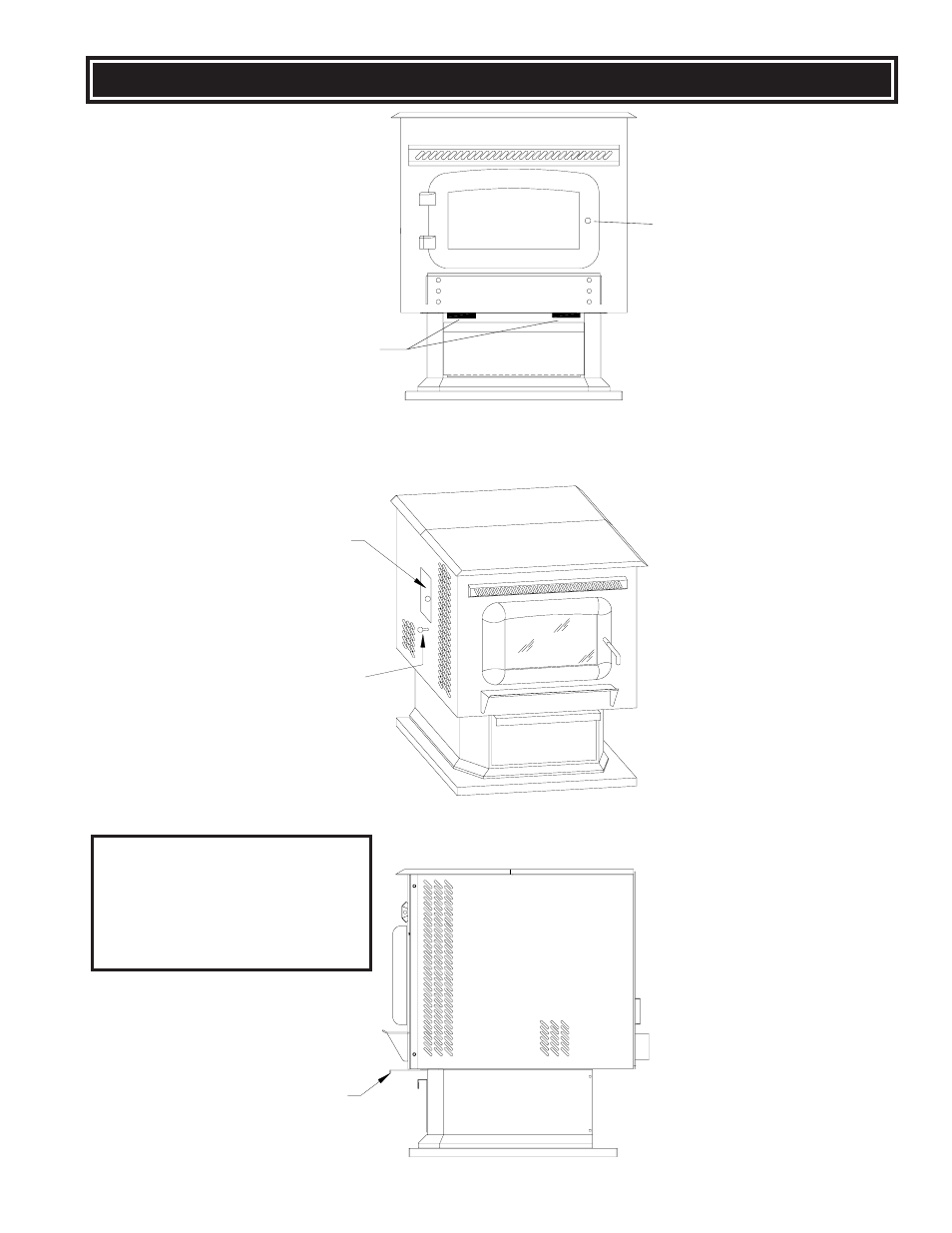

STOVE CONTROLS
Adjustable Door Handle
lifts up and turns left to open.
Ash Dump Shutoff
Pull out to empty ashes out of
the firebox area and back heat
exchanger area. Make sure to
push all the way in when done.
Front View
Left/Front View
Circuit Board Control Panel
Open door to access the controls
Manual Draft Adjustment
Slide in or out to adjust the
amount of draft flowing through
the firebox.
Ash Dump Shutoff
Pull out to empty ashes out of
the firebox area and back heat
exchanger area. Make sure to
push all the way in when done.
(Shown pulled out).
Right Side View
Service Note:
For service needed inside the cabinet,
remove the two screws retaining the
side(s). Then open both of the hopper
lids and swing the side panel(s) open.
BE SURE that the unit is unplugged from
the power source before servicing.
