Univex 96043004400 - Manual (Page 44)

44
TRACTOR - - MODEL NUMBER 2348LS (96043004400), PRODUCT NO. 960 43 00-44

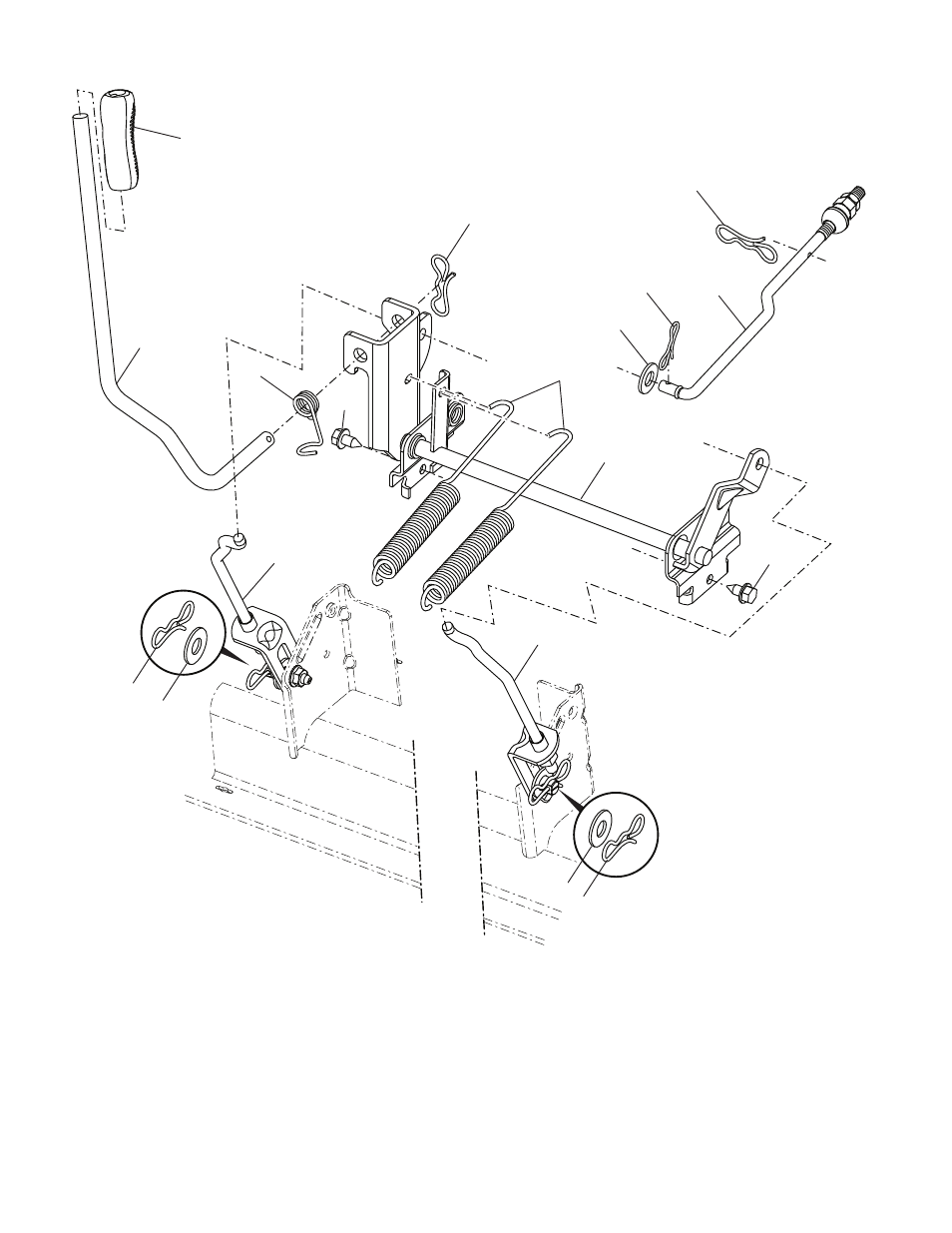

MOWER LIFT
7
3
87
10 88
2
89
90
87
98
97
97
91
lift-tex_3
91
89
87
89
87
2 532 19 52-23 Shaft Asm., Lift
3 532 19 52-31 Lever Asm., Lift RH
7 532 41 15-55 Grip, Lever
10 532 19 63-14 Spring Torsion
87 532 19 42-09 Pin Cotter 7/16 Bow Tie Lock
88 532 41 07-10 Spring Lift Assist
89 819 19 19-12 Washer Clear Zinc
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
90 532 19 42-08 Pin Cotter 5/16 Bow Tie Lock
91 532 19 51-81 Link Lift Susp Mower Rear
97 817 00 06-12 Screw 3/8-16 x 3/4
98 532 19 52-64 Link Asm. Susp. Front Mower
KEY PART
NO. NO. DESCRIPTION
